Wastewater/Activity/PacpInspection/1.0Aug 9, 2018, 08:03 AM
18 0664_18 0663 _09082018_011252.mp4
- Date
- 08/09/2018
- W/O
- 717121
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00696
- PipeID
- P14513
- Time
- 1:03 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5975
- Sewer Name
- 18 PHOEBE AVENUE TRUNK
- City
- LA MIRADA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_718121_TV18169_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 18 0664
- Downstream MH
- 18 0663
- Dir. of Survey
- Downstream
- Length Surveyed
- 248.4 ft.
- Total Length
- 248.4 ft.
- Structural Index
- 3
- Structural Quick
- 3B2A
- Structural Rating
- 70
- O&M Index
- 2
- O&M Quick
- 2G00
- O&M Rating
- 84
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 154
Observation photos (4)
1.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
34.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

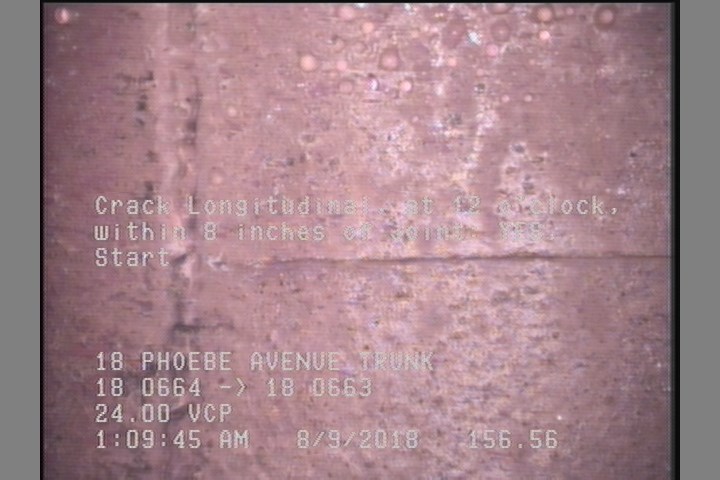

156.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
165.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 198.4 | TFC | — |
| 243.7 | CM | — |
| 0 | AMH | 18 0664 |
| 165.4 | CM | — |
| 243.7 | DAE | — |
| 248.4 | AMH | 18 0663 |
| 102.3 | TF | — |
| 97.5 | TF | — |
| 45.7 | CL | — |
| 34.8 | DAE | — |
| 202.7 | TF | — |
| 165.4 | CL | — |
| 156.6 | CL | — |
| 0 | MWL | — |
| 1.1 | CL | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC364739
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-09T01:03:01-07:00
