Wastewater/Activity/PacpInspection/1.0Aug 9, 2018, 06:23 AM
18 0674_18 0673 _08082018_233351.mp4
- Date
- 08/08/2018
- W/O
- 718121
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00696
- PipeID
- P14523
- Time
- 11:23 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5975
- Sewer Name
- 18 PHOEBE AVENUE TRUNK
- City
- LA MIRADA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_718121_TV18169_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0674
- Downstream MH
- 18 0673
- Dir. of Survey
- Downstream
- Length Surveyed
- 128 ft.
- Total Length
- 128 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 50
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 56
Observation photos (3)

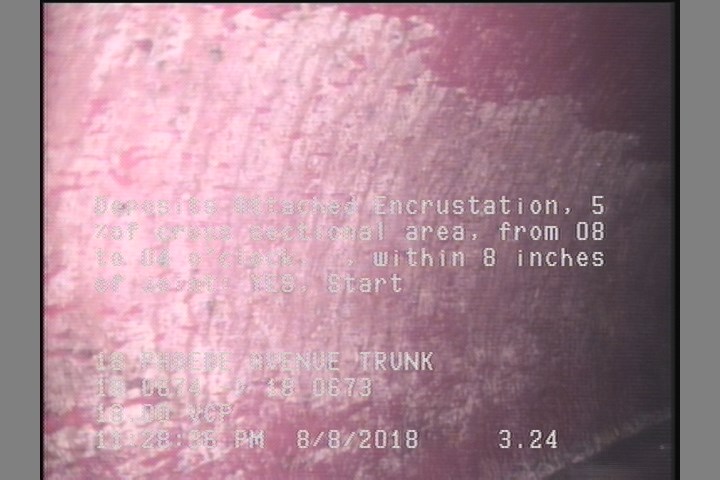

3.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

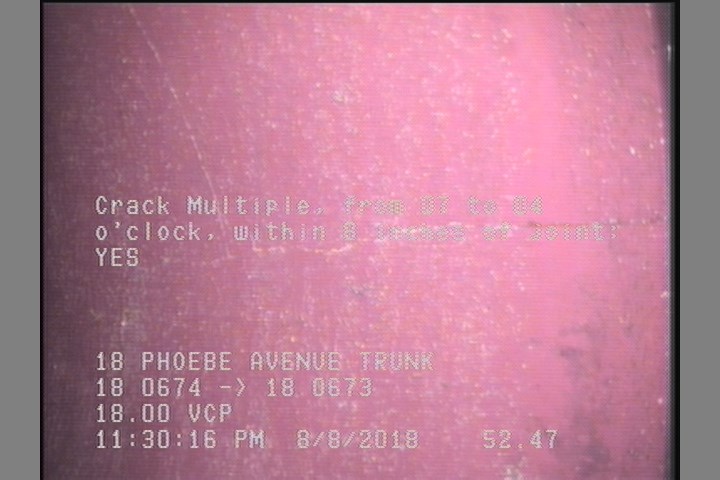

52.5 ft. - Crack Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES

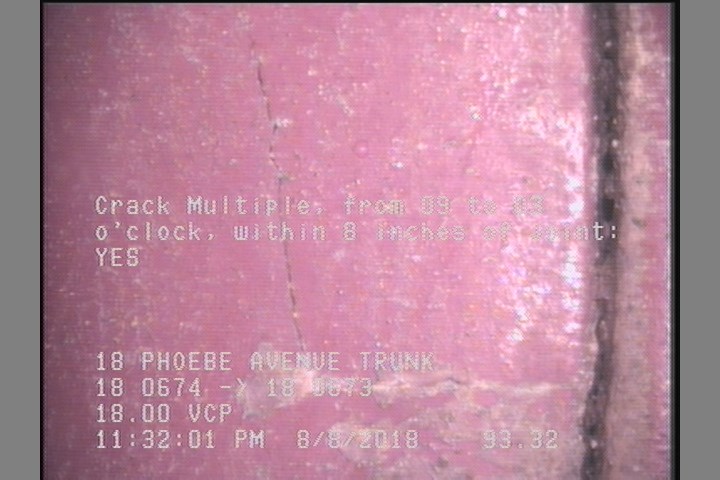

93.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 128 | AMH | 18 0673 |
| 3.2 | DAE | — |
| 128 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 93.3 | CM | — |
| 0 | MWL | — |
| 128 | MGO | CONNECTION AT MH 12 O'CLOCK |
| 52.5 | CM | — |
| 0 | MWM | — |
| 128 | DAE | — |
| 74.7 | TFC | — |
| 0 | AMH | 18 0674 |
Properties (4)
- additional_info
- SC364739
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-08T23:23:15-07:00
