Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 7, 2018, 06:44 AM

  • 01 1015_01 1014_06082018_235655.mp4

Date
08/06/2018
W/O
717708
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00223
PipeID
P01860
Time
11:44 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5969
Sewer Name
01 VERNON EXTENSION RELIEF TRUNK
City
VERON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
04
Purpose
Routine Assessment
Project
WO_717708_TV01228_AUG2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 1015
Downstream MH
01 1014
Dir. of Survey
Downstream
Length Surveyed
161.6 ft.
Total Length
161.6 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
99
O&M Index
2
O&M Quick
2D00
O&M Rating
46
Overall Index
3
Overall Quick
—
Overall Rating
145
Pipe schematic from manhole 01 1015 to 01 1014
MH: 01 1015MH: 01 1014downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 10150 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK2.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.8 ft. MGO - General Observation - MAG COAT47.7 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start59.7 ft. SAP - Surface Aggregate Projecting, at 03 o'clock, within 8 inches of joint: YES161.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish161.6 ft. DSZ - Deposits Settled Other, 30 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish161.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK161.6 ft. AMH - Downstream Manhole, Survey Ends - 01 1014

Observation photos (4)

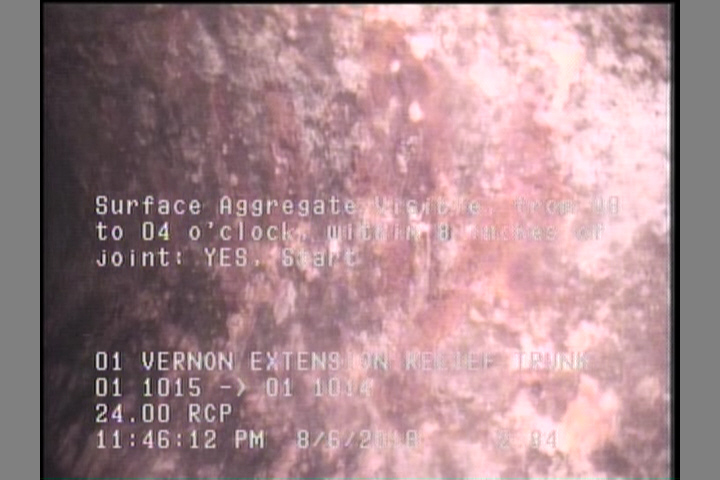

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Observation - MAG COAT

    2.8 ft. - General Observation - MAG COAT

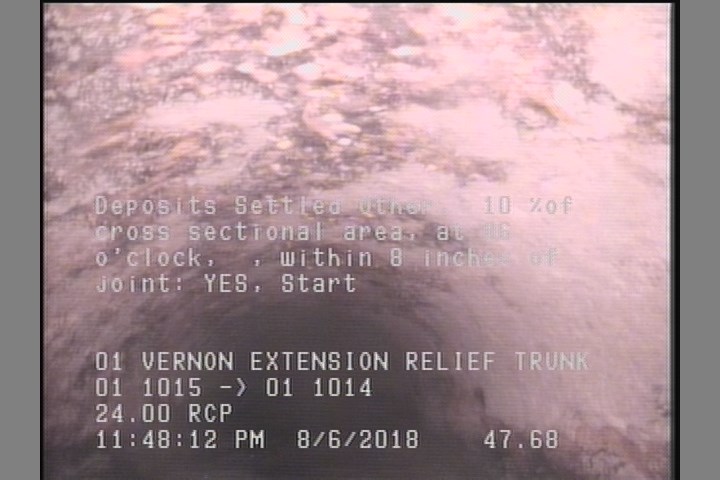

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    47.7 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

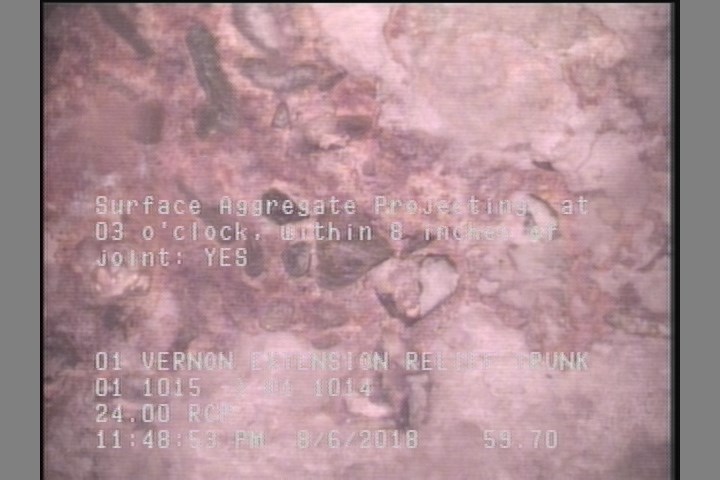

  • Surface Aggregate Projecting, at 03 o'clock, within 8 inches of joint: YES

    59.7 ft. - Surface Aggregate Projecting, at 03 o'clock, within 8 inches of joint: YES

All inspections of P01860Work order 717708

Observations (13)

DistanceCodeObservation
0MWL—
161.6SAV—
59.7SAP—
0MGOCONNECTION AT MH 3 O'CLOCK
161.6DSZ—
0MWM—
161.6MGOCONNECTION AT MH 9 O'CLOCK
2.8SAV—
161.6AMH01 1014
2.8MGOMAG COAT
47.7DSZ—
0AMH01 1015
0MGOCONNECTION AT MH 9 O'CLOCK

Properties (4)

additional_info
SC364732
custom_field_two
3
customer
LACSD
datetime
2018-08-06T23:44:09-07:00
