Wastewater/Activity/PacpInspection/1.0Jun 7, 2018, 05:32 AM
18 0919_18 0918 _06062018_223847.mp4
- Date
- 06/06/2018
- W/O
- 707152
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00709
- PipeID
- P14771
- Time
- 10:32 PM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5641
- Sewer Name
- 18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_707152_TV18184_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0919
- Downstream MH
- 18 0918
- Dir. of Survey
- Downstream
- Length Surveyed
- 19.3 ft.
- Total Length
- 19.3 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

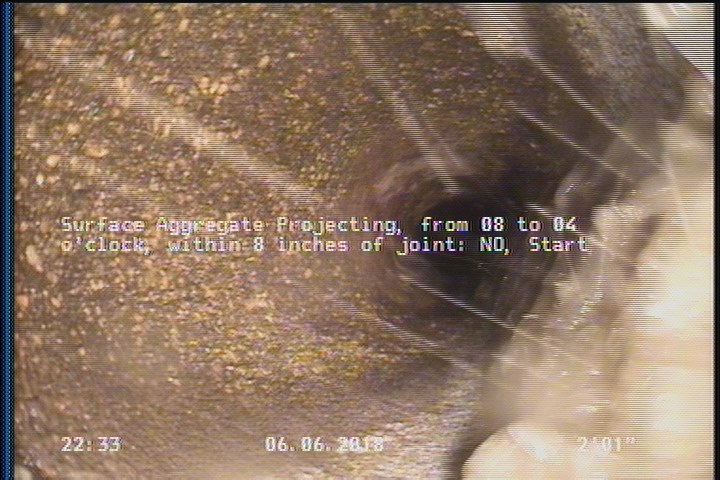

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

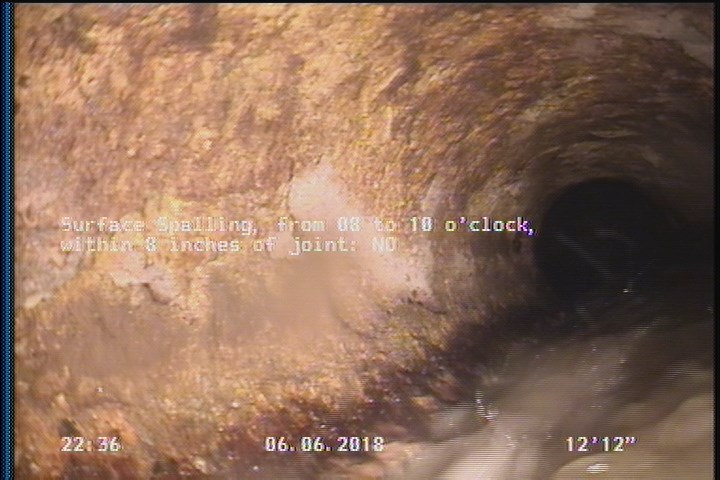

13 ft. - Surface Spalling, from 08 to 10 o'clock, within 8 inches of joint: NO
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 19.3 | SAP | — |
| 19.3 | AMH | 18 0918 |
| 0 | MWM | — |
| 0 | AMH | 18 0919 |
| 0 | MGO | CONNECTION AT MH 3 OCLOCK |
| 13 | SSS | — |
| 2.1 | SAP | — |
Properties (4)
- additional_info
- SC359196
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-06T22:32:14-07:00
