Wastewater/Activity/PacpInspection/1.0Jul 26, 2018, 10:39 AM
05 1393_05 1392 _26072018_035241.mp4
- Date
- 07/26/2018
- W/O
- 718157
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00487
- PipeID
- P06614
- Time
- 3:39 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5798
- Sewer Name
- 05 MONETA TRUNK
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_718157_TV05336_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 05 1393
- Downstream MH
- 05 1392
- Dir. of Survey
- Downstream
- Length Surveyed
- 272.3 ft.
- Total Length
- 272.3 ft.
- Structural Index
- 4
- Structural Quick
- 4J00
- Structural Rating
- 216
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 218
Observation photos (2)

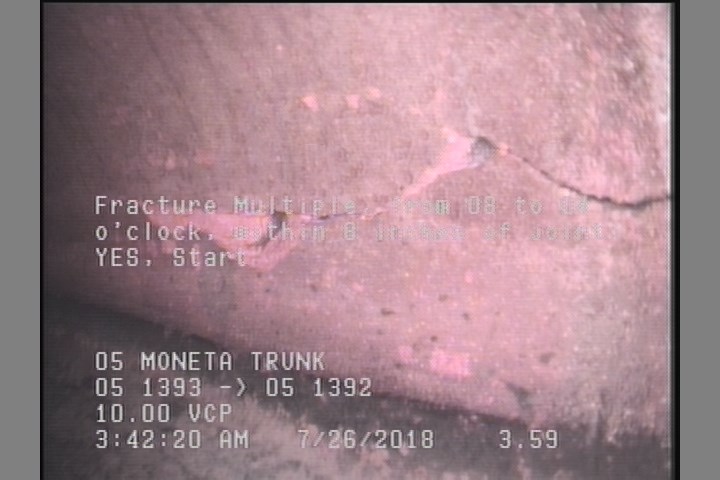

3.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

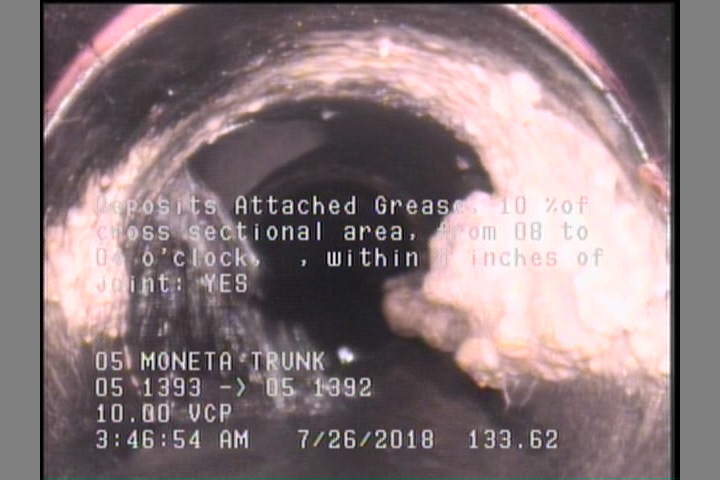

133.6 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 05 1393 |
| 134.1 | TFA | — |
| 272.3 | AMH | 05 1392 |
| 3.6 | FM | — |
| 36.5 | TF | — |
| 272.3 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 133.6 | DAGS | — |
| 184.2 | TFC | — |
| 234.2 | TFC | — |
| 272.3 | FM | — |
| 0 | MWL | — |
| 272.3 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 79.6 | TFC | — |
Properties (4)
- additional_info
- SC364710
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-26T03:39:59-07:00
