Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 1, 2018, 09:06 AM

  • 19 0275_19 0274 _01082018_022732.mp4

Date
08/01/2018
W/O
718119
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00732
PipeID
P15245
Time
2:06 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5957
Sewer Name
19 209TH STREET TRUNK
City
LAKEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
07
Purpose
Routine Assessment
Project
WO_718119_TV19069_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
19 0275
Downstream MH
19 0274
Dir. of Survey
Downstream
Length Surveyed
405.6 ft.
Total Length
405.6 ft.
Structural Index
4
Structural Quick
4O31
Structural Rating
323
O&M Index
2
O&M Quick
3122
O&M Rating
9
Overall Index
4
Overall Quick
—
Overall Rating
332
Pipe schematic from manhole 19 0275 to 19 0274
MH: 19 0275MH: 19 0274downstream0 ft. AMH - Upstream Manhole, Survey Begins - 19 02750 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 10 %of cross sectional area2.6 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: NO3 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start34.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"43.2 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"43.2 ft. RFC - Roots Fine Connection, from 02 to 03 o'clock43.2 ft. RML - Roots Medium Lateral, at 02 o'clock, 35 %, within 8 inches of joint: NO62 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"83 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"85.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"134.5 ft. RFL - Roots Fine Lateral, at 02 o'clock134.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"137.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"182.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"186.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"234.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"237.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"282.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"285.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"333.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"336.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"382.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"384.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"391.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start402.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish402.1 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish405.6 ft. AMH - Downstream Manhole, Survey Ends - 19 0274

Observation photos (4)

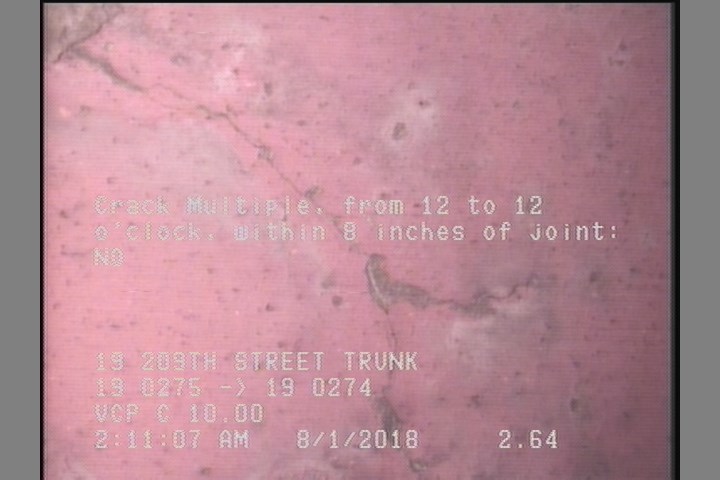

  • Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: NO

    2.6 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: NO

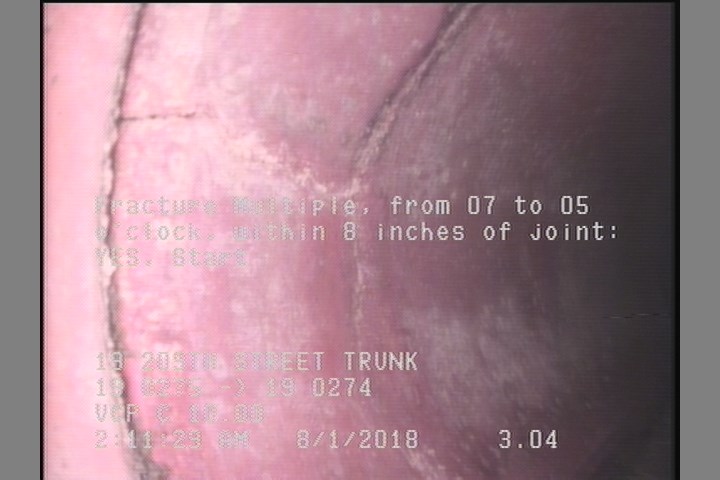

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

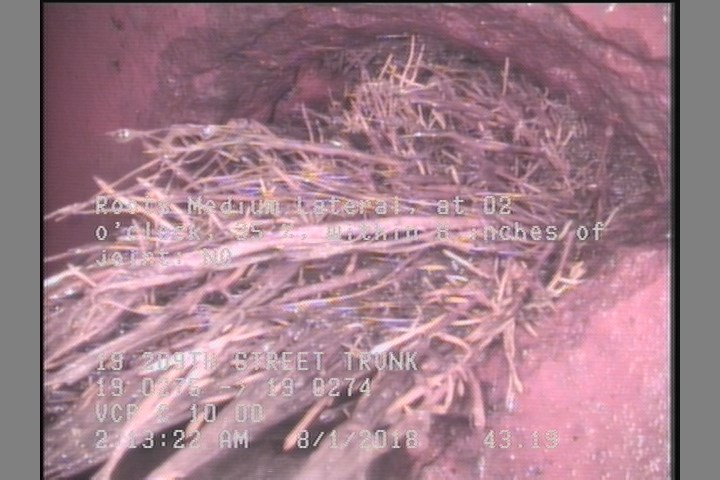

  • Roots Medium Lateral, at 02 o'clock, 35 %, within 8 inches of joint: NO

    43.2 ft. - Roots Medium Lateral, at 02 o'clock, 35 %, within 8 inches of joint: NO

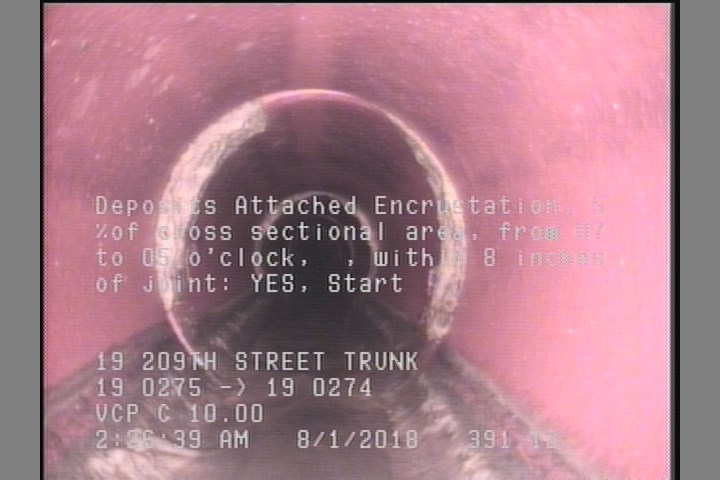

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

    391.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

All inspections of P15245Work order 718119

Observations (30)

DistanceCodeObservation
237.2TFC—
285.1TF—
391.1DAE—
43.2TBA—
43.2RFC—
382.1TF—
0AMH19 0275
402.1DAE—
0MWL—
43.2RML—
134.5RFL—
83TFC—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWM—
85.9TFC—
186.2TF—
282.6TFC—
62TF—
182.7TFC—
336.6TFA—
333.6TFC—
402.1FM—
134.5TFA—
405.6AMH19 0274
137.2TFC—
384.8TFC—
3FM—
234.3TFC—
34.5TFC—
2.6CM—

Properties (4)

additional_info
SC364720
custom_field_two
2
customer
LACSD
datetime
2018-08-01T02:06:37-07:00
