Wastewater/Activity/PacpInspection/1.0Jul 27, 2018, 06:41 AM
08 0347A_08 0347 _26072018_234711.mp4
- Date
- 07/26/2018
- W/O
- 717825
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00003
- PipeID
- P00397
- Time
- 11:41 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5799
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- CARSON
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_717825_TV08001_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 08 0347
- Downstream MH
- 08 0347A
- Dir. of Survey
- Upstream
- Length Surveyed
- 46.1 ft.
- Total Length
- 46.1 ft.
- Structural Index
- 3
- Structural Quick
- 3824
- Structural Rating
- 32
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 32
Observation photos (3)

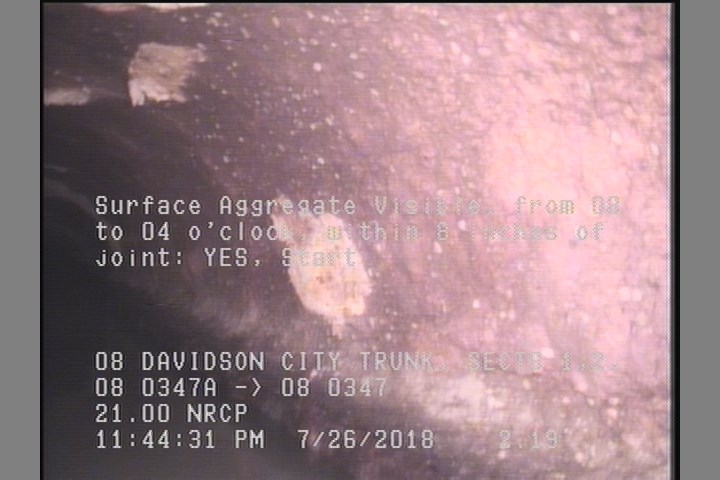

2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

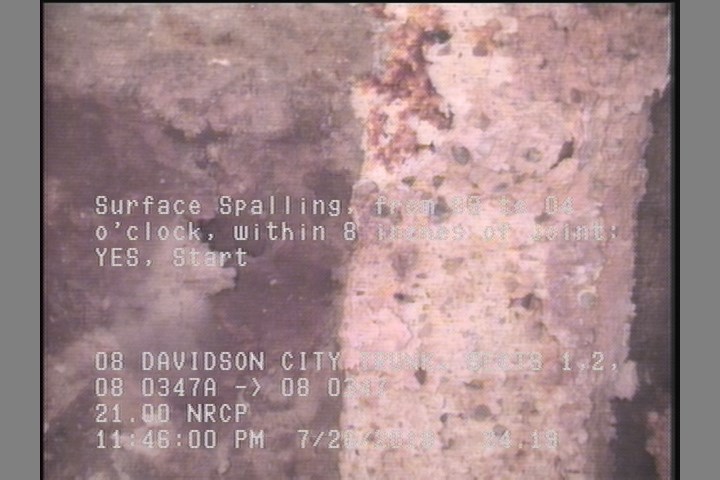

24.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

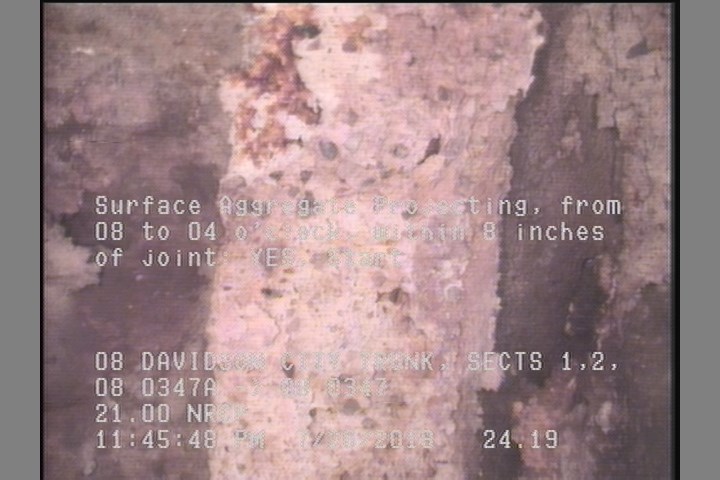

24.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 08 0347 |
| 2.2 | SAV | — |
| 24.2 | SAV | — |
| 46.1 | SSS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 24.2 | SSS | — |
| 24.2 | SAP | — |
| 46.1 | SAP | — |
| 46 | AMH | 08 0347A |
| 46.1 | MGO | CONNECTION AT MH 3 O'CLOCK |
Properties (4)
- additional_info
- SC364711
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-26T23:41:47-07:00
