Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 27, 2018, 05:14 AM

  • 08 0352_08 0351 _26072018_222611.mp4

Date
07/26/2018
W/O
717825
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00003
PipeID
P00403
Time
10:14 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5799
Sewer Name
08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
12
Purpose
Routine Assessment
Project
WO_717825_TV08001_AUG2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
08 0352
Downstream MH
08 0351
Dir. of Survey
Downstream
Length Surveyed
359.8 ft.
Total Length
359.8 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
180
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
183
Pipe schematic from manhole 08 0352 to 08 0351
MH: 08 0352MH: 08 0351downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 03520 ft. MWM - Water Mark, 25 %of cross sectional area5.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start87.8 ft. MMC - Material Change, Not know87.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish139.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start139.7 ft. MMC - Material Change, Concrete pipe (non-reinfored)160.2 ft. ID - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: NO359.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish359.8 ft. AMH - Downstream Manhole, Survey Ends - 08 0351

Observation photos (5)

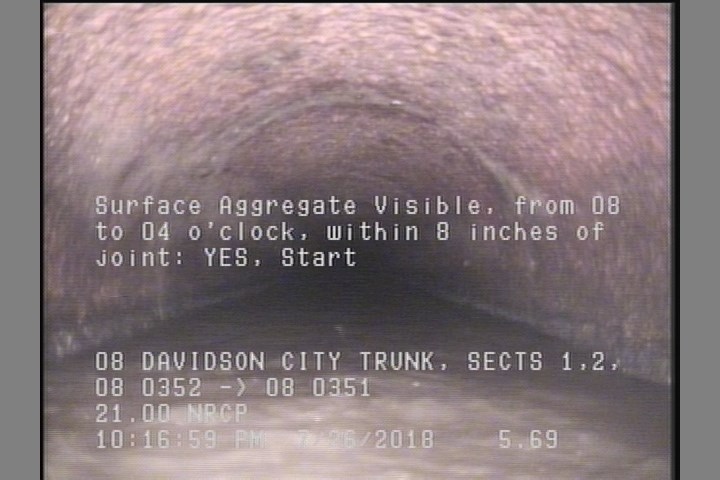

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

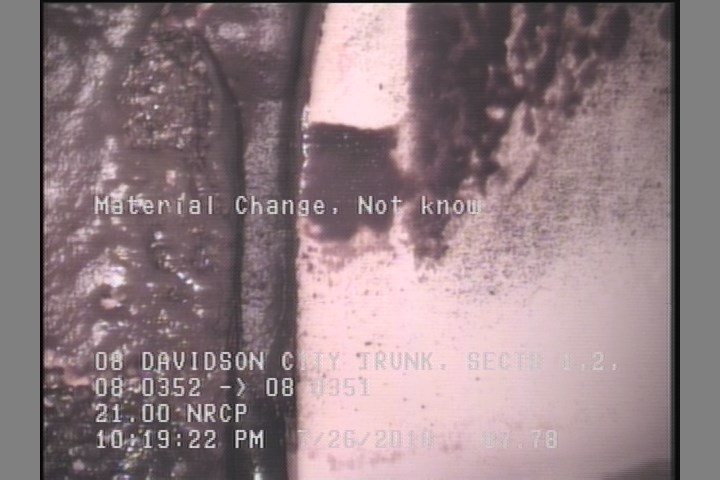

  • Material Change, Not know

    87.8 ft. - Material Change, Not know

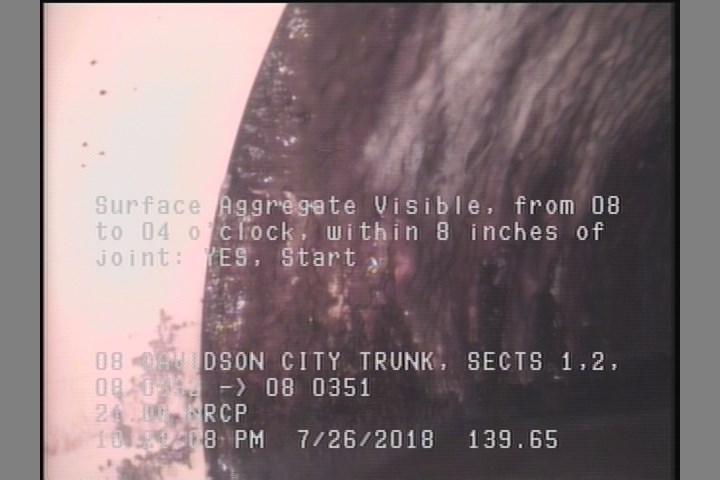

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    139.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

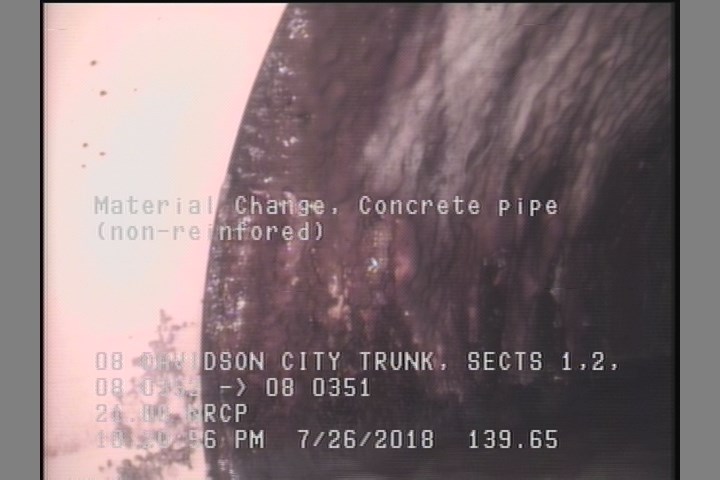

  • Material Change, Concrete pipe (non-reinfored)

    139.7 ft. - Material Change, Concrete pipe (non-reinfored)

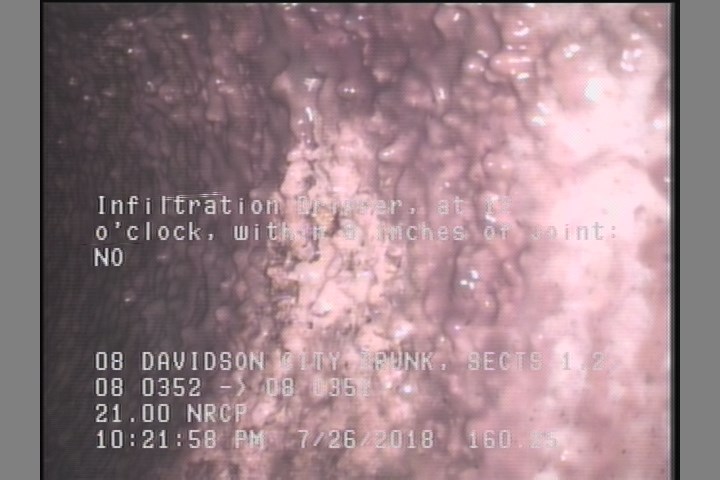

  • Infiltration Dripper, at 12 o'clock, within 8 inches of joint: NO

    160.2 ft. - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: NO

All inspections of P00403Work order 717825

Observations (11)

DistanceCodeObservation
139.7SAV—
0MWL—
0AMH08 0352
5.7SAV—
160.2ID—
87.8MMC—
87.8SAV—
139.7MMC—
359.8SAV—
0MWM—
359.8AMH08 0351

Properties (4)

additional_info
SC364711
custom_field_two
3
customer
LACSD
datetime
2018-07-26T22:14:30-07:00
