Wastewater/Activity/PacpInspection/1.0Jul 27, 2018, 04:59 AM
08 0353_08 0352 _26072018_221402.mp4
- Date
- 07/26/2018
- W/O
- 717825
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00003
- PipeID
- P00404
- Time
- 9:59 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5793
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717825_TV08001_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 08 0353
- Downstream MH
- 08 0352
- Dir. of Survey
- Downstream
- Length Surveyed
- 359.3 ft.
- Total Length
- 359.3 ft.
- Structural Index
- 3
- Structural Quick
- 3311
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)

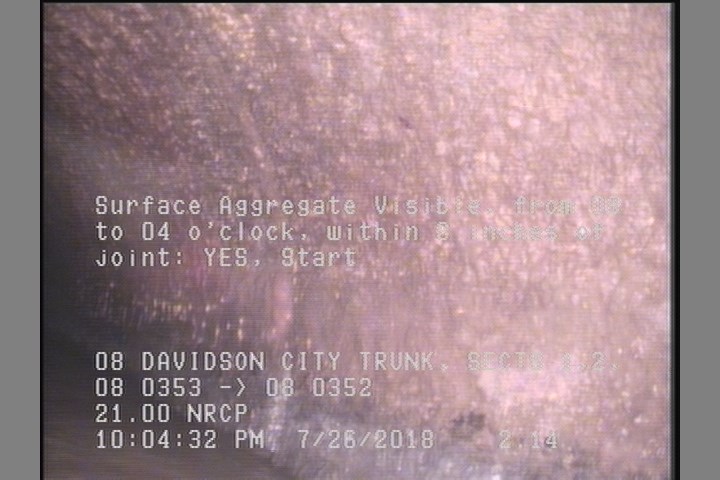

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

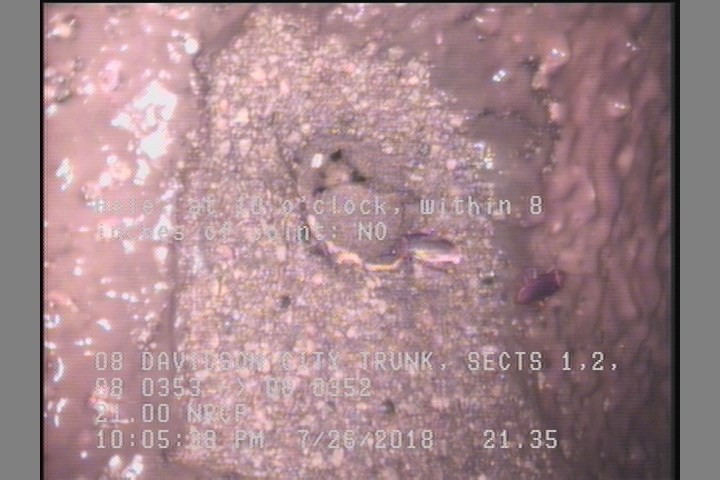

21.3 ft. - Hole, at 10 o'clock, within 8 inches of joint: NO

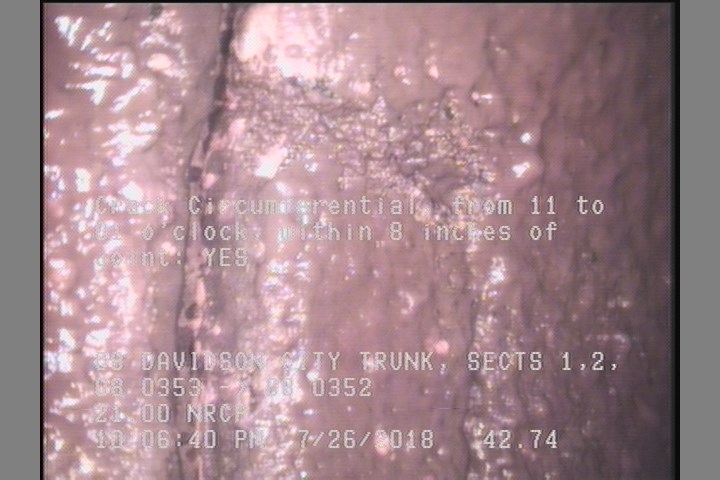

42.7 ft. - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

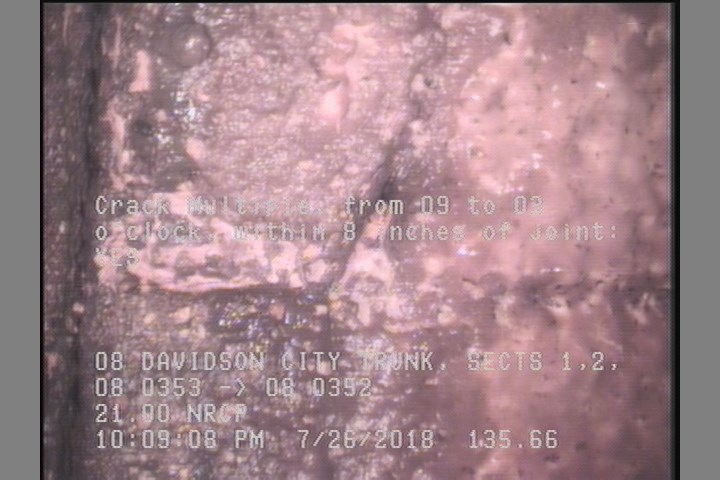

135.7 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 42.7 | CC | — |
| 339.8 | TF | — |
| 0 | AMH | 08 0353 |
| 0 | MWM | — |
| 2.1 | SAV | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 135.7 | CM | — |
| 359.3 | SAV | — |
| 21.3 | H | — |
| 0 | MWL | — |
| 359.3 | AMH | 08 0352 |
Properties (4)
- additional_info
- SC364711
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-26T21:59:24-07:00
