Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 05:10 AM
08 0363_08 0362 _24072018_221815.mp4
- Date
- 07/24/2018
- W/O
- 717825
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00003
- PipeID
- P00415
- Time
- 10:10 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5793
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717825_TV08001_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0363
- Downstream MH
- 08 0362
- Dir. of Survey
- Downstream
- Length Surveyed
- 140.4 ft.
- Total Length
- 140.4 ft.
- Structural Index
- 3
- Structural Quick
- 3E21
- Structural Rating
- 89
- O&M Index
- 1
- O&M Quick
- 1600
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 95
Observation photos (4)

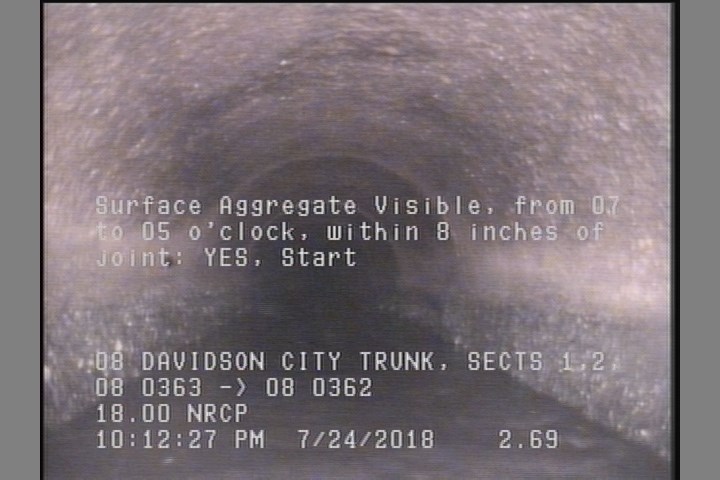

2.7 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

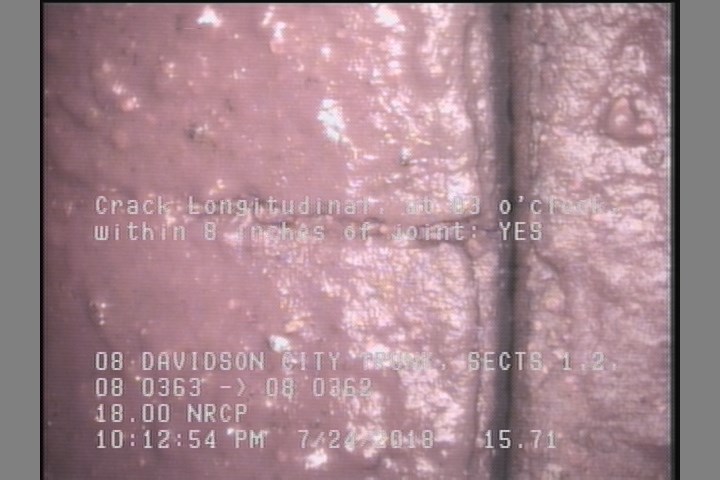

15.7 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

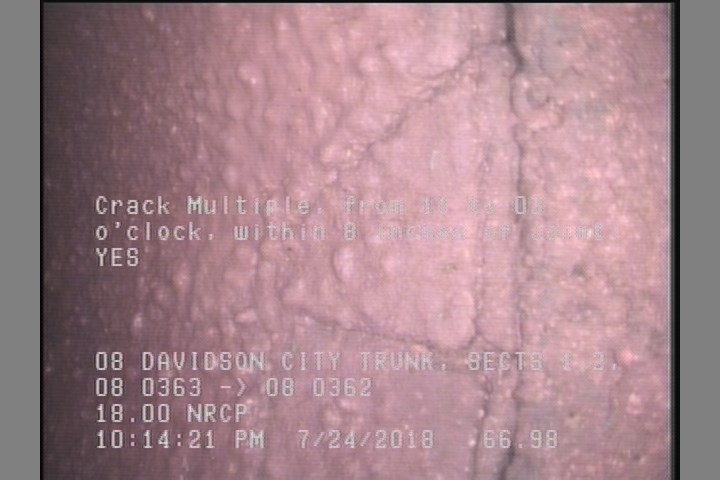

67 ft. - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

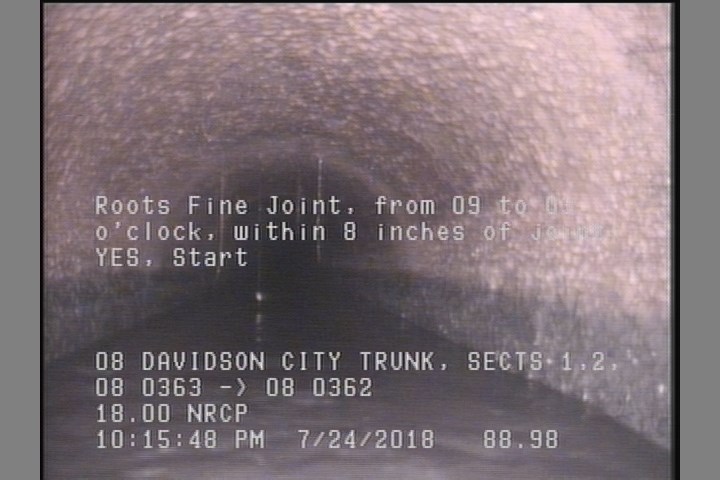

89 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 126.8 | TF | — |
| 2.7 | SAV | — |
| 140.4 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 52.2 | TFC | — |
| 89 | RFJ | — |
| 15.7 | CL | — |
| 67 | CM | — |
| 112.8 | RFJ | — |
| 75 | RFJ | — |
| 82 | TFC | — |
| 140.4 | AMH | 08 0362 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 108.9 | TF | — |
| 140.4 | SAV | — |
| 0 | MWM | — |
| 0 | AMH | 08 0363 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC364704
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-24T22:10:58-07:00
