Wastewater/Activity/PacpInspection/1.0Jul 24, 2018, 07:41 AM
08 0377_08 0376 _24072018_005911.mp4
- Date
- 07/24/2018
- W/O
- 717825
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00003
- PipeID
- P00429
- Time
- 12:41 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5792
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717825_TV08001_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0377
- Downstream MH
- 08 0376
- Dir. of Survey
- Downstream
- Length Surveyed
- 125.4 ft.
- Total Length
- 125.4 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 75
- O&M Index
- 1
- O&M Quick
- 1A00
- O&M Rating
- 12
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 87
Observation photos (3)

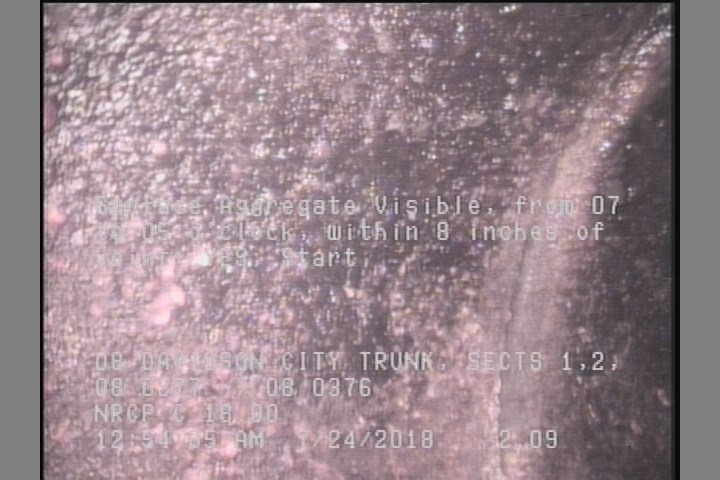

2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

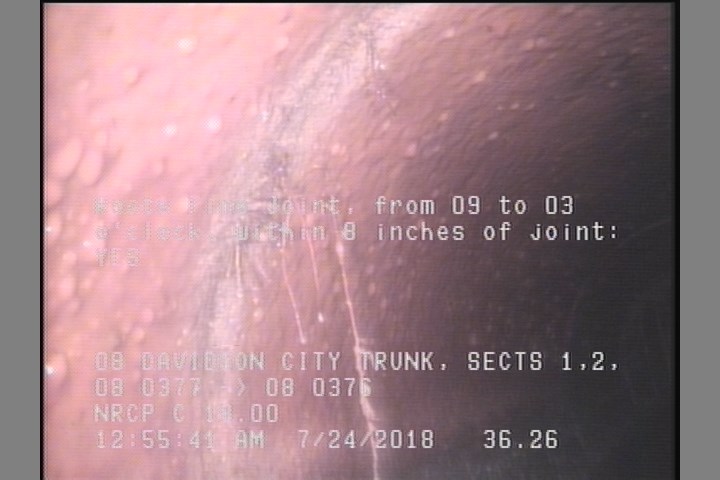

36.3 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES

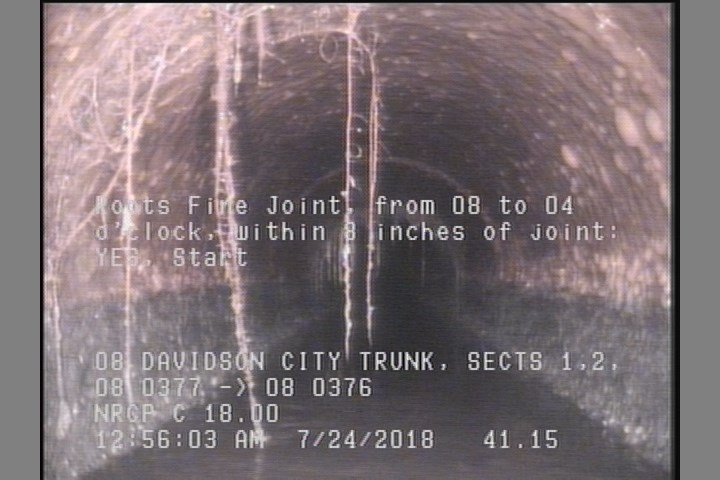

41.1 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 08 0377 |
| 2.1 | SAV | — |
| 0 | MWM | — |
| 36.3 | RFJ | — |
| 2.1 | MGO | HEAVY STEAM |
| 49.4 | TF | — |
| 103.4 | TFC | — |
| 76.1 | TFC | — |
| 0 | MWL | — |
| 41.1 | RFJ | — |
| 96.1 | RFJ | — |
| 125.4 | SAV | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 125.4 | AMH | 08 0376 |
Properties (4)
- additional_info
- SC364703
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-24T00:41:50-07:00
