Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 04:49 AM

  • 08 0366_08 0365 _24072018_215711.mp4

Date
07/24/2018
W/O
717825
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00003
PipeID
P00418
Time
9:49 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5793
Sewer Name
08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
City
CARSON
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
12
Purpose
Routine Assessment
Project
WO_717825_TV08001_AUG2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
08 0366
Downstream MH
08 0365
Dir. of Survey
Downstream
Length Surveyed
138.4 ft.
Total Length
138.4 ft.
Structural Index
3
Structural Quick
3E00
Structural Rating
84
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
84
Pipe schematic from manhole 08 0366 to 08 0365
MH: 08 0366MH: 08 0365downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 03660 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH0 ft. MWL - Water Level, 15 %of cross sectional area4.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.2 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES13.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"46.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"73.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"89.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"138.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish138.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK138.4 ft. AMH - Downstream Manhole, Survey Ends - 08 0365

Observation photos (2)

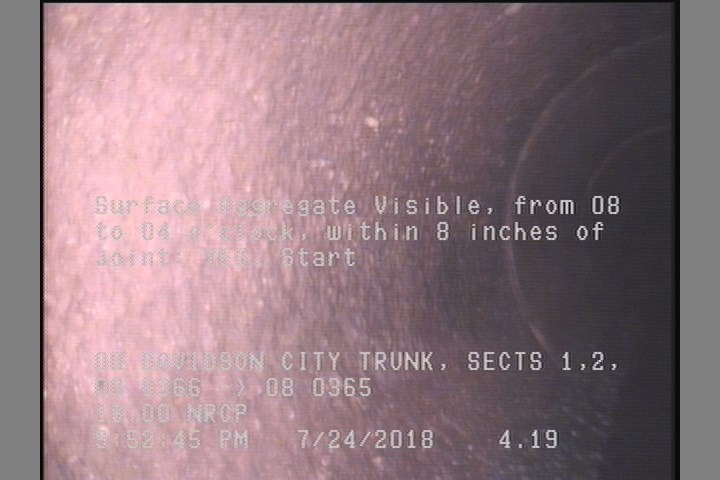

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

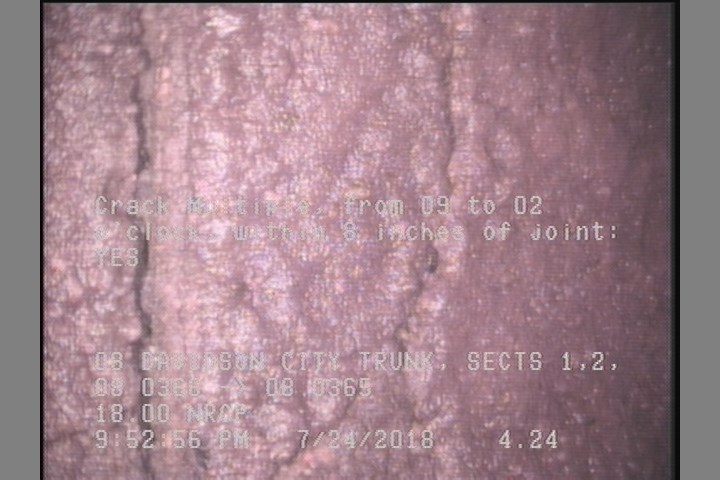

  • Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

    4.2 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

All inspections of P00418Work order 717825

Observations (13)

DistanceCodeObservation
73.1TF—
13.4TFC—
138.3SAV—
46.6TF—
0AMH08 0366
0MWM—
0MGOCAPPED LATERAL 9 O'CLOCK @ MH
0MWL—
89.8TF—
138.3MGOCONNECTION AT MH 9 O'CLOCK
138.4AMH08 0365
4.2SAV—
4.2CM—

Properties (4)

additional_info
SC364704
custom_field_two
3
customer
LACSD
datetime
2018-07-24T21:49:52-07:00
