Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 05:25 AM
08 0360_08 0359 _24072018_223403.mp4
- Date
- 07/24/2018
- W/O
- 717825
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00003
- PipeID
- P00412
- Time
- 10:25 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5793
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717825_TV08001_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0360
- Downstream MH
- 08 0359
- Dir. of Survey
- Downstream
- Length Surveyed
- 140.9 ft.
- Total Length
- 140.9 ft.
- Structural Index
- 3
- Structural Quick
- 3E21
- Structural Rating
- 95
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 95
Observation photos (5)

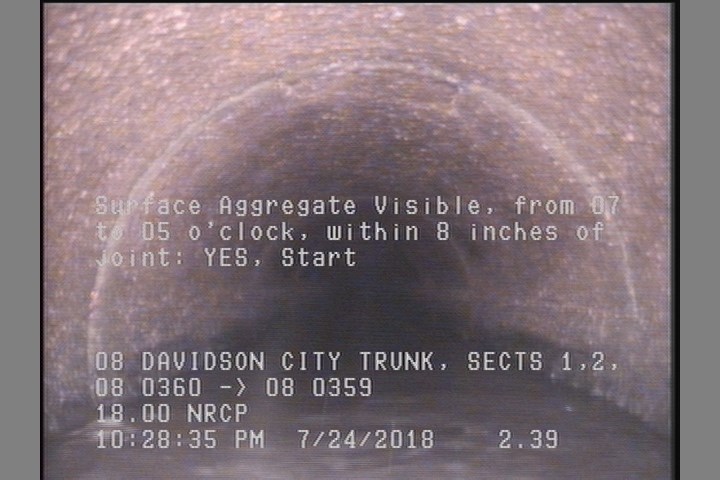

2.4 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

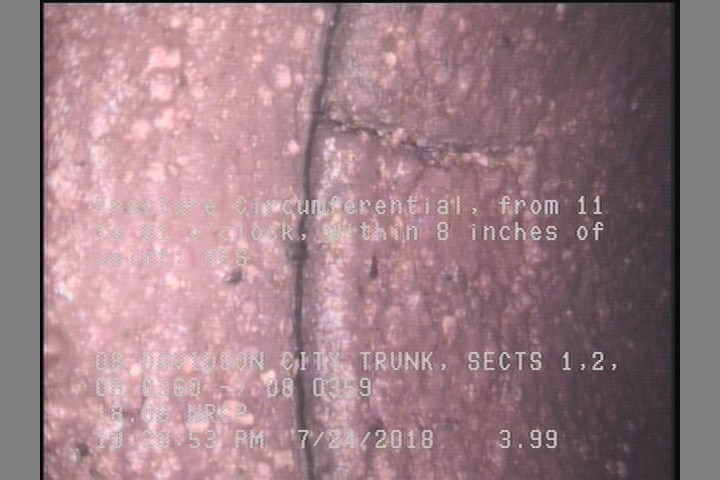

4 ft. - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

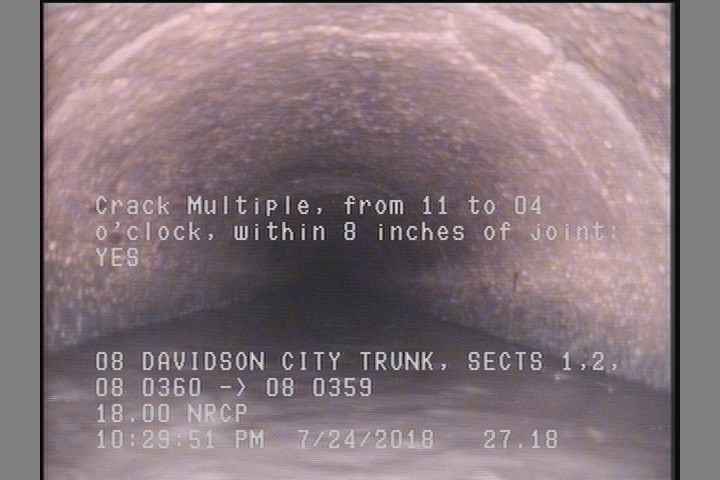

27.2 ft. - Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES

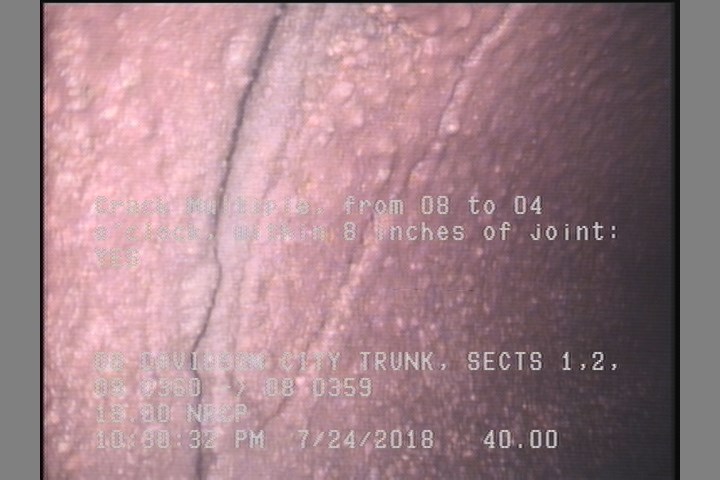

40 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

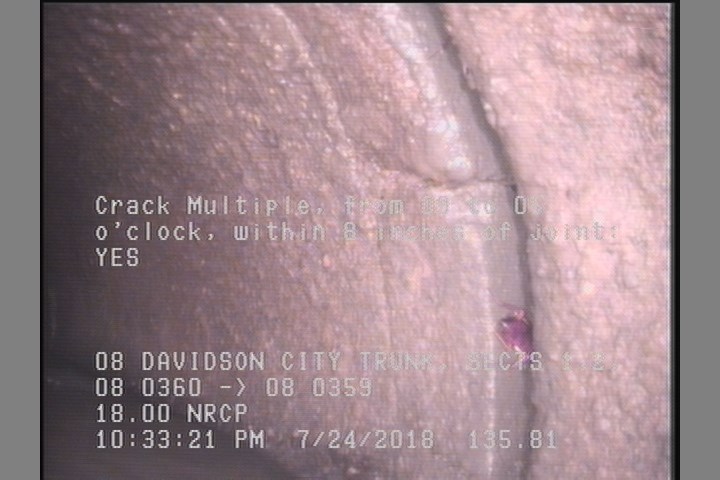

135.8 ft. - Crack Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 4 | FC | — |
| 0 | AMH | 08 0360 |
| 56.1 | TF | — |
| 140.9 | AMH | 08 0359 |
| 0 | MWL | — |
| 140.9 | SAV | — |
| 11.2 | TFC | — |
| 27.2 | CM | — |
| 0 | MWM | — |
| 85.7 | TFC | — |
| 40 | CM | — |
| 140.9 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 135.8 | CM | — |
| 32.2 | TF | — |
| 0 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 2.4 | SAV | — |
Properties (4)
- additional_info
- SC364704
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-24T22:25:03-07:00
