Wastewater/Activity/PacpInspection/1.0Jul 24, 2018, 08:33 AM
08 0370_08 0369 _24072018_014347.mp4
- Date
- 07/24/2018
- W/O
- 717825
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00003
- PipeID
- P00422
- Time
- 1:33 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5792
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- CARSON
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717825_TV08001_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0370
- Downstream MH
- 08 0369
- Dir. of Survey
- Downstream
- Length Surveyed
- 141.6 ft.
- Total Length
- 141.6 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 84
- O&M Index
- 3
- O&M Quick
- 3D22
- O&M Rating
- 85
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 169
Observation photos (4)

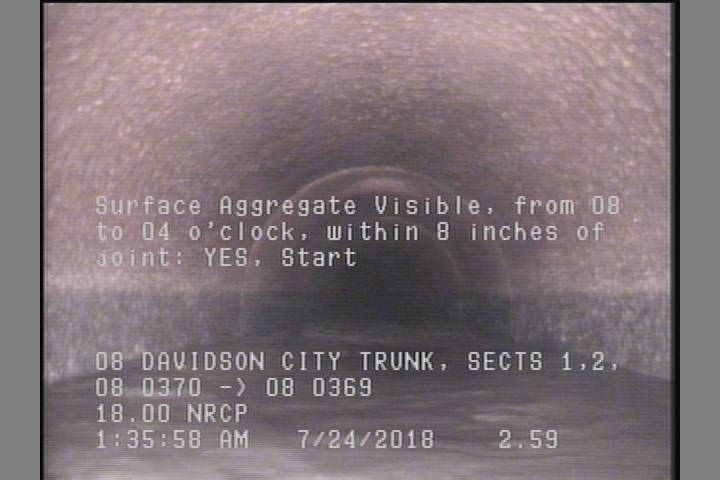

2.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

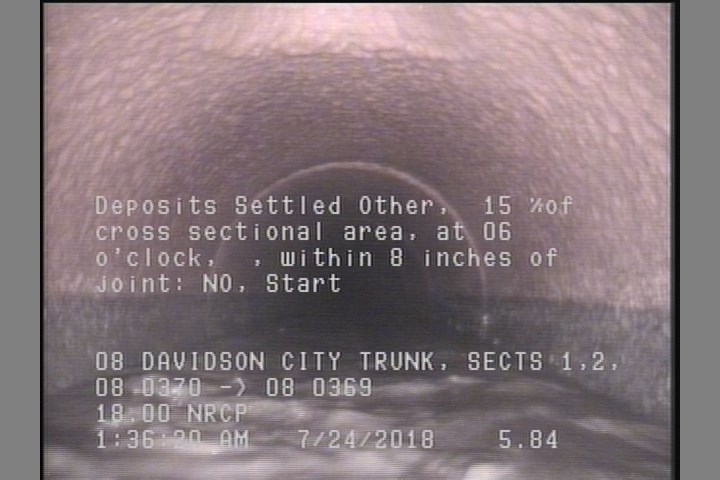

5.8 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

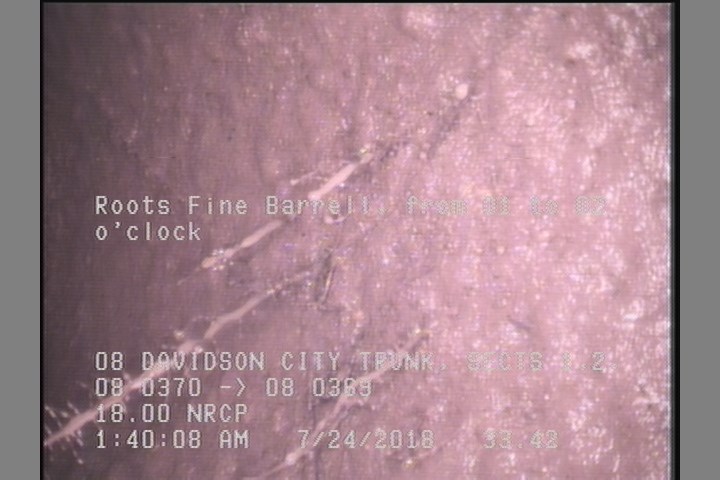

33.4 ft. - Roots Fine Barrell, from 01 to 02 o'clock

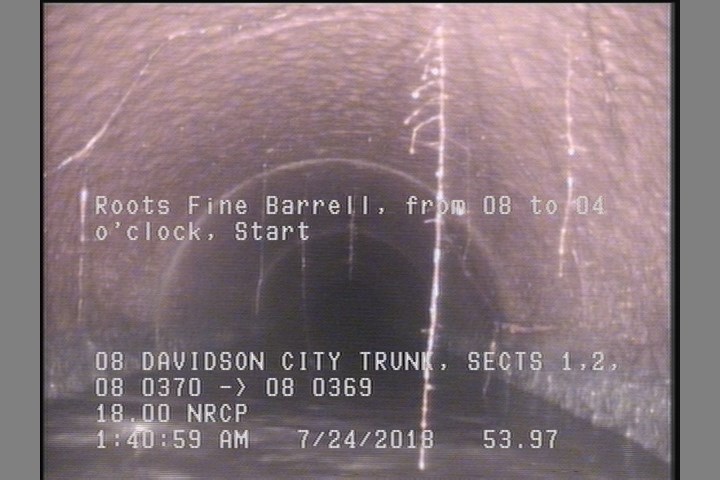

54 ft. - Roots Fine Barrell, from 08 to 04 o'clock, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 141.6 | DSZ | — |
| 87.8 | TF | — |
| 141.6 | AMH | 08 0369 |
| 2.6 | SAV | — |
| 33.4 | RFB | — |
| 59.4 | RFB | — |
| 0 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 141.6 | SAV | — |
| 34.3 | TFC | — |
| 63.9 | TFC | — |
| 0 | MWM | — |
| 54 | RFB | — |
| 7.9 | TFC | — |
| 0 | AMH | 08 0370 |
| 5.8 | DSZ | — |
Properties (4)
- additional_info
- SC364703
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-24T01:33:58-07:00
