Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 07:46 AM
08 0354_08 0353 _25072018_005953.mp4
- Date
- 07/25/2018
- W/O
- 717825
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00003
- PipeID
- P00405
- Time
- 12:46 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5793
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717825_TV08001_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 08 0354
- Downstream MH
- 08 0353
- Dir. of Survey
- Downstream
- Length Surveyed
- 357.1 ft.
- Total Length
- 357.1 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 213
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 213
Observation photos (2)

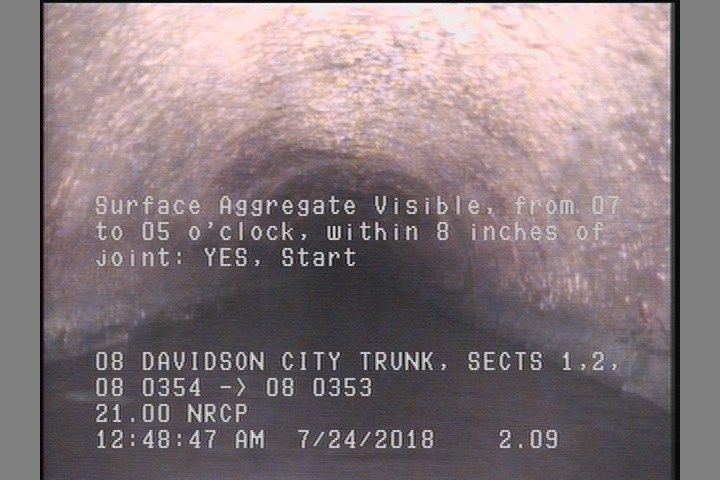

2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

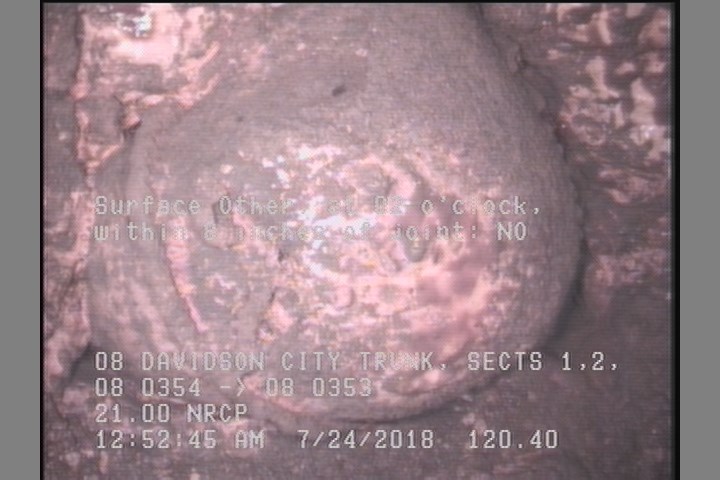

120.4 ft. - Surface Other, at 02 o'clock, within 8 inches of joint: NO
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 08 0354 |
| 357.1 | AMH | 08 0353 |
| 0 | MWM | — |
| 120.4 | SZ | — |
| 0 | MWL | — |
| 357.1 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 2.1 | SAV | — |
| 357.1 | SAV | — |
| 57 | TF | — |
Properties (4)
- additional_info
- SC364704
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-25T00:46:09-07:00
