Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 06:48 AM
08 0357_08 0356 _24072018_235346.mp4
- Date
- 07/24/2018
- W/O
- 717825
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00003
- PipeID
- P00408
- Time
- 11:48 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5793
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_717825_TV08001_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 08 0357
- Downstream MH
- 08 0356
- Dir. of Survey
- Downstream
- Length Surveyed
- 111.4 ft.
- Total Length
- 111.4 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 66
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 22
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 88
Observation photos (2)

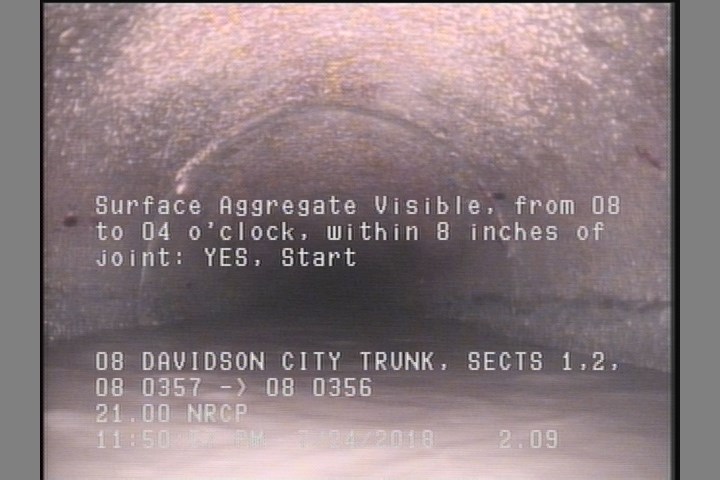

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

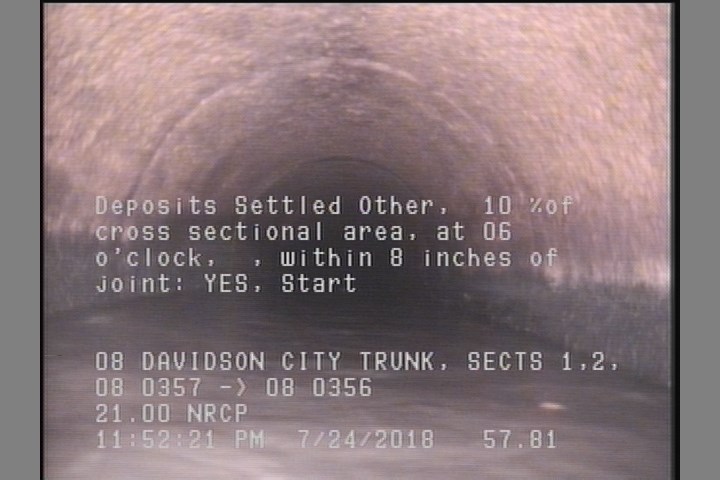

57.8 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 111.3 | DSZ | — |
| 0 | MWM | — |
| 111.3 | SAV | — |
| 0 | AMH | 08 0357 |
| 111.4 | AMH | 08 0356 |
| 57.8 | DSZ | — |
| 2.1 | SAV | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC364704
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-24T23:48:58-07:00
