Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2018, 05:01 AM

  • 15 1099_15 1098 _01052018_223043.mp4

Date
05/01/2018
W/O
696294
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00614
PipeID
P12859
Time
10:01 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5584
Sewer Name
15 MERCED TRUNK, SECTION 1
City
SOUTH EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_696294_TV15099_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
15 1099
Downstream MH
15 1098
Dir. of Survey
Downstream
Length Surveyed
303.1 ft.
Total Length
303.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2K00
O&M Rating
122
Overall Index
2
Overall Quick
—
Overall Rating
122
Pipe schematic from manhole 15 1099 to 15 1098
MH: 15 1099MH: 15 1098downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 10990 ft. MWL - Water Level, 15 %of cross sectional area9.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"22.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"83.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"194.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"247.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"253.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"303.1 ft. AMH - Downstream Manhole, Survey Ends - 15 1098303.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE303.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (1)

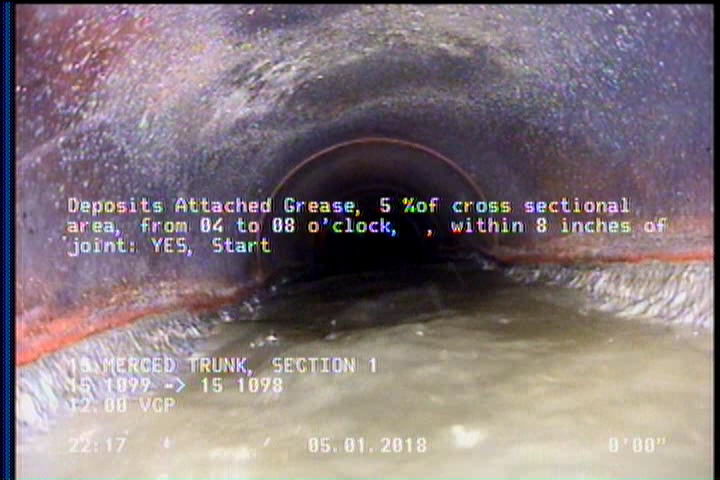

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P12859Work order 696294

Observations (14)

DistanceCodeObservation
22.3TFA—
303.1AMH15 1098
0MGOCOCKROACHES IN MANHOLE
0DAGS—
9.6TFA—
247.2TFA—
194.4TFA—
303.1MGOCOCKROACHES IN MANHOLE
83.6TFA—
0MWM—
253.3TFA—
0AMH15 1099
0MWL—
303.1DAGS—

Properties (4)

additional_info
SC358545
custom_field_two
3
customer
LACSD
datetime
2018-05-01T22:01:39-07:00
