Wastewater/Activity/PacpInspection/1.0May 2, 2018, 10:41 AM
15 1089_15 1088_02052018_035435.mp4
- Date
- 05/02/2018
- W/O
- 696294
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00614
- PipeID
- P12849
- Time
- 3:41 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5584
- Sewer Name
- 15 MERCED TRUNK, SECTION 1
- City
- SOUTH EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_696294_TV15099_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 15 1089
- Downstream MH
- 15 1088
- Dir. of Survey
- Downstream
- Length Surveyed
- 171.2 ft.
- Total Length
- 171.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412F
- O&M Rating
- 72
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 72
Observation photos (2)

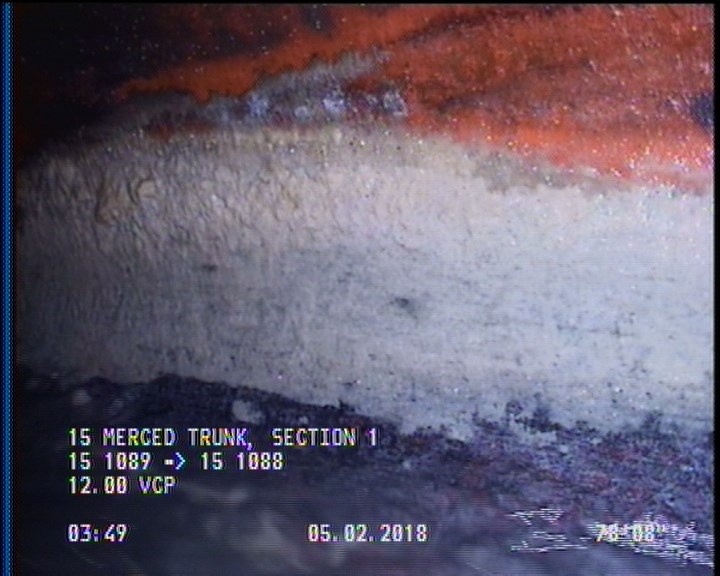

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

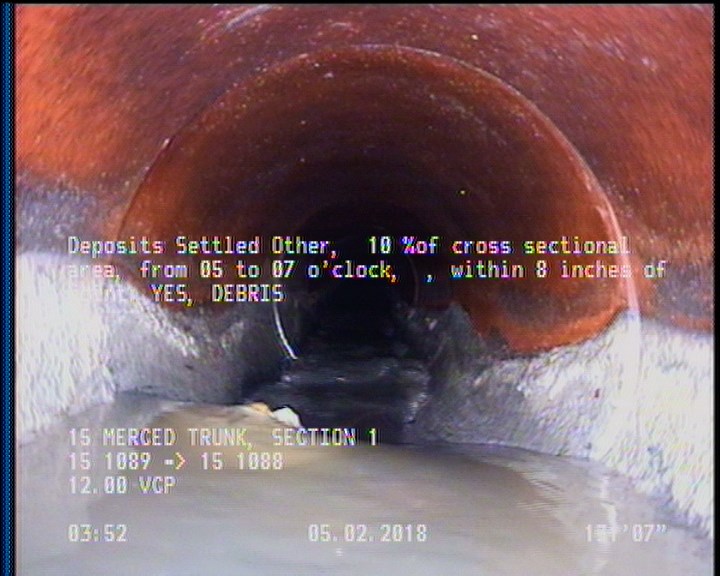

131.6 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 15 1089 |
| 78.7 | TF | — |
| 0 | MWM | — |
| 171.2 | AMH | 15 1088 |
| 168.7 | DAGS | — |
| 0 | MWL | — |
| 131.6 | DSZ | DEBRIS |
| 171.2 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 148.9 | TFA | — |
| 38.9 | TFC | — |
| 2 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
Properties (4)
- additional_info
- SC358545
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-02T03:41:56-07:00
