Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2018, 05:31 AM

  • 15 1098_15 1097 _01052018_224608.mp4

Date
05/01/2018
W/O
696294
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00614
PipeID
P12858
Time
10:31 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5584
Sewer Name
15 MERCED TRUNK, SECTION 1
City
SOUTH EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_696294_TV15099_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
15 1098
Downstream MH
15 1097
Dir. of Survey
Downstream
Length Surveyed
162.3 ft.
Total Length
162.3 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 15 1098 to 15 1097
MH: 15 1098MH: 15 1097downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 10980 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start28.2 ft. MWLS - Water Level, Sag in pipe, 60 %of cross sectional area, Start33.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"33.4 ft. MWLS - Water Level, Sag in pipe, 60 %of cross sectional area, Finish95.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"161.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE162.3 ft. MGO - General Observation - ACTIVE CONNECTION 10 O'CLOCK162.3 ft. AMH - Downstream Manhole, Survey Ends - 15 1097162.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (1)

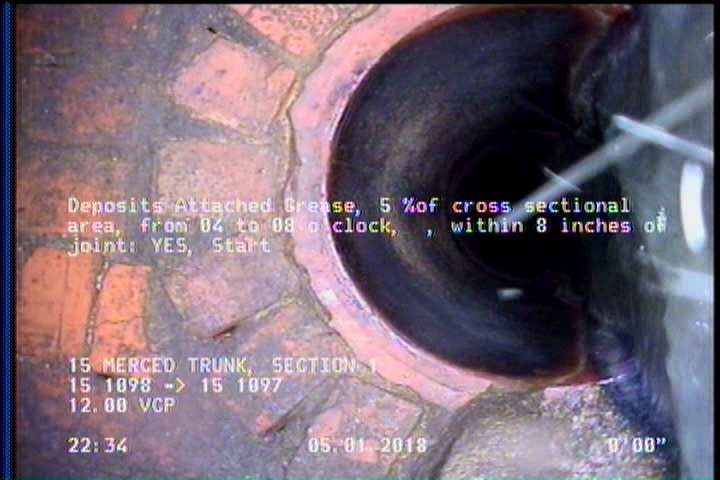

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P12858Work order 696294

Observations (12)

DistanceCodeObservation
161.9MGOCOCKROACHES IN MANHOLE
33.4TFA—
0MWL—
95.8TFC—
0MWM—
28.2MWLS—
162.3MGOACTIVE CONNECTION 10 O'CLOCK
33.4MWLS—
162.3AMH15 1097
0AMH15 1098
0DAGS—
162.3DAGS—

Properties (4)

additional_info
SC358545
custom_field_two
3
customer
LACSD
datetime
2018-05-01T22:31:17-07:00
