Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 2, 2018, 06:07 AM

  • 03 0225_03 0224_01082018_232557.mp4

Date
08/01/2018
W/O
718154
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00387
PipeID
P04826
Time
11:07 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5960
Sewer Name
03 NORTH LONG BEACH TRUNK
City
LONG BEACH
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
06
Purpose
Routine Assessment
Project
WO_718154_TV03158_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
03 0225
Downstream MH
03 0224
Dir. of Survey
Downstream
Length Surveyed
443.4 ft.
Total Length
443.4 ft.
Structural Index
3
Structural Quick
4G3H
Structural Rating
285
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
285
Pipe schematic from manhole 03 0225 to 03 0224
MH: 03 0225MH: 03 0224downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 02256.8 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES36.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES42.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start183.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES201.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish201.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start253.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start253.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish443.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish443.4 ft. AMH - Downstream Manhole, Survey Ends - 03 0224

Observation photos (6)

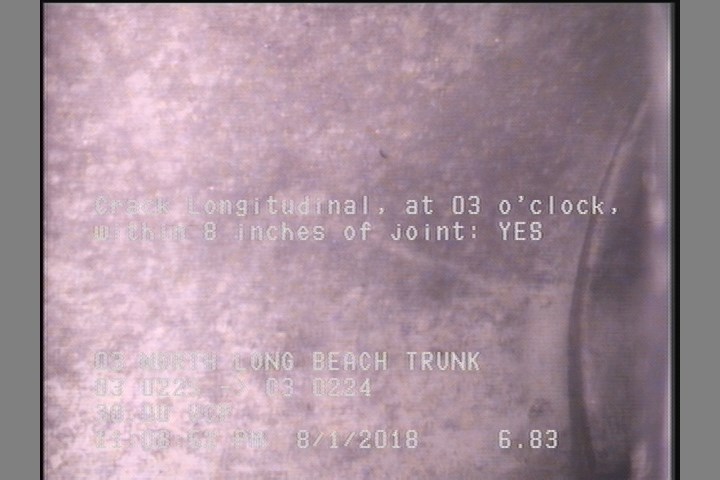

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    6.8 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    36.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    42.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    183.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    201.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    253.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04826Work order 718154

Observations (13)

DistanceCodeObservation
201.3CM—
0MWM—
0MWL—
6.8CL—
253.4FM—
443.4FM—
253.4FL—
201.5FL—
0AMH03 0225
183.5FL—
36.3CL—
42.3CM—
443.4AMH03 0224

Properties (4)

additional_info
SC364723
custom_field_two
2
customer
LACSD
datetime
2018-08-01T23:07:34-07:00
