Wastewater/Activity/PacpInspection/1.0Aug 3, 2018, 09:07 AM
32 0229_32 0163_03082018_021240.mp4
- Date
- 08/03/2018
- W/O
- 717990
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00891
- PipeID
- P19915
- Time
- 2:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5892
- Sewer Name
- 32 VALENCIA TRUNK
- City
- VALENCIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_717990_TV32044_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 32 0229
- Downstream MH
- 32 0163
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

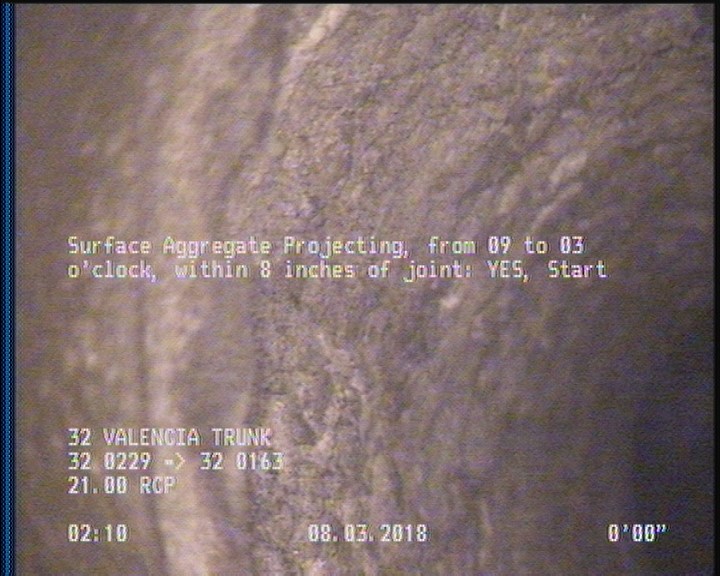

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES

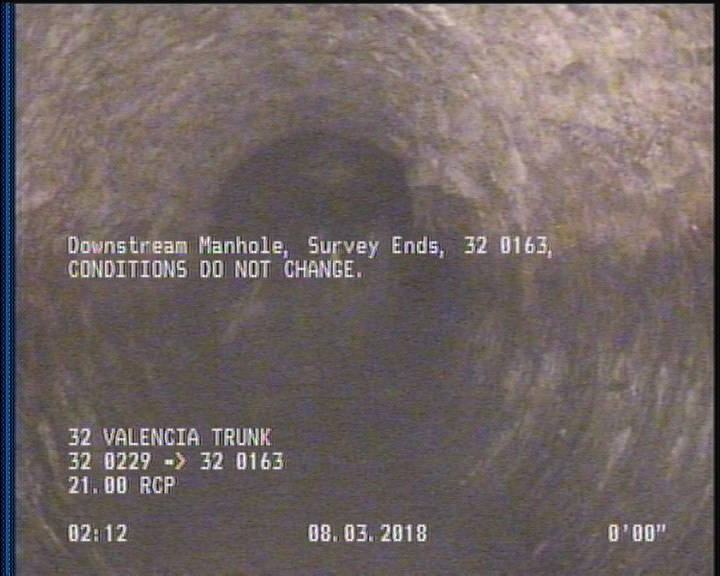

2 ft. - Downstream Manhole, Survey Ends - 32 0163, CONDITIONS DO NOT CHANGE.

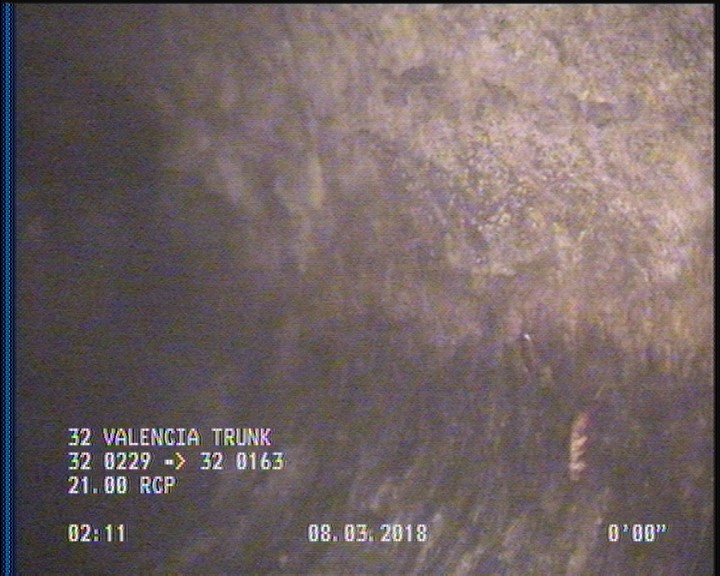

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES

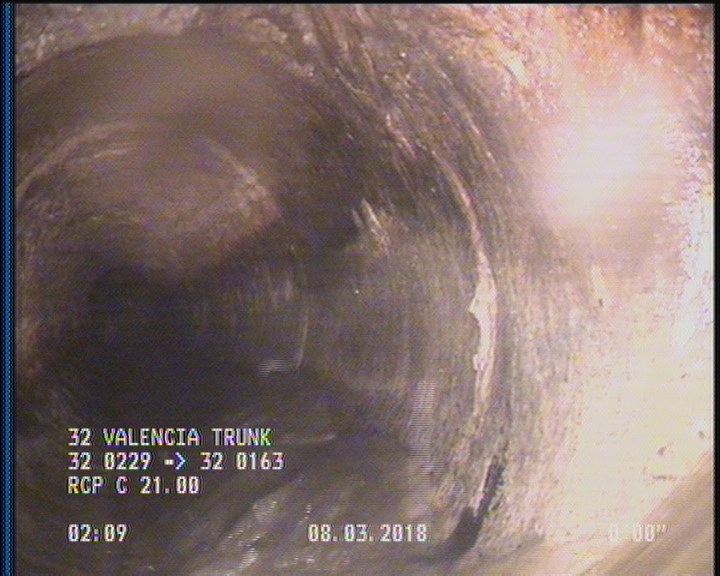

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 0 | AMH | 32 0229 |
| 0 | MWL | — |
| 2 | AMH | 32 0163, CONDITIONS DO NOT CHANGE. |
| 2 | SSS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC364760
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-03T02:07:22-07:00
- year_laid
- 26793
