Wastewater/Activity/PacpInspection/1.0Aug 3, 2018, 09:53 AM
32 0168_32 0167_03082018_031116.mp4
- Date
- 08/03/2018
- W/O
- 717990
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00891
- PipeID
- P19919
- Time
- 2:53 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5892
- Sewer Name
- 32 VALENCIA TRUNK
- City
- VALENCIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_717990_TV32044_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 32 0168
- Downstream MH
- 32 0167
- Dir. of Survey
- Downstream
- Length Surveyed
- 331.7 ft.
- Total Length
- 331.7 ft.
- Structural Index
- 3
- Structural Quick
- 5L3L
- Structural Rating
- 650
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 782
Observation photos (4)

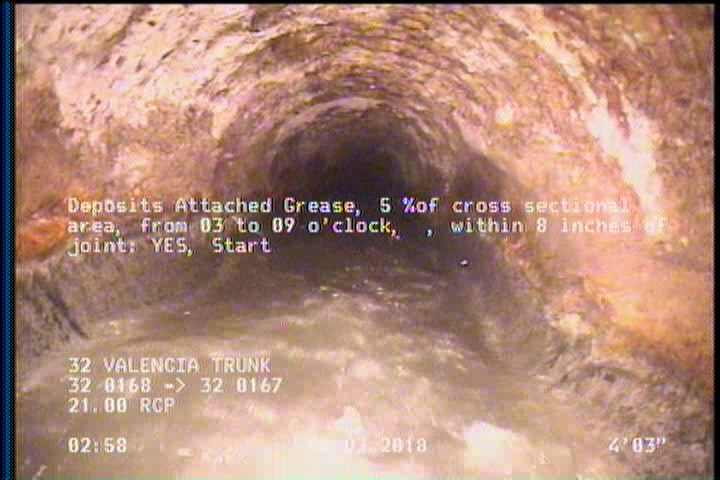

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

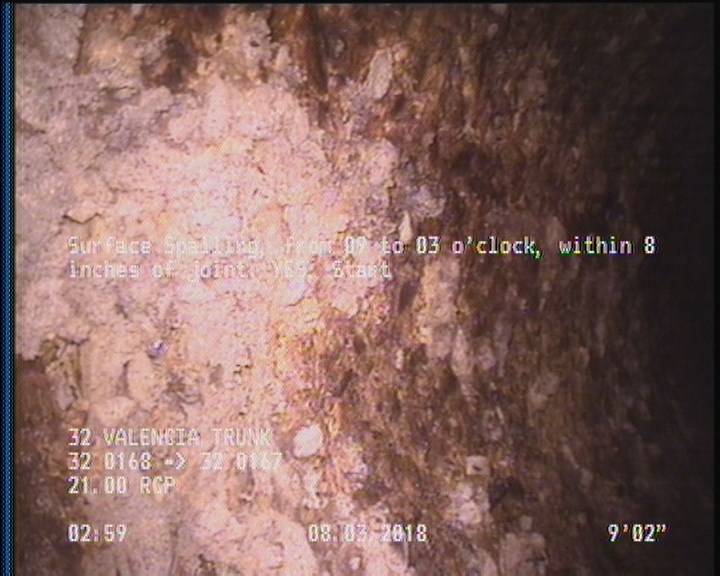

9.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

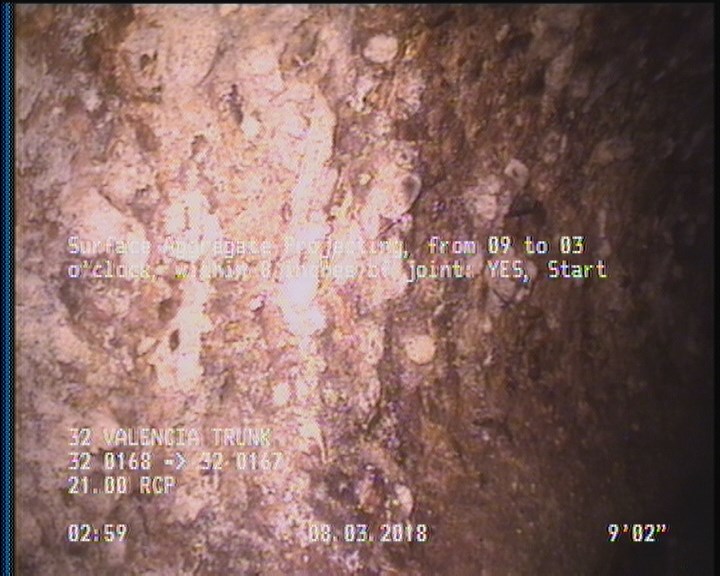

9.2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

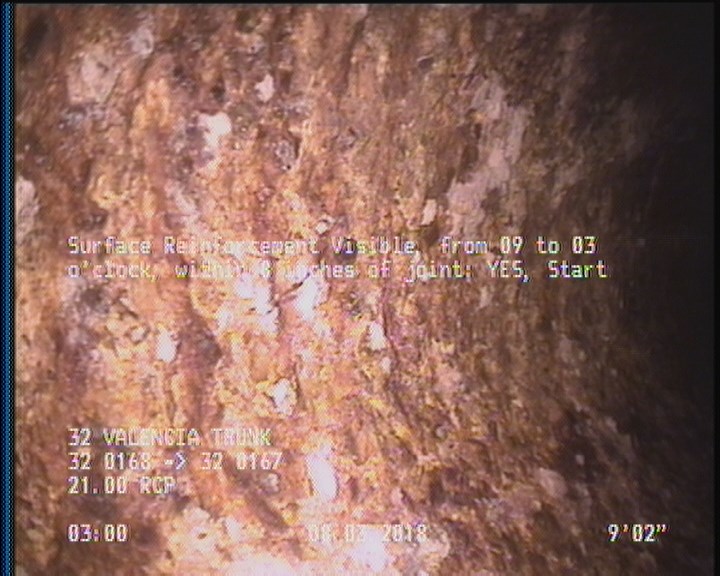

9.2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 9.2 | SSS | — |
| 0 | MWL | — |
| 331.7 | SAP | — |
| 2 | DAGS | — |
| 331.7 | DAGS | — |
| 331.7 | AMH | 32 0167 |
| 9.2 | SAP | — |
| 0 | AMH | 32 0168 |
| 0 | MWM | — |
| 59 | TBA | — |
| 331.7 | SRV | — |
| 310.5 | TBA | — |
| 9.2 | SRV | — |
| 331.7 | SSS | — |
Properties (5)
- additional_info
- SC364760
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-03T02:53:19-07:00
- year_laid
- 26793
