Wastewater/Activity/PacpInspection/1.0Aug 2, 2018, 06:25 AM
32 0224_32 0223A_01082018_234258.mp4
- Date
- 08/01/2018
- W/O
- 717986
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00891
- PipeID
- P24944
- Time
- 11:25 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5887
- Sewer Name
- 32 VALENCIA TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_717986_TV32059_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 32 0224
- Downstream MH
- 32 0223A
- Dir. of Survey
- Downstream
- Length Surveyed
- 113.1 ft.
- Total Length
- 113.1 ft.
- Structural Index
- 3
- Structural Quick
- 4221
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 412C
- O&M Rating
- 48
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 58
Observation photos (4)

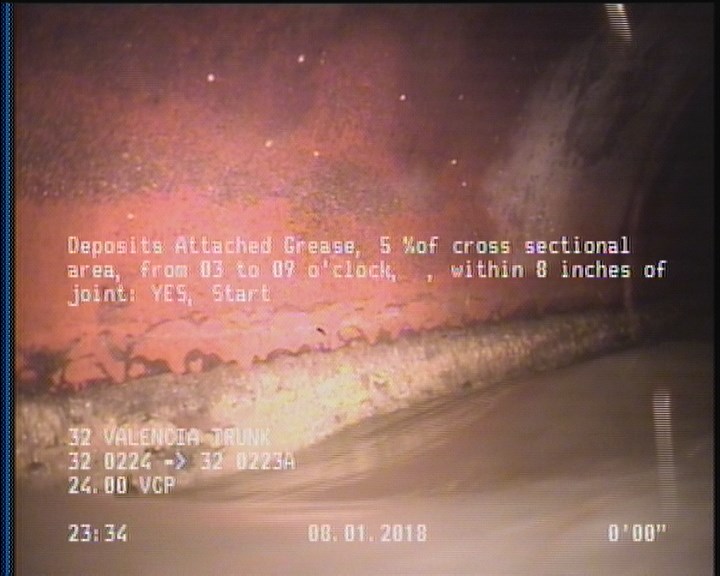

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

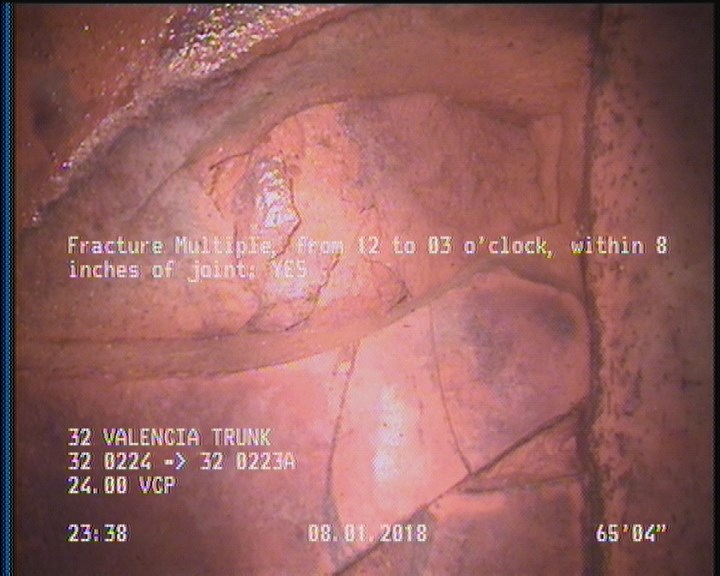

65.4 ft. - Fracture Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

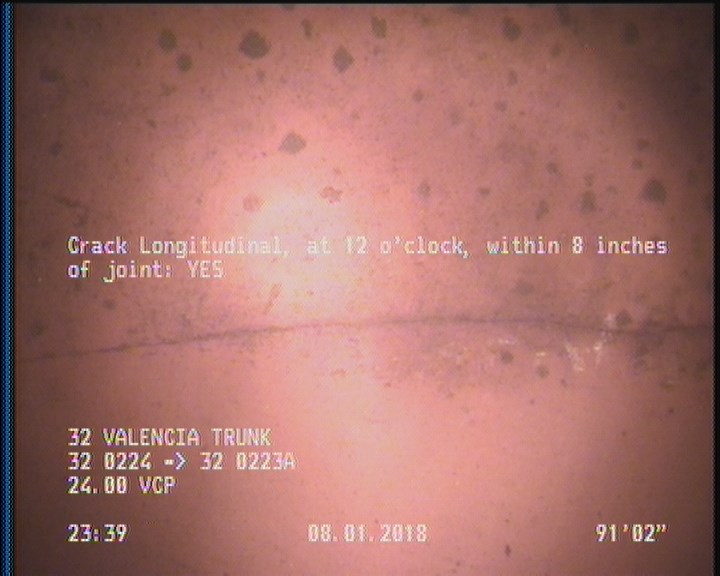

91.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

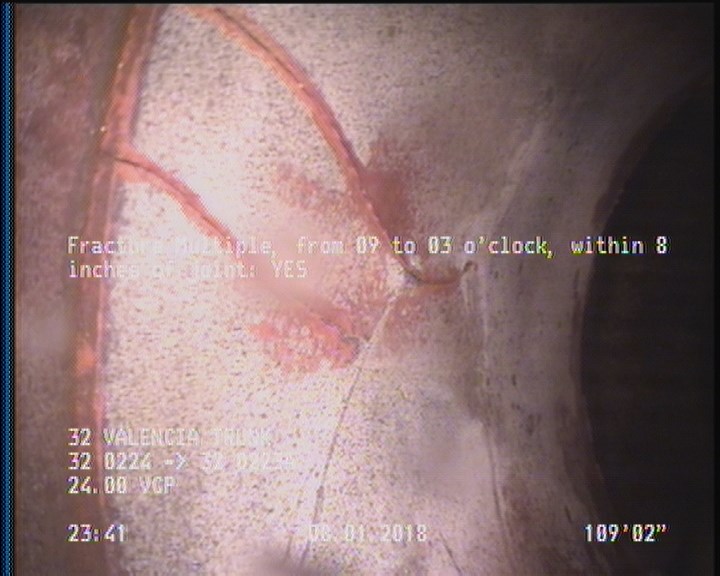

109.2 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 91.2 | CL | — |
| 113.1 | AMH | 32 0223A |
| 65.4 | FM | — |
| 0 | AMH | 32 0224 |
| 111.4 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 109.2 | FM | — |
| 113.1 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC364755
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-01T23:25:21-07:00
- year_laid
- 30348
