Wastewater/Activity/PacpInspection/1.0Jul 27, 2018, 05:08 AM
32 1174_32 1173 _26072018_223528.mp4
- Date
- 07/26/2018
- W/O
- 717961
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00839
- PipeID
- P19628
- Time
- 10:08 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5882
- Sewer Name
- 32 SAN FERNANDO ROAD TRUNK
- City
- SANTA CLARITA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_717961_TV32021_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1174
- Downstream MH
- 32 1173
- Dir. of Survey
- Downstream
- Length Surveyed
- 596.2 ft.
- Total Length
- 596.2 ft.
- Structural Index
- 3
- Structural Quick
- 3W00
- Structural Rating
- 354
- O&M Index
- 2
- O&M Quick
- 2W00
- O&M Rating
- 236
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 590
Observation photos (2)

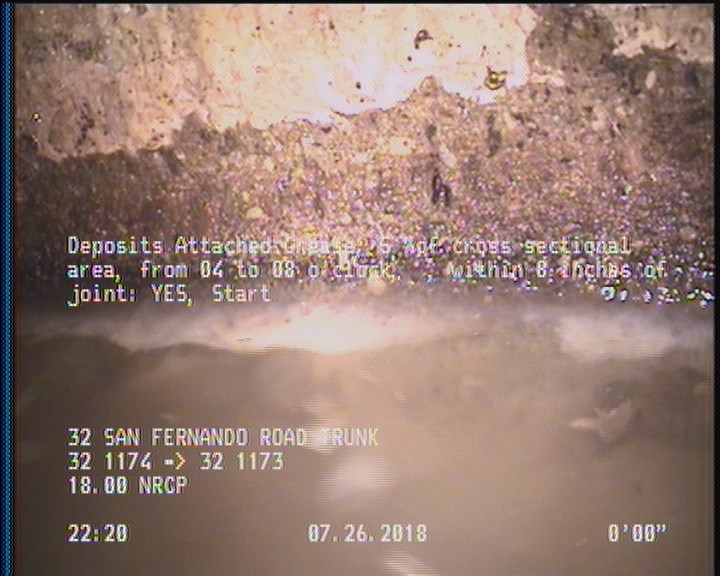

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

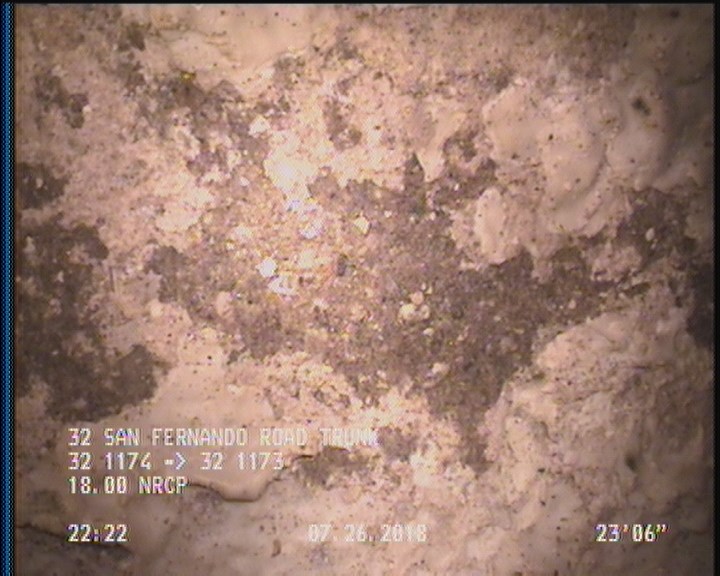

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 390.7 | TBA | — |
| 156.3 | TB | — |
| 503.4 | TBA | — |
| 0 | MWM | — |
| 35.1 | TBA | — |
| 596.2 | AMH | 32 1173 |
| 0 | MGO | MAG COATING THROUGHOUT 70% |
| 0 | AMH | 32 1174 |
| 594.1 | SAP | — |
| 56.3 | TBA | — |
| 2 | DAGS | — |
| 164.6 | TFC | — |
| 594.1 | DAGS | — |
| 274.7 | TBA | — |
| 0 | MWL | — |
| 2 | SAP | — |
Properties (4)
- additional_info
- SC359750
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-26T22:08:52-07:00
