Wastewater/Activity/PacpInspection/1.0Jul 27, 2018, 10:16 AM
32 1161_32 1160_27072018_032202.mp4
- Date
- 07/27/2018
- W/O
- 717961
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00839
- PipeID
- P19615
- Time
- 3:16 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5882
- Sewer Name
- 32 SAN FERNANDO ROAD TRUNK
- City
- SANTA CLARITA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_717961_TV32021_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1161
- Downstream MH
- 32 1160
- Dir. of Survey
- Downstream
- Length Surveyed
- 85.5 ft.
- Total Length
- 85.5 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 51
- O&M Index
- 3
- O&M Quick
- 413B
- O&M Rating
- 55
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 106
Observation photos (2)

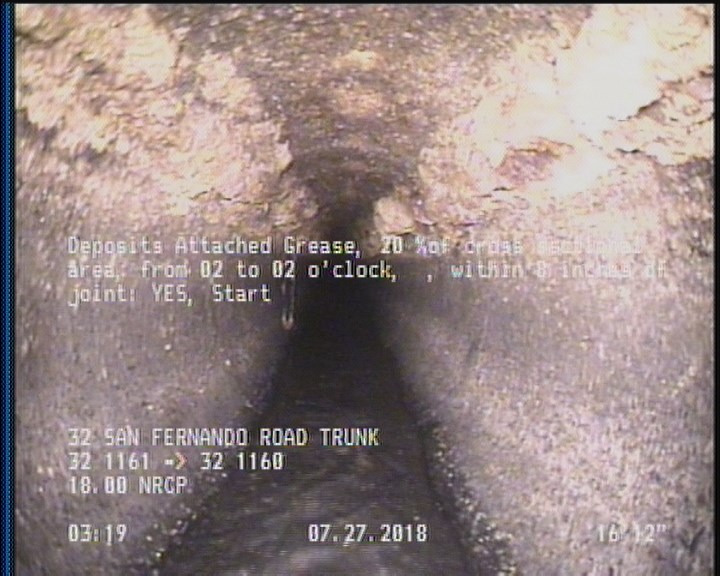

2 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 02 to 02 o'clock, , within 8 inches of joint: YES, Start

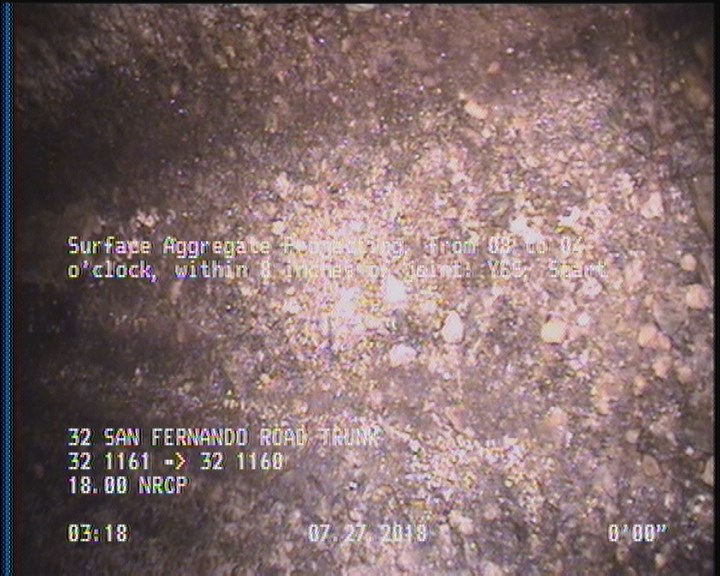

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 32 1161 |
| 2 | DAGS | — |
| 85.4 | SAP | — |
| 0 | MWM | — |
| 2 | SAP | — |
| 85.4 | DAGS | — |
| 85.5 | AMH | 32 1160 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC359750
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-27T03:16:58-07:00
