Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 1, 2018, 10:47 AM

  • C 0683_C 0682 _01082018_035547.mp4

Date
08/01/2018
W/O
717781
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00126
PipeID
P24966
Time
3:47 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5959
Sewer Name
C JOINT OUTFALL C - UNIT 4A
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Routine Assessment
Project
WO_717781_TV03150_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
C 0683
Downstream MH
C 0682
Dir. of Survey
Downstream
Length Surveyed
85.3 ft.
Total Length
85.3 ft.
Structural Index
4
Structural Quick
4B31
Structural Rating
63
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
63
Pipe schematic from manhole C 0683 to C 0682
MH: C 0683MH: C 0682downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 06830.4 ft. MGO - General Observation - CONNECTION AT MH 2 O'CLOCK0.4 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK4.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish7.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start85.3 ft. AMH - Downstream Manhole, Survey Ends - C 068285.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK85.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

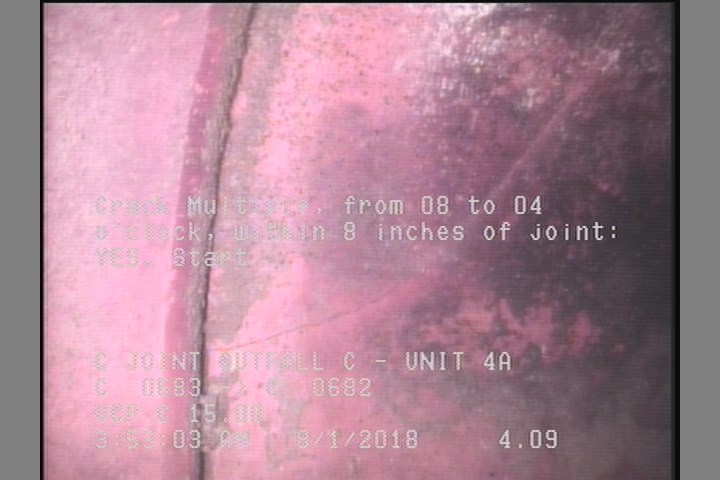

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

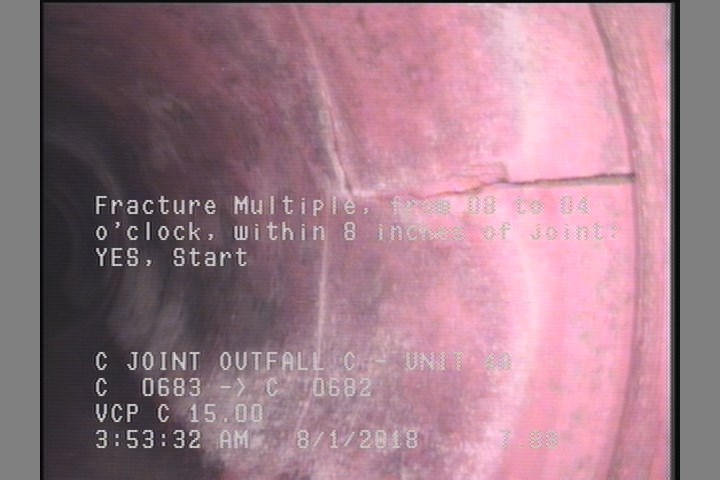

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P24966Work order 717781

Observations (11)

DistanceCodeObservation
0.4MGOCONNECTION AT MH 2 O'CLOCK
85.3AMHC 0682
0MWL—
85.3MGOCONNECTION AT MH 3 O'CLOCK
0MWM—
0AMHC 0683
4.1CM—
0.4MGOCONNECTION AT MH 3 O'CLOCK
7.6CM—
7.8FM—
85.3FM—

Properties (4)

additional_info
SC364722
custom_field_two
2
customer
LACSD
datetime
2018-08-01T03:47:29-07:00
