Wastewater/Activity/PacpInspection/1.0May 4, 2018, 08:18 AM
02 2242_02 0990 _04052018_013017.mp4
- Date
- 05/04/2018
- W/O
- 695978
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00279
- PipeID
- P03562
- Time
- 1:18 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5609
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- COMMERCE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_695978_TV02334_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0990
- Downstream MH
- 02 2242
- Dir. of Survey
- Upstream
- Length Surveyed
- 222.8 ft.
- Total Length
- 222.8 ft.
- Structural Index
- 4
- Structural Quick
- 4232
- Structural Rating
- 14
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

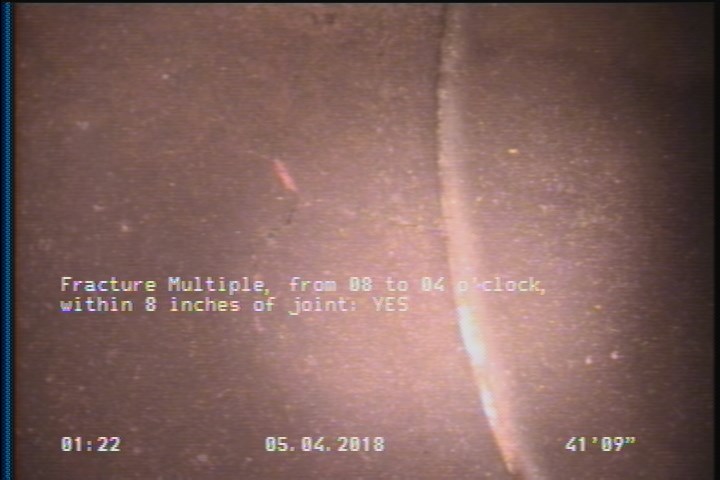

41.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

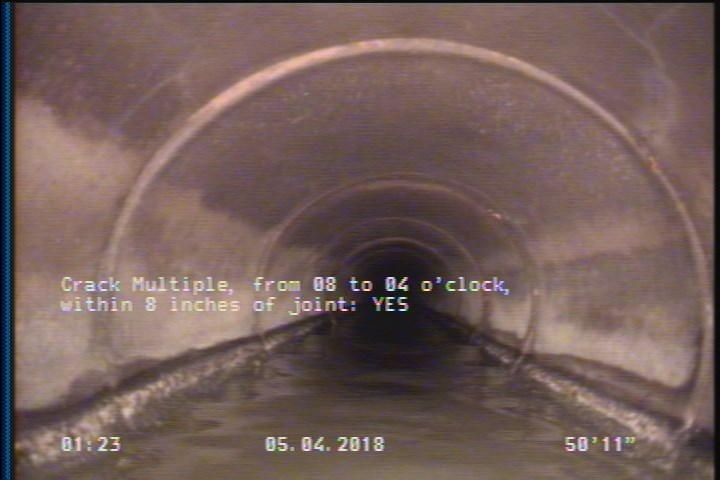

50.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

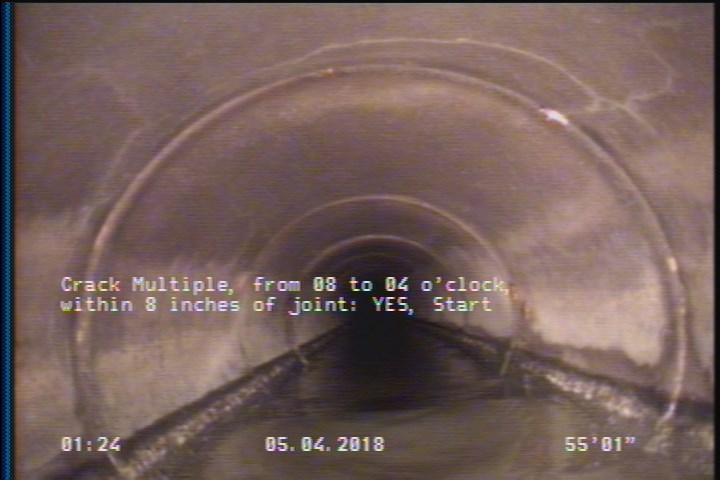

55.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

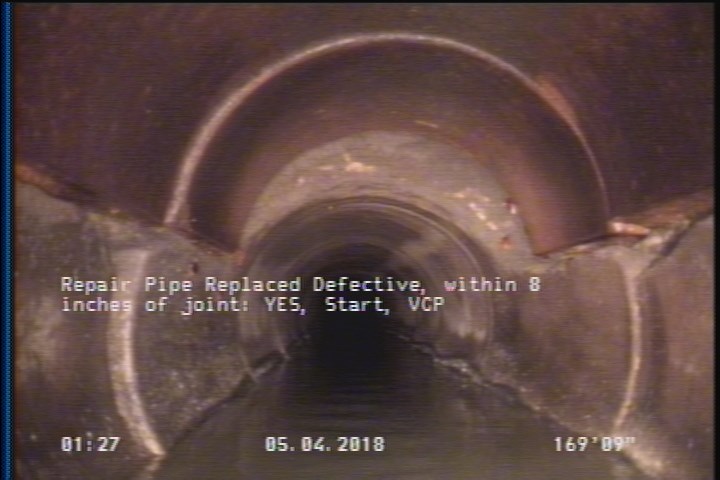

169.8 ft. - Repair Pipe Replaced Defective, within 8 inches of joint: YES, Start - VCP
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 222.8 | AMH | 02 2242 |
| 0 | AMH | 02 0990 |
| 55.1 | CM | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 41.6 | FM | — |
| 50.9 | CM | — |
| 199.8 | CM | — |
| 0 | MWL | — |
| 169.8 | RPRD | VCP |
| 176.3 | RPRD | VCP |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC359161
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-04T01:18:13-07:00
