Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 3, 2018, 09:42 AM

  • 01 0093_01 0092_03052018_025506.mp4

Date
05/03/2018
W/O
695951
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00209
PipeID
P00762
Time
2:42 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5554
Sewer Name
01 HOOPER AVENUE-COMPTON CREEK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
06
Purpose
Routine Assessment
Project
WO_695951_TV01254_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0093
Downstream MH
01 0092
Dir. of Survey
Downstream
Length Surveyed
333 ft.
Total Length
333.1 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
198
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
201
Pipe schematic from manhole 01 0093 to 01 0092
MH: 01 0093MH: 01 0092downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 00930 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start89.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"140 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"193 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start193 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish209.4 ft. RML - Roots Medium Lateral, at 02 o'clock, 20 %, within 8 inches of joint: NO209.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"234.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start234.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish260.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"333.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish333.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK333.1 ft. AMH - Downstream Manhole, Survey Ends - 01 0092333.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (3)

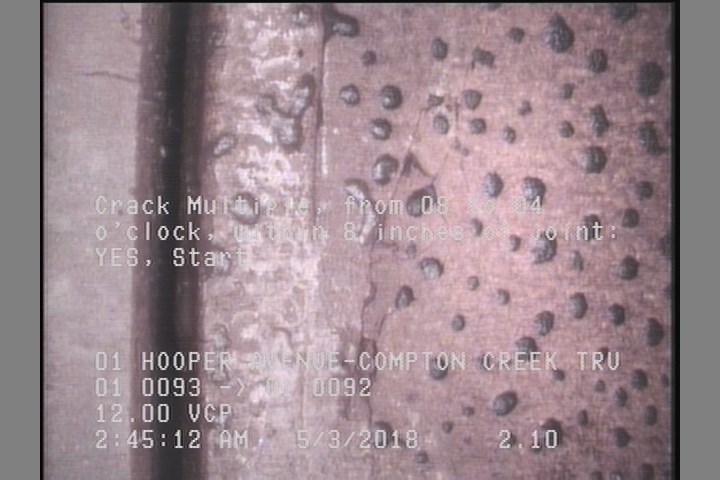

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

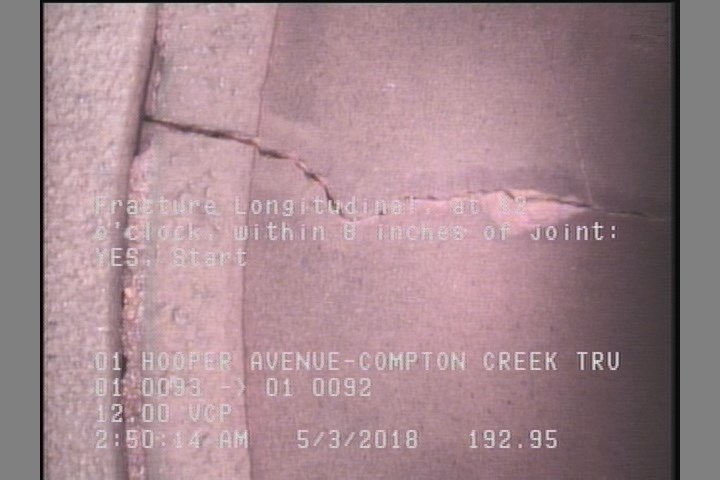

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    193 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

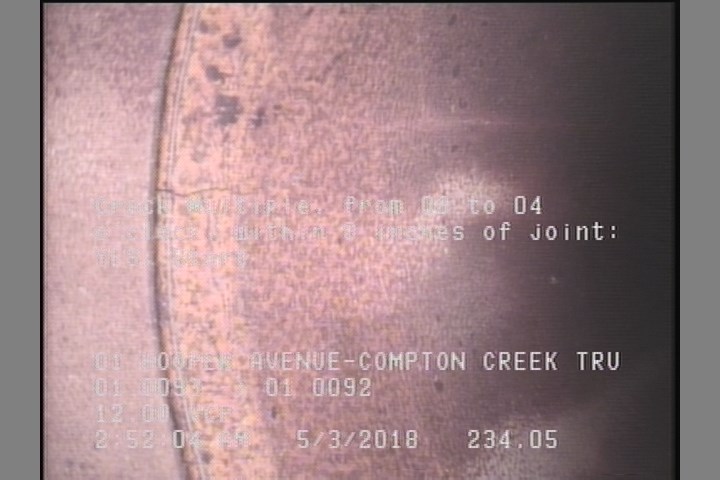

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    234.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P00762Work order 695951

Observations (19)

DistanceCodeObservation
333.1CM—
234.1CM—
333.1MGOCONNECTION AT MH 3 O'CLOCK
2.1CM—
140TF—
333.1AMH01 0092
260.3TFC—
0MGOCONNECTION AT MH 3 O'CLOCK
0MGOCONNECTION AT MH 9 O'CLOCK
209.4RML—
333.1MGOCONNECTION AT MH 9 O'CLOCK
193FL—
209.4TF—
0MWM—
0AMH01 0093
89.3TFC—
0MWL—
234.1FL—
193CM—

Properties (4)

additional_info
SC359309
custom_field_two
2
customer
LACSD
datetime
2018-05-03T02:42:40-07:00
