Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 1, 2018, 07:48 AM

  • B 1096_B 1095 _01052018_010715.mp4

Date
05/01/2018
W/O
695771
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z01124
PipeID
P13721
Time
12:48 AM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5546
Sewer Name
B JOINT OUTFALL B - UNIT 6G
City
ALHAMBRA, CA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
04
Purpose
Routine Assessment
Project
WO_695771_TV02344_APR2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
B 1096
Downstream MH
B 1095
Dir. of Survey
Downstream
Length Surveyed
802.8 ft.
Total Length
802.8 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole B 1096 to B 1095
MH: B 1096MH: B 1095downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MWL - Water Level, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B10966.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start7.1 ft. MGO - General Observation - MAG COAT20.4 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"455.2 ft. MGP - General Photograph - CONDITION799.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish802.8 ft. AMH - Downstream Manhole, Survey Ends - B1095

Observation photos (3)

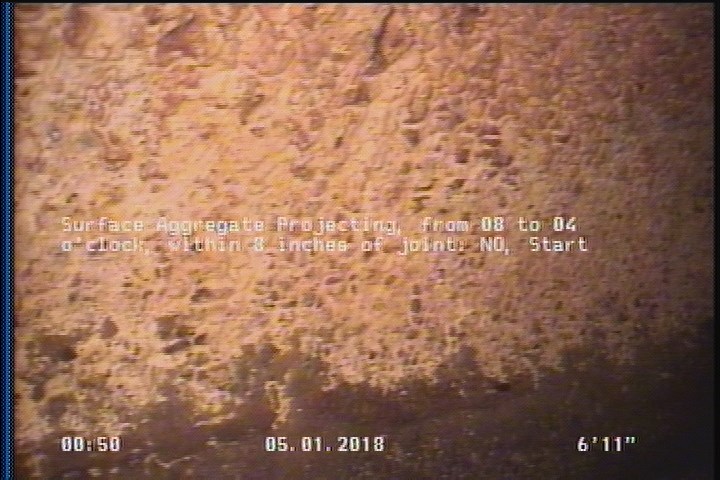

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    6.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

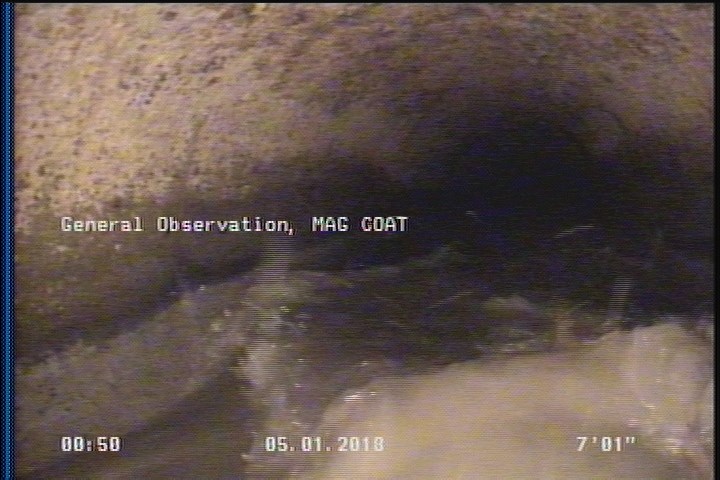

  • General Observation - MAG COAT

    7.1 ft. - General Observation - MAG COAT

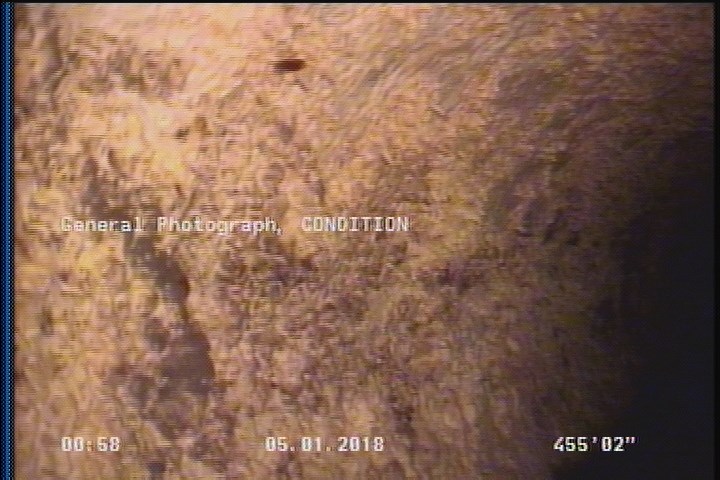

  • General Photograph - CONDITION

    455.2 ft. - General Photograph - CONDITION

All inspections of P13721Work order 695771

Observations (9)

DistanceCodeObservation
0MWM—
6.9SAP—
455.2MGPCONDITION
802.8AMHB1095
7.1MGOMAG COAT
0MWL—
799.6SAP—
0AMHB1096
20.4TB—

Properties (4)

additional_info
SC359154
custom_field_two
3
customer
LACSD
datetime
2018-05-01T00:48:07-07:00
