Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 2, 2018, 08:18 AM

  • 03 0038_03 0037_02082018_012109.mp4

Date
08/02/2018
W/O
718155
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00366
PipeID
P05058
Time
1:18 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5961
Sewer Name
03 LOS COYOTES DIAGONAL TRUNK
City
LAKEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
13
Purpose
Routine Assessment
Project
WO_718155_TV03159_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
03 0038
Downstream MH
03 0037
Dir. of Survey
Downstream
Length Surveyed
324.4 ft.
Total Length
324.4 ft.
Structural Index
3
Structural Quick
413H
Structural Rating
145
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
145
Pipe schematic from manhole 03 0038 to 03 0037
MH: 03 0038MH: 03 0037downstream0 ft. AMH - Upstream Manhole, Survey Begins - 03 00380 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK9.6 ft. TS - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"66.1 ft. TS - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"84.7 ft. CM - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES95.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start122.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"163.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"199.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"245.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"301.1 ft. FM - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES303 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"324.4 ft. AMH - Downstream Manhole, Survey Ends - 03 0037324.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

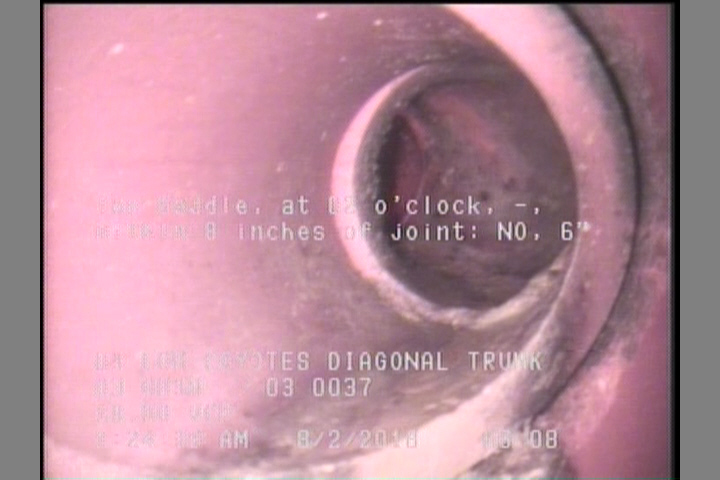

  • Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    9.6 ft. - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

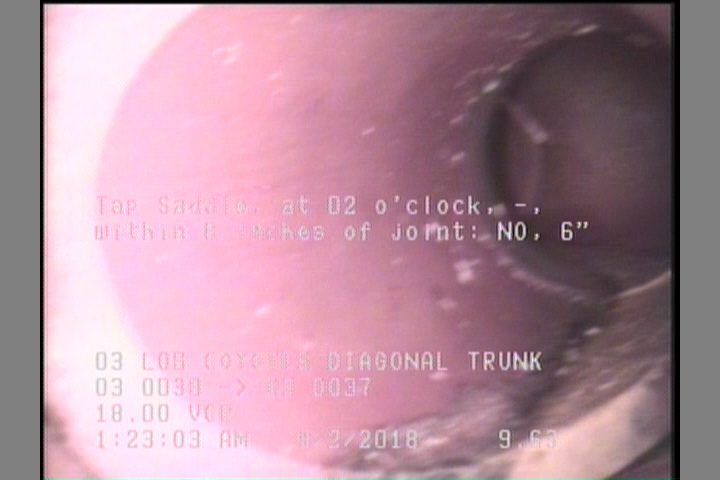

  • Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    66.1 ft. - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

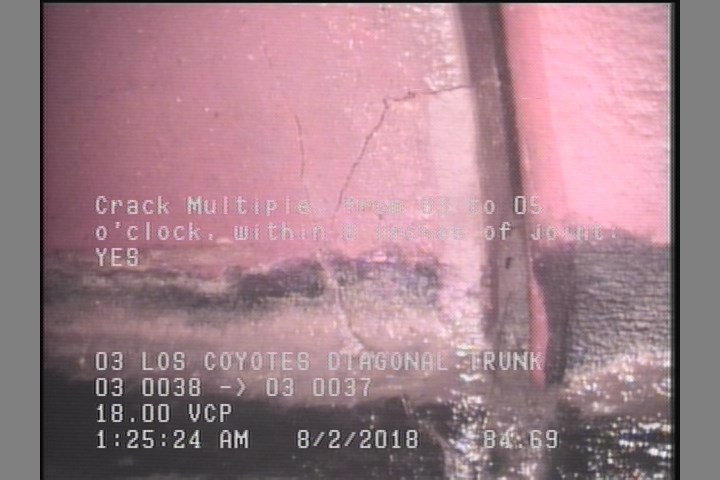

  • Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

    84.7 ft. - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

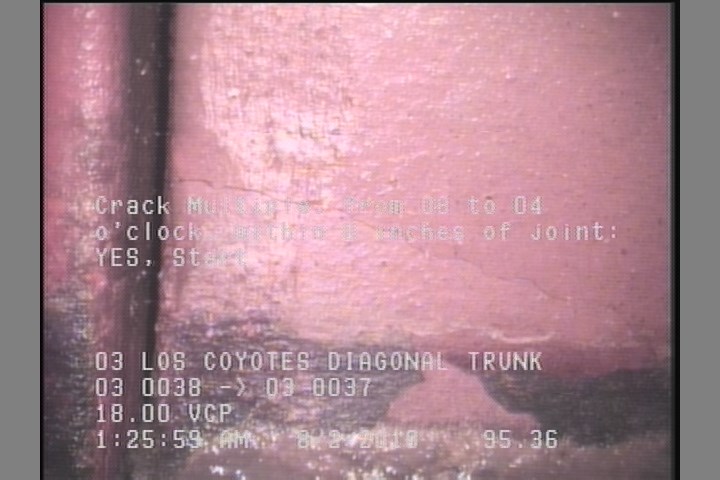

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    95.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

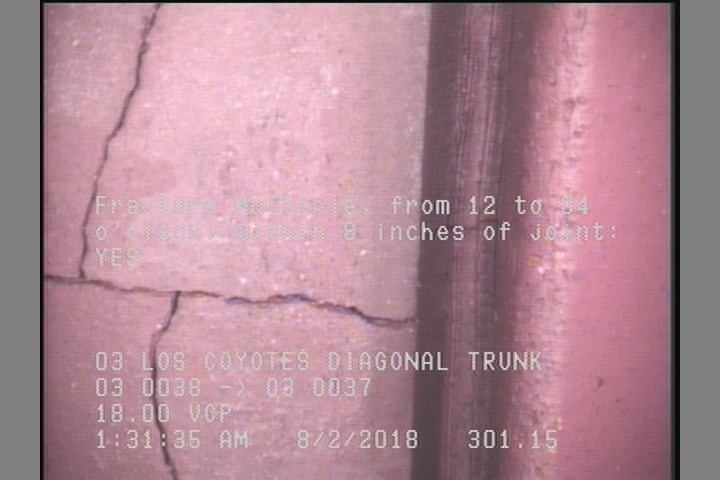

  • Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

    301.1 ft. - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

All inspections of P05058Work order 718155

Observations (16)

DistanceCodeObservation
66.1TS—
301.1FM—
0AMH03 0038
163.7TF—
324.4AMH03 0037
9.6TS—
303TF—
95.4CM—
324.4CM—
84.7CM—
199.9TF—
245.6TF—
0MWM—
0MWL—
122.5TF—
0MGOCONNECTION AT MH 9 O'CLOCK

Properties (4)

additional_info
SC364724
custom_field_two
3
customer
LACSD
datetime
2018-08-02T01:18:52-07:00
