Wastewater/Activity/PacpInspection/1.0Aug 3, 2018, 06:51 AM
32 1175_32 1174_03082018_000736.mp4
- Date
- 08/02/2018
- W/O
- 718145
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00839
- PipeID
- P19629
- Time
- 11:51 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5891
- Sewer Name
- 32 SAN FERNANDO ROAD TRUNK
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_718145_TV32052_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1175
- Downstream MH
- 32 1174
- Dir. of Survey
- Downstream
- Length Surveyed
- 393.5 ft.
- Total Length
- 393.5 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 93
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 156
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 249
Observation photos (3)

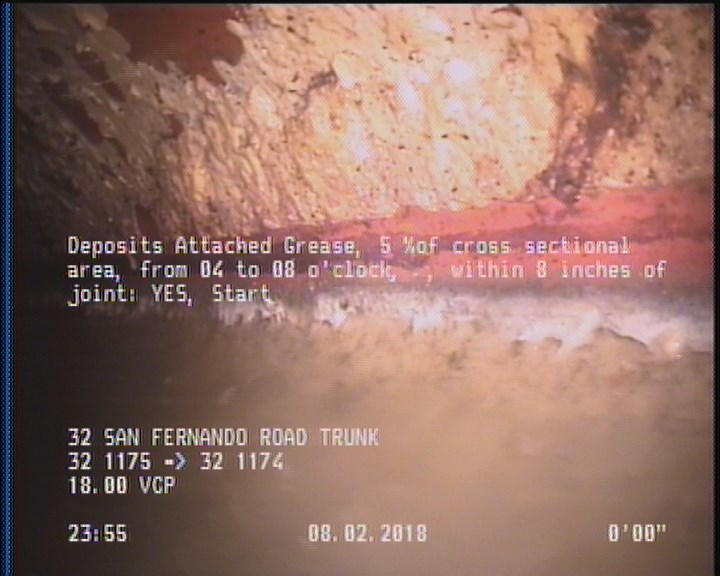

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

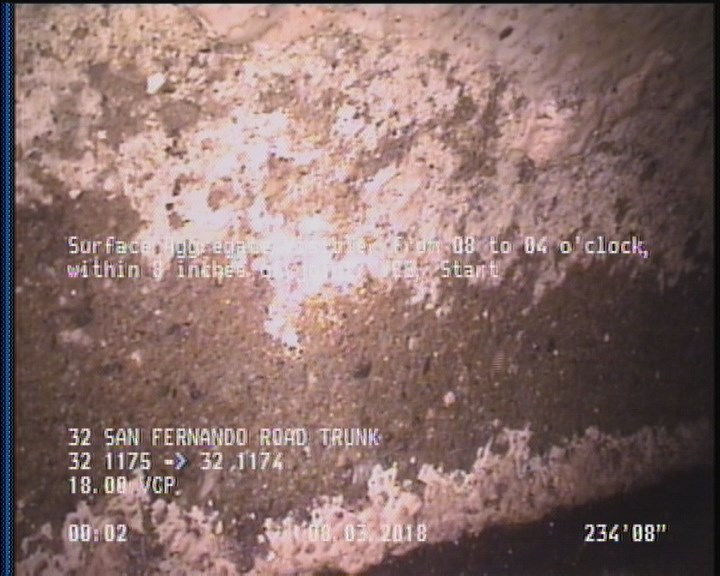

234.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

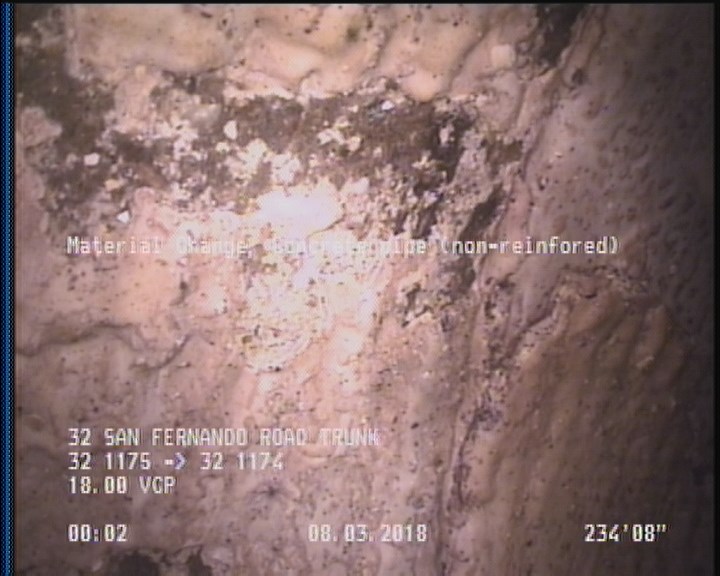

234.6 ft. - Material Change, Concrete pipe (non-reinfored)
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 392.1 | DAGS | — |
| 0 | MGO | MAG COATING 60% |
| 0 | MWL | — |
| 393.5 | AMH | 32 1174 |
| 234.6 | SAV | — |
| 218 | TFA | — |
| 373.9 | TBA | — |
| 234.6 | MMC | — |
| 392.1 | SAV | — |
| 0 | AMH | 32 1175 |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTONI AT MH 9 O'CLOCK |
Properties (4)
- additional_info
- SC364759
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-02T23:51:51-07:00
