Wastewater/Activity/PacpInspection/1.0Jul 31, 2018, 09:50 AM
A 1138_A 1137 _31072018_025554.mp4
- Date
- 07/31/2018
- W/O
- 717856
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00973
- PipeID
- P02789
- Time
- 2:50 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5803
- Sewer Name
- A JOINT OUTFALL A - UNIT 9
- City
- PARAMOUNT
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_717856_TV02134_AUG2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- A 1137
- Downstream MH
- A 1138
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

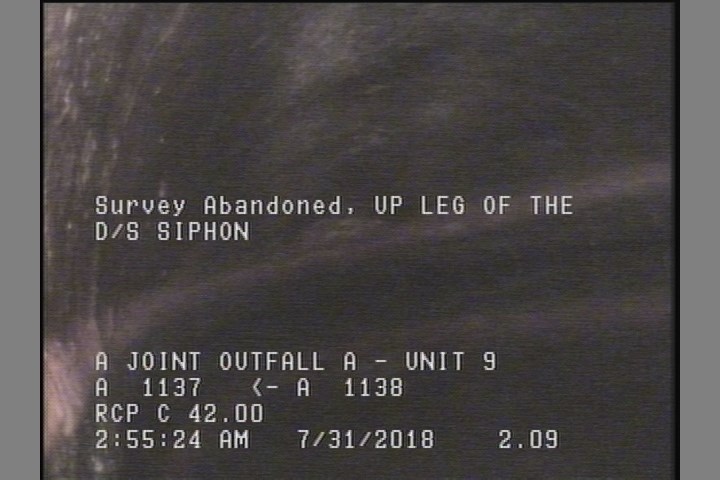

2.1 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON

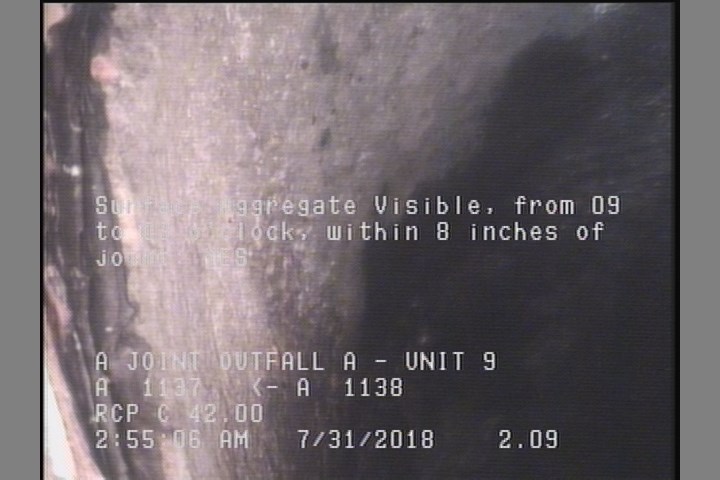

2.1 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | UP LEG OF THE D/S SIPHON |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | A 1137 |
| 2.1 | SAV | — |
Properties (4)
- additional_info
- SC364716
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-31T02:50:44-07:00
