Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 20, 2018, 10:59 AM

  • 05 1804_05 1803 _20072018_041708.mp4

Date
07/20/2018
W/O
717852
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00466
PipeID
P07026
Time
3:59 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5786
Sewer Name
05 JANET LANE TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
31
Purpose
Routine Assessment
Project
WO_717852_TV05329_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 1804
Downstream MH
05 1803
Dir. of Survey
Downstream
Length Surveyed
321 ft.
Total Length
321 ft.
Structural Index
3
Structural Quick
423L
Structural Rating
197
O&M Index
1
O&M Quick
431H
O&M Rating
59
Overall Index
2
Overall Quick
—
Overall Rating
256
Pipe schematic from manhole 05 1804 to 05 1803
MH: 05 1804MH: 05 1803downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 18040 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area1.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES4.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES22.4 ft. RFJ - Roots Fine Joint, from 08 to 01 o'clock, within 8 inches of joint: YES49 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start69.7 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"69.7 ft. RBL - Roots Ball Lateral, at 10 o'clock, 90 %100.5 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"177 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"177 ft. RBL - Roots Ball Lateral, at 10 o'clock, 95 %177 ft. RFC - Roots Fine Connection, from 07 to 10 o'clock199 ft. FM - Fracture Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES202.9 ft. RBL - Roots Ball Lateral, at 10 o'clock, 85 %202.9 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"271.4 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish316.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish316.3 ft. FM - Fracture Multiple, from 01 to 09 o'clock, within 8 inches of joint: YES321 ft. AMH - Downstream Manhole, Survey Ends - 05 1803

Observation photos (6)

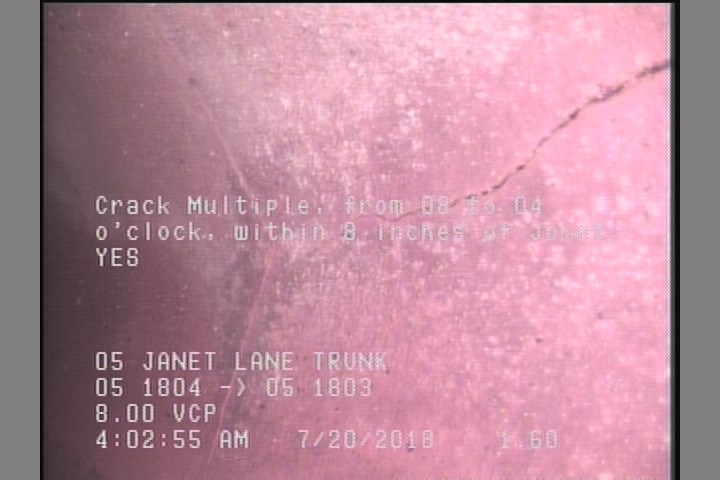

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    1.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

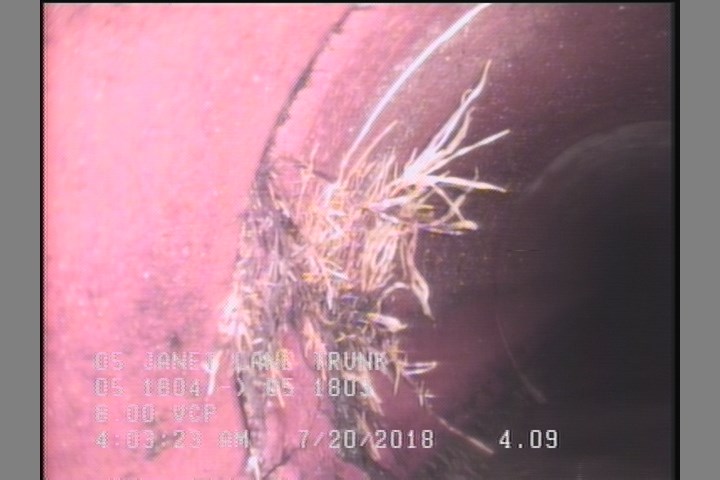

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

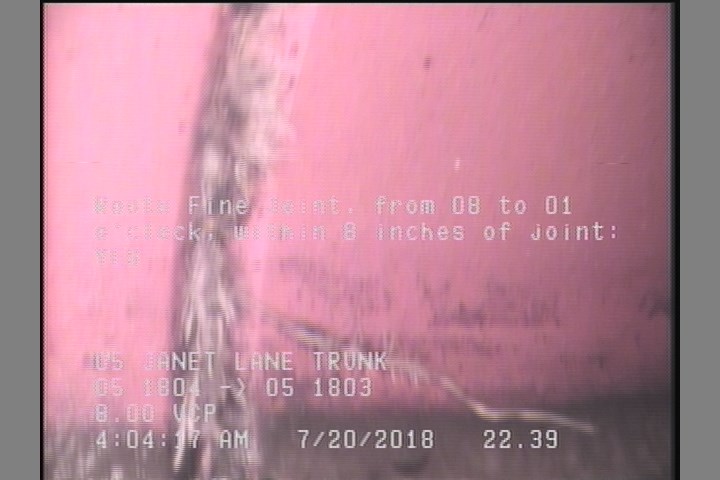

  • Roots Fine Joint, from 08 to 01 o'clock, within 8 inches of joint: YES

    22.4 ft. - Roots Fine Joint, from 08 to 01 o'clock, within 8 inches of joint: YES

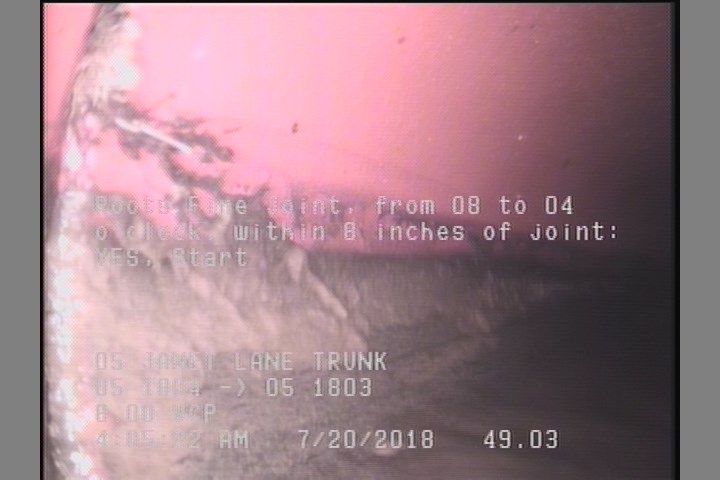

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    49 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

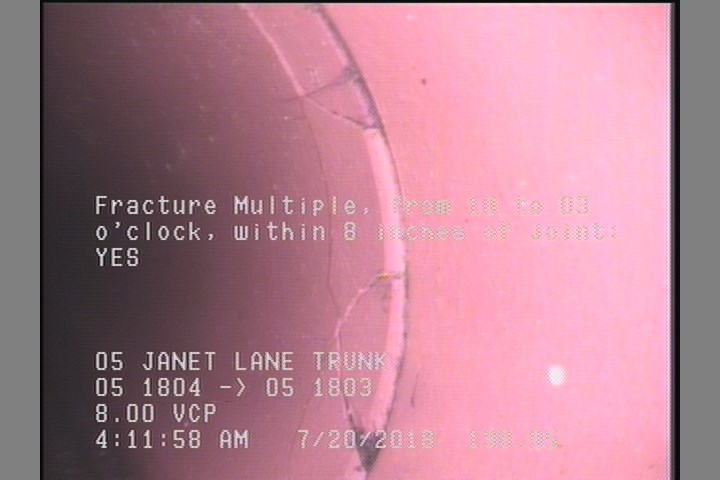

  • Fracture Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

    199 ft. - Fracture Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

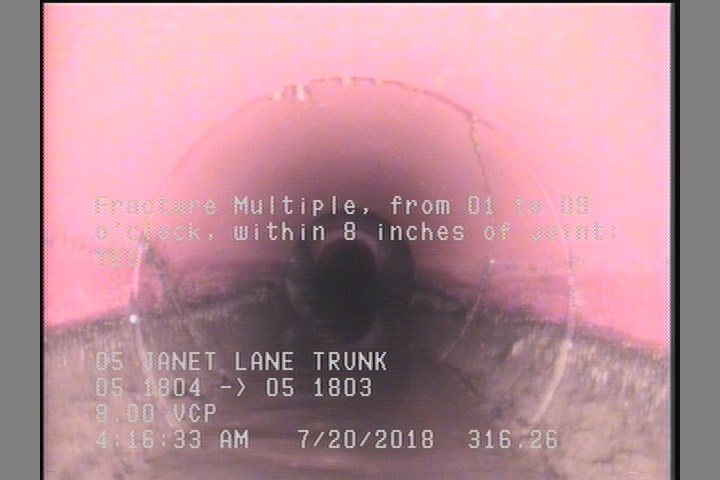

  • Fracture Multiple, from 01 to 09 o'clock, within 8 inches of joint: YES

    316.3 ft. - Fracture Multiple, from 01 to 09 o'clock, within 8 inches of joint: YES

All inspections of P07026Work order 717852

Observations (21)

DistanceCodeObservation
316.3CM—
177TF—
4.1CM—
202.9RBL—
202.9TB—
22.4RFJ—
0AMH05 1804
0MWM—
49RFJ—
69.7TB—
177RBL—
271.4RFJ—
69.7RBL—
1.6CM—
316.3FM—
177RFC—
199FM—
100.5TB—
0MWL—
4.1RFJ—
321AMH05 1803

Properties (4)

additional_info
SC359697
custom_field_two
3
customer
LACSD
datetime
2018-07-20T03:59:09-07:00
