Wastewater/Activity/PacpInspection/1.0Jun 8, 2018, 10:00 AM
B 0469_B 0468 _08062018_030641.mp4
- Date
- 06/08/2018
- W/O
- 706863
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00094
- PipeID
- P08989
- Time
- 3:00 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5691
- Sewer Name
- B JOINT OUTFALL B - UNIT 5D
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_706863_TV16037_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- B 0469
- Downstream MH
- B 0468
- Dir. of Survey
- Downstream
- Length Surveyed
- 183.2 ft.
- Total Length
- 183.2 ft.
- Structural Index
- 3
- Structural Quick
- 3F00
- Structural Rating
- 108
- O&M Index
- 1
- O&M Quick
- 1C00
- O&M Rating
- 19
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 127
Observation photos (3)

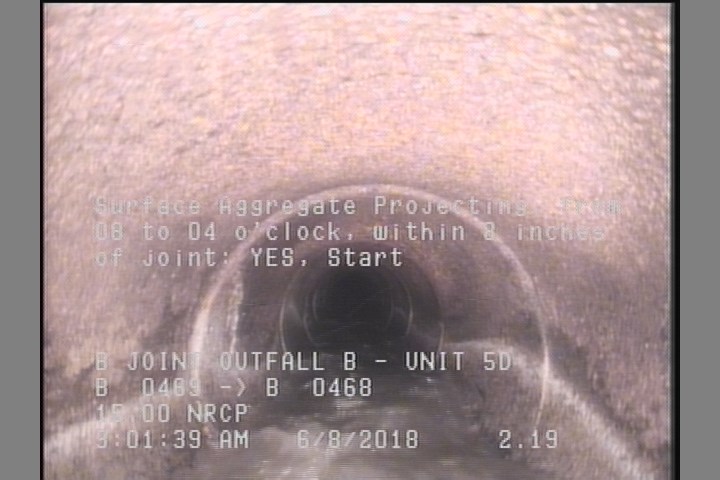

2.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

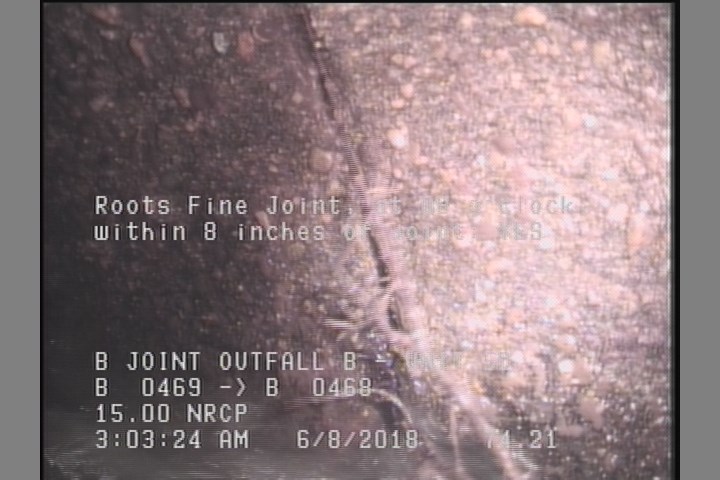

74.2 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

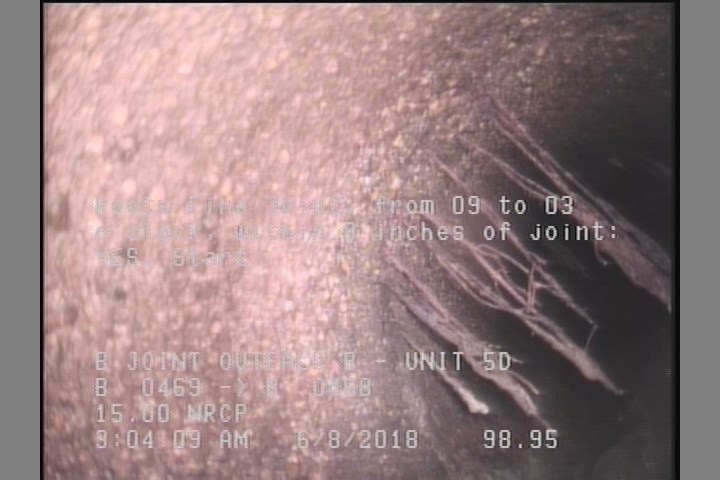

99 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 99 | RFJ | — |
| 0 | AMH | B 0469 |
| 183.2 | RFJ | — |
| 2.2 | SAP | — |
| 183.2 | SAP | — |
| 183.2 | AMH | B 0468 |
| 74.2 | RFJ | — |
| 0 | MWM | — |
| 112.1 | TF | — |
| 0 | MWL | — |
| 112.1 | RFL | — |
Properties (4)
- additional_info
- SC359350
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-08T03:00:12-07:00
