Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 8, 2018, 08:27 AM

  • B 0470A_B 0470 _08062018_013321.mp4

Date
06/08/2018
W/O
706863
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00094
PipeID
P08991
Time
1:27 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5691
Sewer Name
B JOINT OUTFALL B - UNIT 5D
City
PASADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
07
Purpose
Routine Assessment
Project
WO_706863_TV16037_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
B 0470A
Downstream MH
B 0470
Dir. of Survey
Downstream
Length Surveyed
101.3 ft.
Total Length
101.3 ft.
Structural Index
3
Structural Quick
3C00
Structural Rating
60
O&M Index
1
O&M Quick
1700
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
67
Pipe schematic from manhole B 0470A to B 0470
MH: B 0470AMH: B 0470downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 0470A3.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start44.2 ft. RFJ - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES70.8 ft. RFJ - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES, Start90.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"95.3 ft. RFJ - Roots Fine Joint, from 08 to 02 o'clock, within 8 inches of joint: YES95.3 ft. RFJ - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES, Finish101.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK101.3 ft. AMH - Downstream Manhole, Survey Ends - B 0470101.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

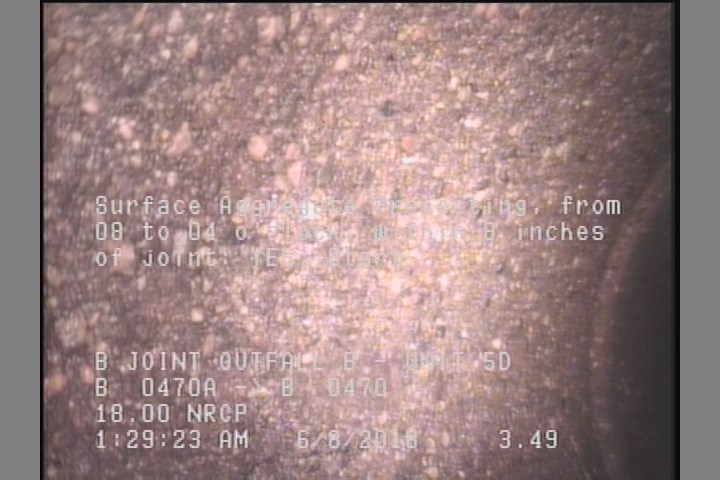

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

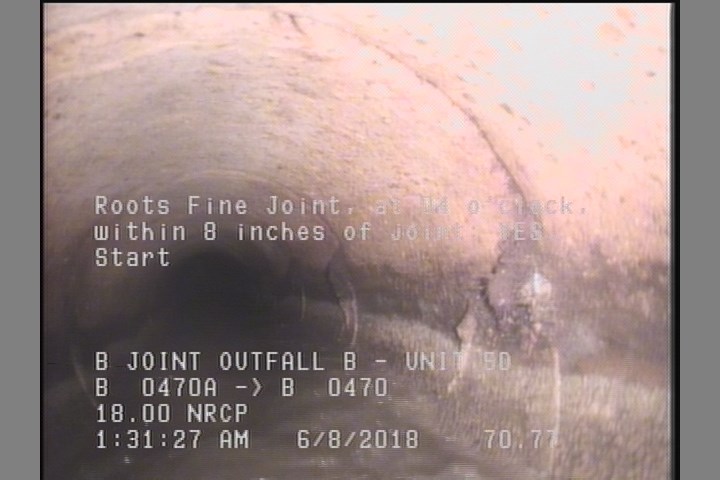

  • Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES, Start

    70.8 ft. - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P08991Work order 706863

Observations (13)

DistanceCodeObservation
101.3MGOCONNECTION AT MH 9 O'CLOCK
70.8RFJ—
95.3RFJ—
90.7TF—
95.3RFJ—
0MWL—
0MGOCONNECTION AT MH 9 O'CLOCK
0MWM—
101.3AMHB 0470
44.2RFJ—
0AMHB 0470A
101.3SAP—
3.5SAP—

Properties (4)

additional_info
SC359350
custom_field_two
3
customer
LACSD
datetime
2018-06-08T01:27:46-07:00
