Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 19, 2018, 10:29 AM

  • B 0463A_B 0463 _19062018_033826.mp4

Date
06/19/2018
W/O
706863
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00094
PipeID
P08977
Time
3:29 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5735
Sewer Name
B JOINT OUTFALL B - UNIT 5D
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Routine Assessment
Project
WO_706863_TV16037_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
B 0463
Downstream MH
B 0463A
Dir. of Survey
Upstream
Length Surveyed
219.1 ft.
Total Length
219.1 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
132
O&M Index
2
O&M Quick
2H00
O&M Rating
86
Overall Index
3
Overall Quick
—
Overall Rating
218
Pipe schematic from manhole B 0463 to B 0463A
MH: B 0463MH: B 0463Aupstream0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - B 0463A0 ft. MGO - General Observation - COCKROACHES IN MANHOLE214.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES217.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start217.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start219.1 ft. MWL - Water Level, 15 %of cross sectional area219.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK219.1 ft. MWM - Water Mark, 40 %of cross sectional area219.1 ft. AMH - Downstream Manhole, Survey Begins - B 0463

Observation photos (3)

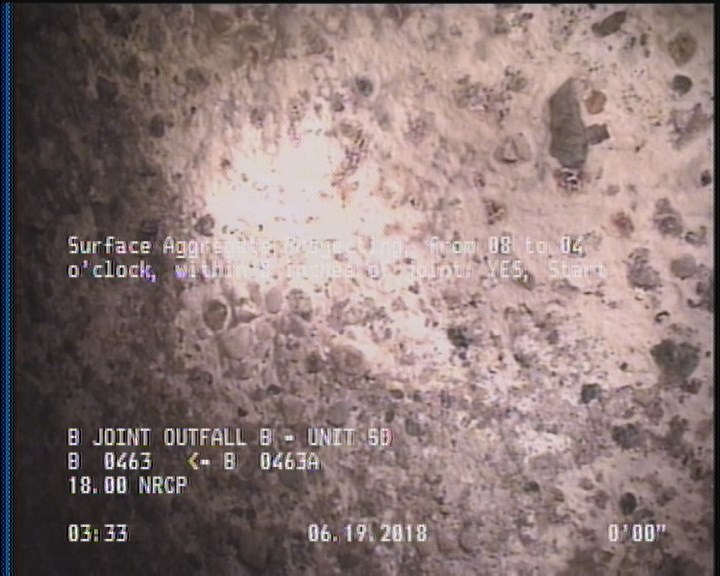

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

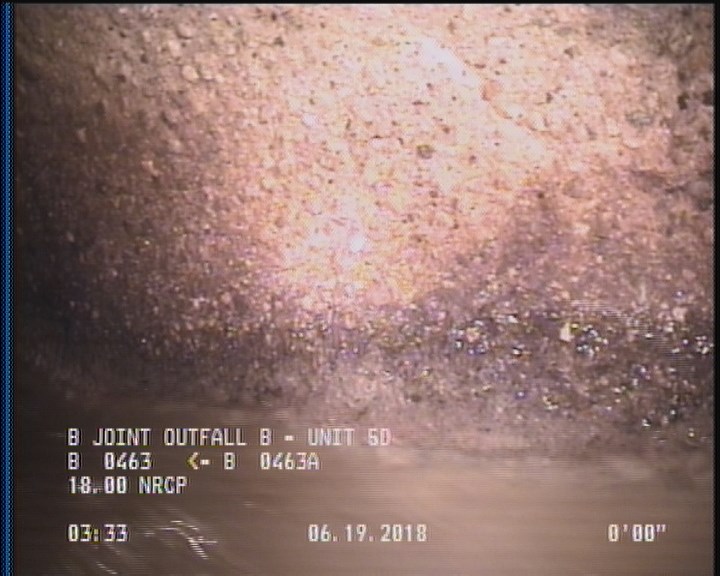

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

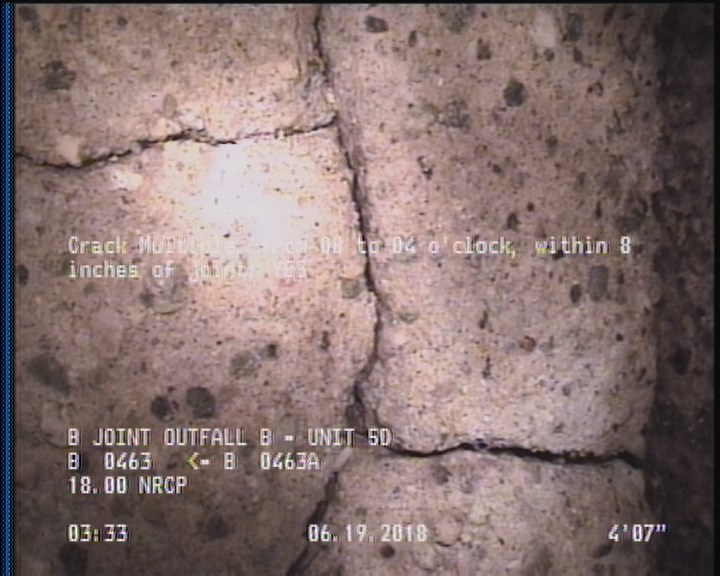

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    4.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P08977Work order 706863

Observations (12)

DistanceCodeObservation
2SAP—
219.1DAGS—
219.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
2DAGS—
0MWL—
0MGOACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK
219.1SAP—
219.1AMHB 0463A
4.6CM—
219.1MGOCOCKROACHES IN MANHOLE
0MWM—
0AMHB 0463

Properties (4)

additional_info
SC359701
custom_field_two
2
customer
LACSD
datetime
2018-06-19T03:29:11-07:00
