Wastewater/Activity/PacpInspection/1.0Jun 8, 2018, 05:02 AM
B 0478_B 0477 _07062018_231200.mp4
- Date
- 06/07/2018
- W/O
- 706863
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00094
- PipeID
- P09003
- Time
- 10:02 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5691
- Sewer Name
- B JOINT OUTFALL B - UNIT 5D
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_706863_TV16037_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- B 0478
- Downstream MH
- B 0477
- Dir. of Survey
- Downstream
- Length Surveyed
- 157.8 ft.
- Total Length
- 157.8 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 93
- O&M Index
- 2
- O&M Quick
- 3113
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 99
Observation photos (3)

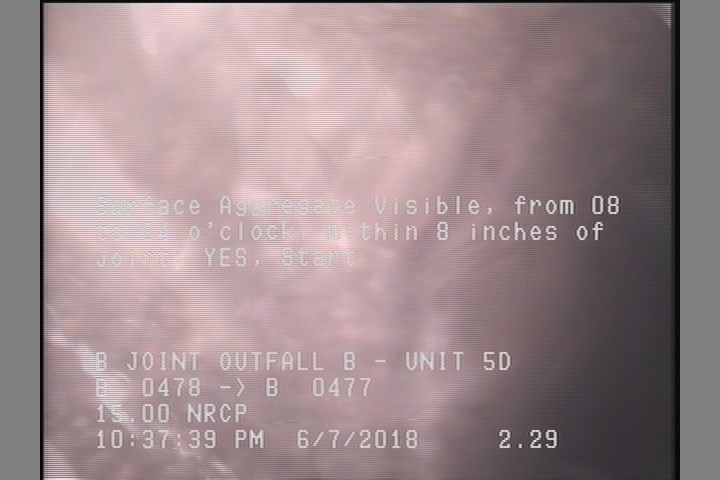

2.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

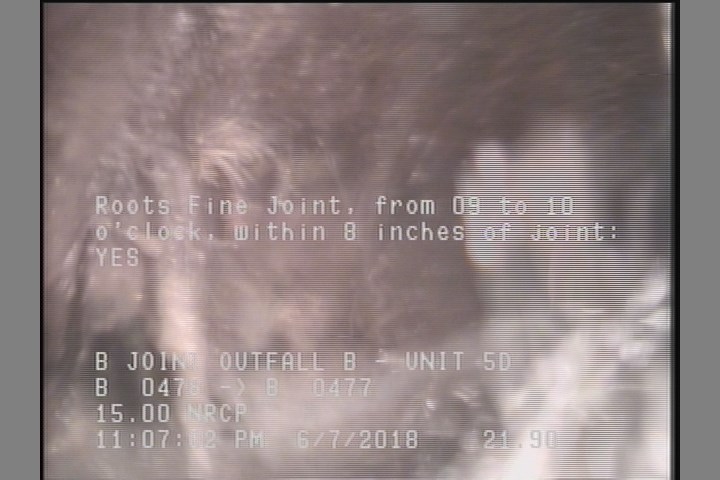

21.9 ft. - Roots Fine Joint, from 09 to 10 o'clock, within 8 inches of joint: YES

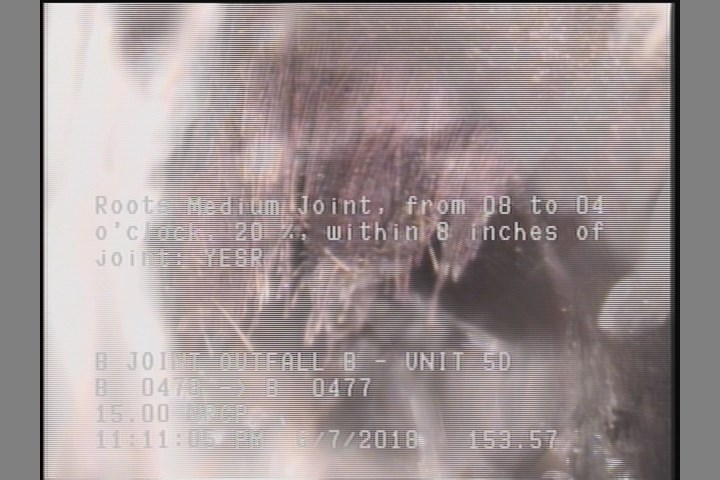

153.6 ft. - Roots Medium Joint, from 08 to 04 o'clock, 20 %, within 8 inches of joint: YESR
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 157.8 | AMH | B 0477 |
| 59 | RFJ | — |
| 2.3 | SAV | — |
| 153.6 | RMJ | — |
| 157.8 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 21.9 | RFJ | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 130.3 | RFJ | — |
| 0 | AMH | B 0478 |
| 157.8 | SAV | — |
Properties (4)
- additional_info
- SC359350
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-07T22:02:41-07:00
