Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 26, 2018, 07:40 AM

  • 29 0377_29 0376 _26072018_005538.mpg

Date
07/26/2018
W/O
717991
Weather
Dry
Operator/Surveyor
E. RUIZ
Sewer ID
Z00537
PipeID
P24414
Time
12:40 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5324
Sewer Name
29 21ST STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
04
Purpose
Routine Assessment
Project
WO_717991_TV29055_AUG2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0377
Downstream MH
29 0376
Dir. of Survey
Downstream
Length Surveyed
331.3 ft.
Total Length
331.3 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
195
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
195
Pipe schematic from manhole 29 0377 to 29 0376
MH: 29 0377MH: 29 0376downstream0 ft. AMH - Upstream Manhole, Survey Begins - 29 03770 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area6.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start38.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"123.6 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES141.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"150.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"244.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"252.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"328.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish331.3 ft. AMH - Downstream Manhole, Survey Ends - 29 0376

Observation photos (2)

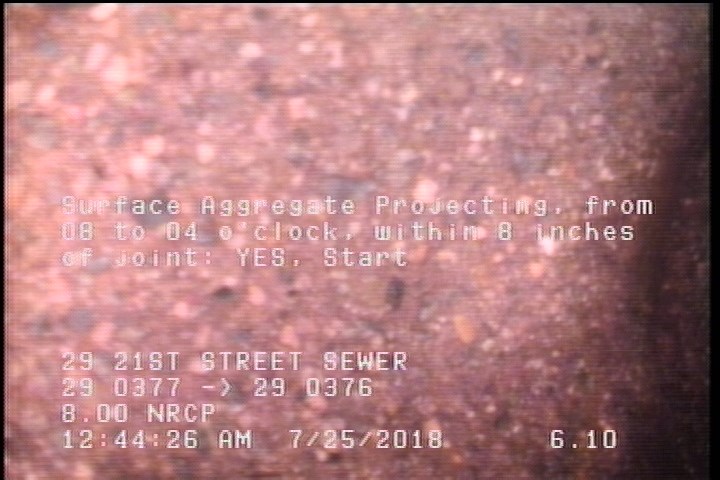

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

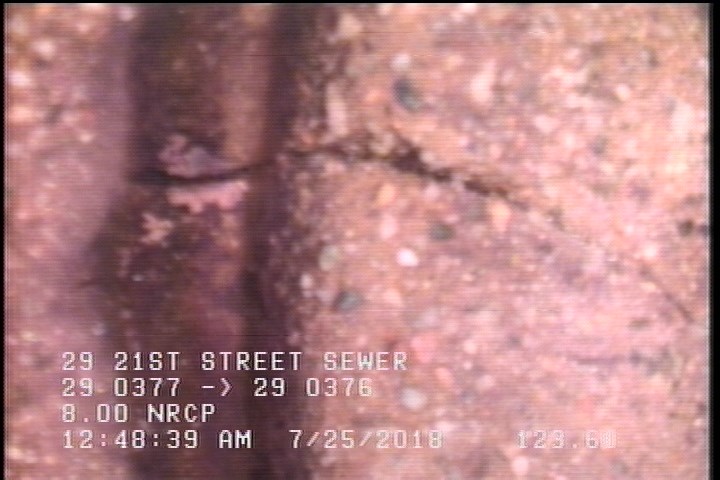

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    123.6 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

All inspections of P24414Work order 717991

Observations (12)

DistanceCodeObservation
252.1TFA—
331.3AMH29 0376
38.7TF—
0AMH29 0377
123.6CM—
0MWL—
6.1SAP—
244.8TF—
0MWM—
150.9TFA—
141.1TF—
328.6SAP—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-07-26T00:40:41-07:00
