Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 27, 2018, 10:14 AM

  • 29 0099_29 0083 _27072018_033055.mpg

Date
07/27/2018
W/O
717885
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00273
PipeID
P23882
Time
3:14 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5326
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_717885_TV29102_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0083
Downstream MH
29 0099
Dir. of Survey
Upstream
Length Surveyed
249.1 ft.
Total Length
249.2 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 29 0083 to 29 0099
MH: 29 0083MH: 29 0099upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 009919.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"27.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"27.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"71.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES77.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"104.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - ROOTS IN LATERAL104.9 ft. CM - Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES124.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"152 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - FRACTURE AT TAP173.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - ROOTS IN LATERAL175.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - ROOTS IN LATERAL238.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES249.2 ft. MWM - Water Mark, 5 %of cross sectional area249.2 ft. AMH - Downstream Manhole, Survey Begins - 29 0083249.2 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (4)

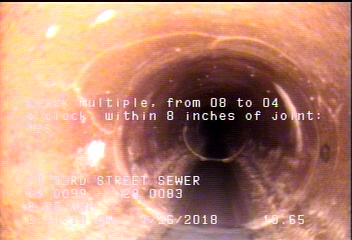

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    10.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

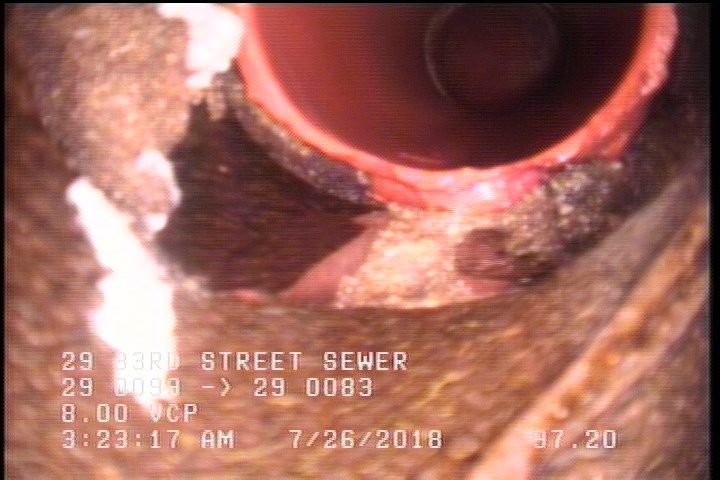

  • Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - FRACTURE AT TAP

    97.2 ft. - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - FRACTURE AT TAP

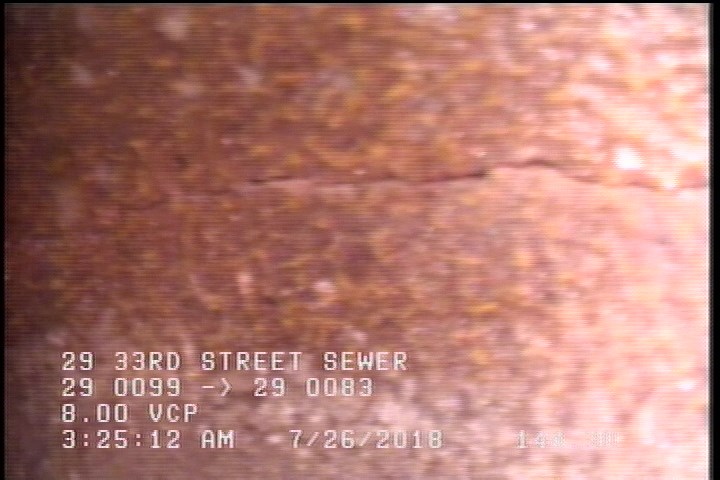

  • Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES

    144.3 ft. - Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES

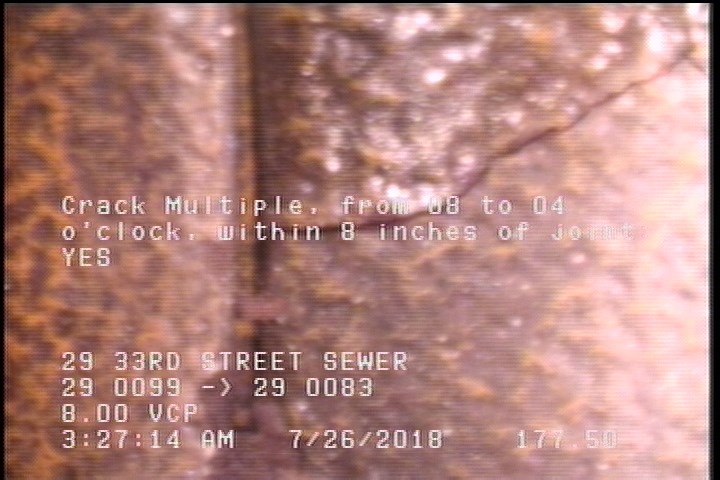

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    177.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P23882Work order 717885

Observations (16)

DistanceCodeObservation
74TFROOTS IN LATERAL
144.4TFROOTS IN LATERAL
221.8TFA—
229.3TFA—
0MWM—
177.5CM—
221.8TFA—
10.6CM—
124.4TFA—
249.2AMH29 0099
171.6TFC—
97.2TFDFRACTURE AT TAP
75.6TFROOTS IN LATERAL
0AMH29 0083
0MWL—
144.3CM—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-07-27T03:14:56-07:00
