Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 27, 2018, 09:01 AM

  • 29 0114_29 0113 _27072018_022132.mpg

Date
07/27/2018
W/O
717885
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00273
PipeID
P23901
Time
2:01 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5326
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_717885_TV29102_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0113
Downstream MH
29 0114
Dir. of Survey
Upstream
Length Surveyed
224.7 ft.
Total Length
224.7 ft.
Structural Index
3
Structural Quick
5132
Structural Rating
14
O&M Index
1
O&M Quick
1C00
O&M Rating
19
Overall Index
1
Overall Quick
—
Overall Rating
33
Pipe schematic from manhole 29 0113 to 29 0114
MH: 29 0113MH: 29 0114upstream0 ft. ACOM - Cleanout Mainline, Survey Ends - 29 01140 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"0 ft. JOM - Joint Offset Medium1.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"2.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"13.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"13.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"25.1 ft. MWLS - Water Level, Sag in pipe, 15 %of cross sectional area64.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"64.4 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"64.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"81.2 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish88.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"116.4 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES116.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"168 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"168.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"173 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Start178.5 ft. RFJ - Roots Fine Joint, from 11 to 01 o'clock, within 8 inches of joint: YES178.5 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES214.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"218.2 ft. B - Broken, from 08 to 05 o'clock, within 8 inches of joint: YES218.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"224.7 ft. MWL - Water Level, 5 %of cross sectional area224.7 ft. MWM - Water Mark, 5 %of cross sectional area224.7 ft. AMH - Downstream Manhole, Survey Begins - 29 0113

Observation photos (6)

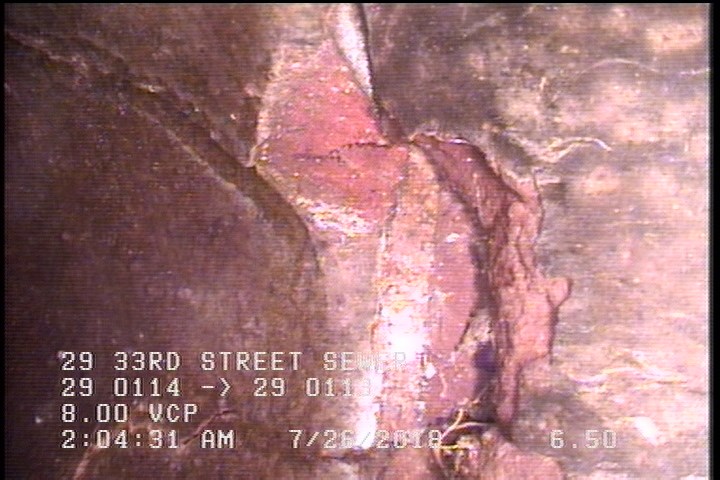

  • Broken, from 08 to 05 o'clock, within 8 inches of joint: YES

    6.5 ft. - Broken, from 08 to 05 o'clock, within 8 inches of joint: YES

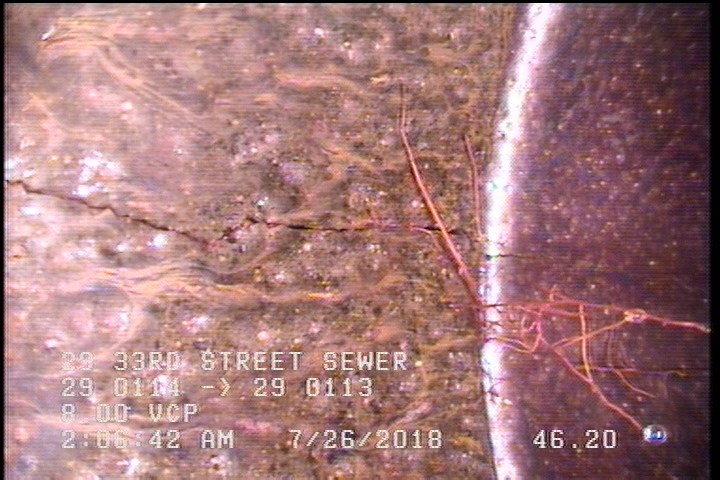

  • Roots Fine Joint, from 11 to 01 o'clock, within 8 inches of joint: YES

    46.2 ft. - Roots Fine Joint, from 11 to 01 o'clock, within 8 inches of joint: YES

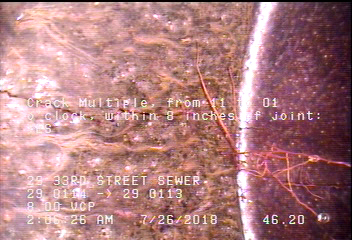

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    46.2 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

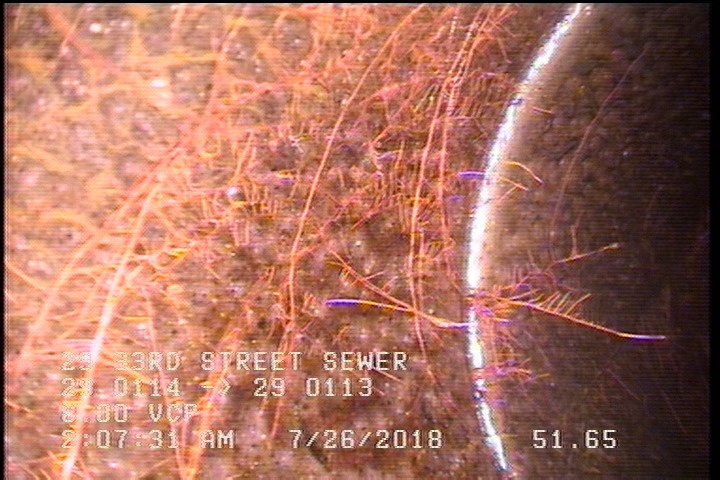

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    51.7 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

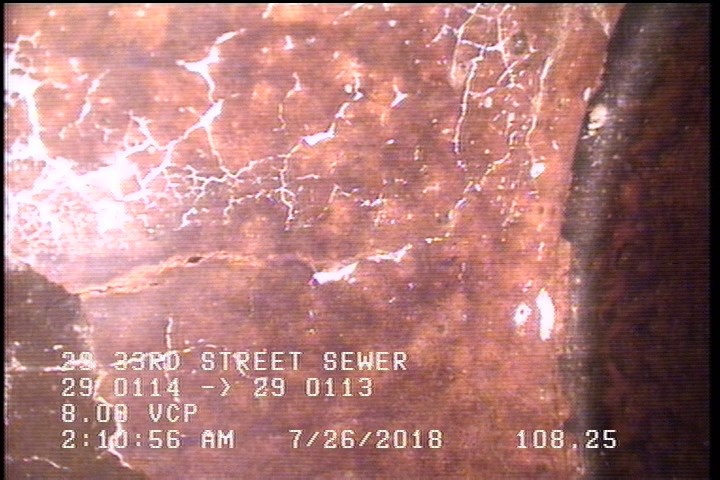

  • Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

    108.3 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

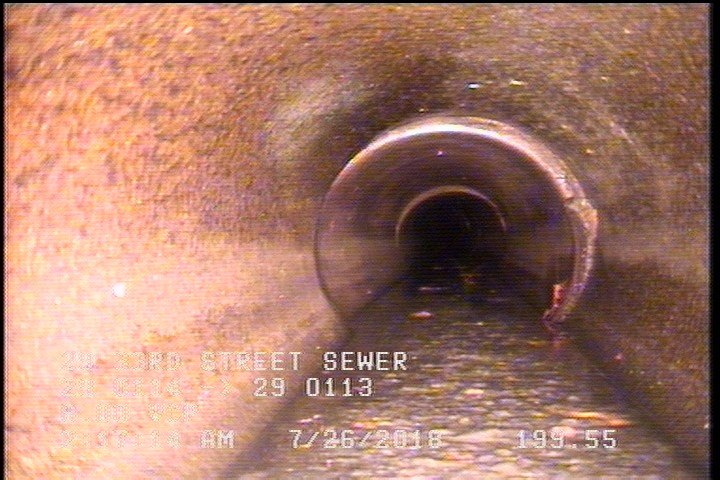

  • Water Level, Sag in pipe, 15 %of cross sectional area

    199.6 ft. - Water Level, Sag in pipe, 15 %of cross sectional area

All inspections of P23901Work order 717885

Observations (26)

DistanceCodeObservation
160.3TBA—
160.2TFA—
108.2TF—
0MWL—
51.7RFJ—
6TFA—
224.7ACOM29 0114
223.1TFC—
143.5RFJ—
0MWM—
224.7TFA—
46.2RFJ—
46.2CM—
6.5B—
222.6TFC—
224.7JOM—
55.8TFA—
108.3CM—
0AMH29 0113
210.9TFC—
160.5TFC—
136.5TFA—
211.5TFC—
56.7TFA—
10.3TFA—
199.6MWLS—

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2018-07-27T02:01:00-07:00
