Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 23, 2018, 10:16 AM

  • 05 1516_05 1515 _23072018_033108.mp4

Date
07/23/2018
W/O
717761
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00528
PipeID
P06738
Time
3:16 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5787
Sewer Name
05 TORRANCE EXTENSION TRUNK
City
TORRANCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
29
Purpose
Routine Assessment
Project
WO_717761_TV05210_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 1515
Downstream MH
05 1516
Dir. of Survey
Upstream
Length Surveyed
370.8 ft.
Total Length
370.8 ft.
Structural Index
3
Structural Quick
3C00
Structural Rating
63
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
63
Pipe schematic from manhole 05 1515 to 05 1516
MH: 05 1515MH: 05 1516upstream0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 05 151615.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"95.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start115.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"124.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES242.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"308.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES342.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"370.8 ft. AMH - Downstream Manhole, Survey Begins - 05 1515370.8 ft. MWM - Water Mark, 20 %of cross sectional area370.8 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (3)

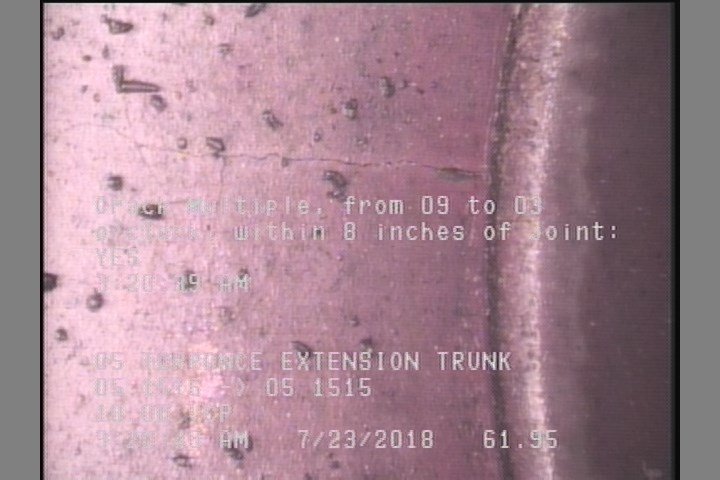

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    61.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

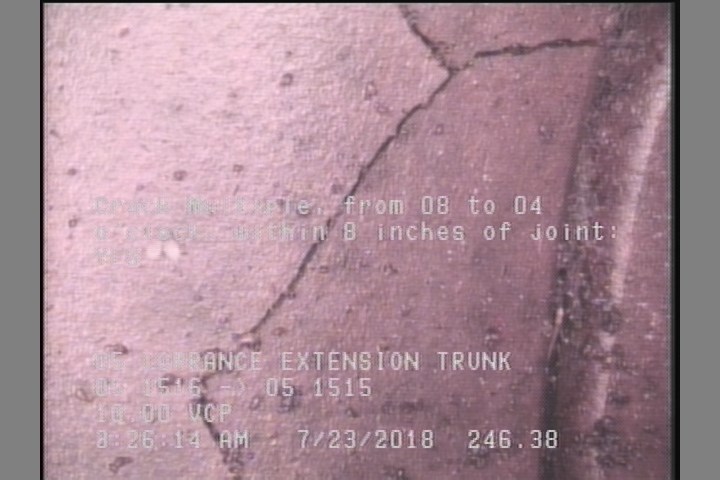

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    246.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

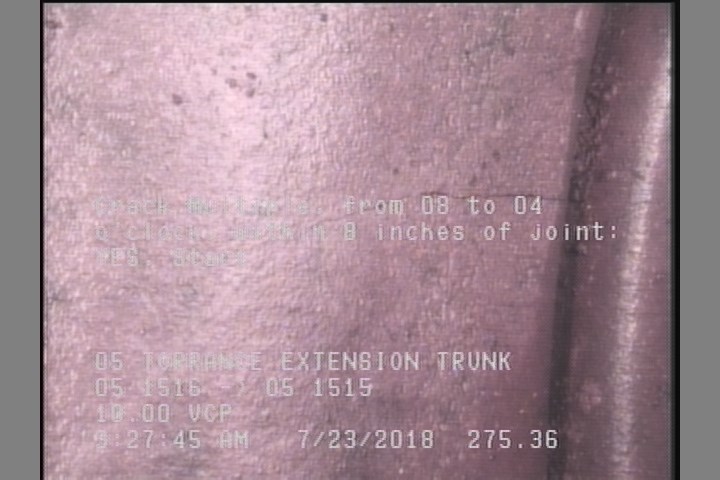

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    275.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06738Work order 717761

Observations (12)

DistanceCodeObservation
370.8CM—
128.6TFC—
355.4TF—
0AMH05 1515
255.2TFC—
275.4CM—
0MWM—
0MWL—
370.8AMH05 1516
61.9CM—
246.4CM—
28TFC—

Properties (4)

additional_info
SC359698
custom_field_two
3
customer
LACSD
datetime
2018-07-23T03:16:20-07:00
