Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 23, 2018, 08:31 AM

  • 05 1524_05 1523 _23072018_014729.mp4

Date
07/23/2018
W/O
717761
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00528
PipeID
P06746
Time
1:31 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5787
Sewer Name
05 TORRANCE EXTENSION TRUNK
City
TORRANCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
29
Purpose
Routine Assessment
Project
WO_717761_TV05210_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 1523
Downstream MH
05 1524
Dir. of Survey
Upstream
Length Surveyed
335.9 ft.
Total Length
335.9 ft.
Structural Index
3
Structural Quick
413L
Structural Rating
202
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
202
Pipe schematic from manhole 05 1523 to 05 1524
MH: 05 1523MH: 05 1524upstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 05 15247.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES70.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"134.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"184.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"235.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"272 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"305.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"332.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start335.9 ft. MWL - Water Level, 10 %of cross sectional area335.9 ft. MWM - Water Mark, 20 %of cross sectional area335.9 ft. AMH - Downstream Manhole, Survey Begins - 05 1523

Observation photos (2)

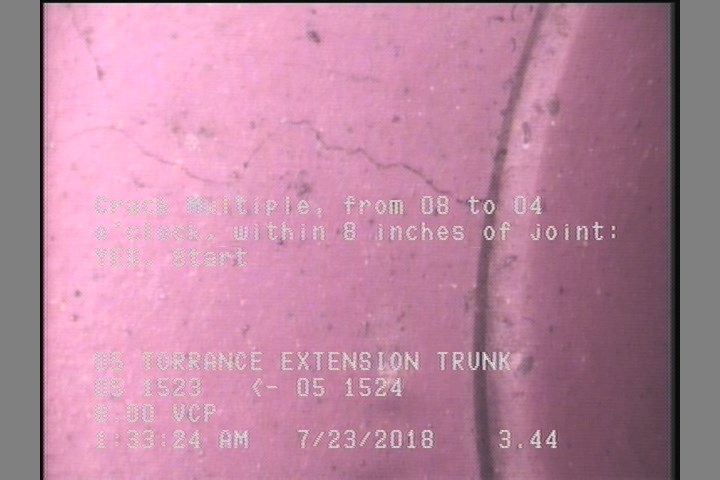

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    328 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P06746Work order 717761

Observations (14)

DistanceCodeObservation
0MWL—
335.9MGOCONNECTION AT MH 9 O'CLOCK
3.4CM—
0MWM—
151.4TF—
335.9CM—
335.9AMH05 1524
30.1TF—
265.1TFC—
0AMH05 1523
328FM—
63.9TF—
100.2TF—
201.2TF—

Properties (4)

additional_info
SC359698
custom_field_two
3
customer
LACSD
datetime
2018-07-23T01:31:07-07:00
