Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 09:46 AM

  • 29 0195A_29 0195 _25072018_033355.mpg

Date
07/25/2018
W/O
717713
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z01025
PipeID
P24094
Time
2:46 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5322
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_717713_TV29056_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0195
Downstream MH
29 0195A
Dir. of Survey
Upstream
Length Surveyed
300.1 ft.
Total Length
300.2 ft.
Structural Index
1
Structural Quick
2112
Structural Rating
4
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 29 0195 to 29 0195A
MH: 29 0195MH: 29 0195Aupstream0 ft. ACOM - Cleanout Mainline, Survey Ends - 29 0195A3.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"5.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"51.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"54 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"96.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"105.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"114.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"115 ft. JOM - Joint Offset Medium153.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"155.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"180.8 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES204.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"206 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: YES207.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"224.6 ft. JSM - Joint Separated Medium232 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"246.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"248.3 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES258.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"300.2 ft. MWL - Water Level, 5 %of cross sectional area300.2 ft. MWM - Water Mark, 5 %of cross sectional area300.2 ft. AMH - Downstream Manhole, Survey Begins - 29 0195

Observation photos (3)

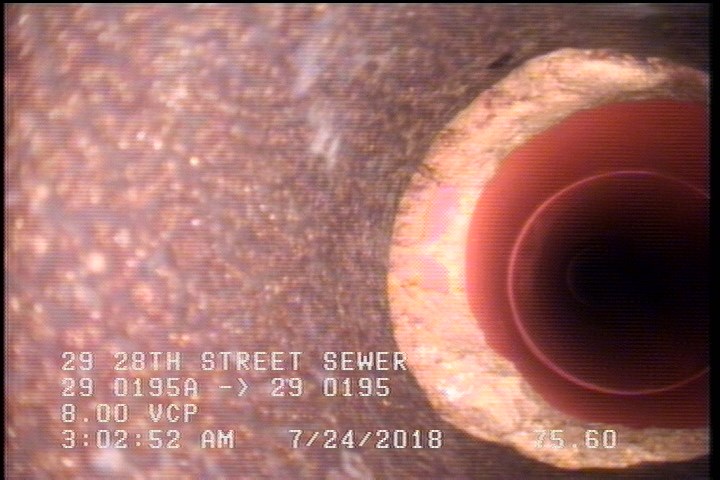

  • Joint Separated Medium

    75.6 ft. - Joint Separated Medium

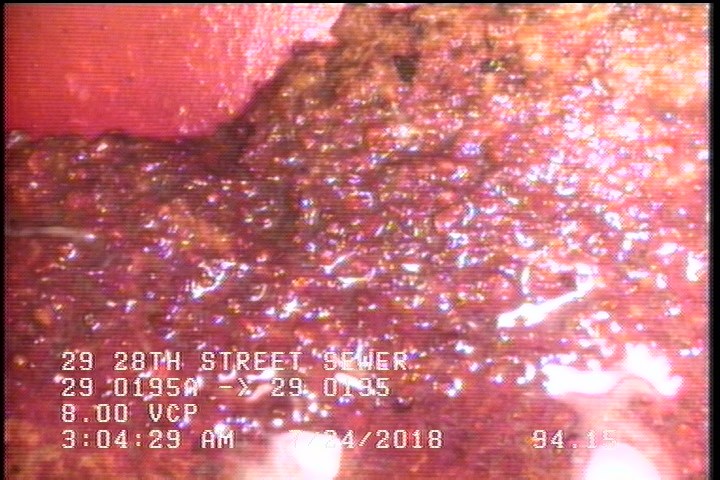

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: YES

    94.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: YES

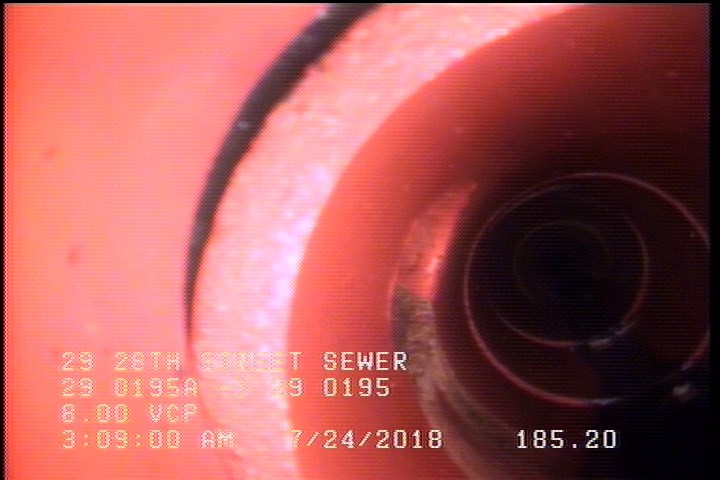

  • Joint Offset Medium

    185.2 ft. - Joint Offset Medium

All inspections of P24094Work order 717713

Observations (23)

DistanceCodeObservation
144.4TFA—
95.4TFA—
186TF—
294.3TFC—
146.9TFC—
51.9CL—
0MWL—
94.2DAE—
68.2TFC—
53.6TFA—
185.2JOM—
246.2TFA—
300.2ACOM29 0195A
92.9TF—
248.9TFC—
203.9TFA—
41.9TFC—
119.4DAE—
195.1TFC—
297TF—
75.6JSM—
0MWM—
0AMH29 0195

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-07-25T02:46:10-07:00
