Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 26, 2018, 04:46 AM

  • 29 0197_29 0196A _25072018_215955.mpg

Date
07/25/2018
W/O
717713
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z01025
PipeID
P24514
Time
9:46 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5323
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_717713_TV29056_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0197
Downstream MH
29 0196A
Dir. of Survey
Downstream
Length Surveyed
235 ft.
Total Length
235 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 29 0197 to 29 0196A
MH: 29 0197MH: 29 0196Adownstream0 ft. MWL - Water Level, 0 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 019788.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"97.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"201.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"203.4 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES204 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"235 ft. MGO - General Observation - AGGREGATE PROJECTING IN MH AT CHANNEL235 ft. AMH - Downstream Manhole, Survey Ends - 29 0196A

Observation photos (2)

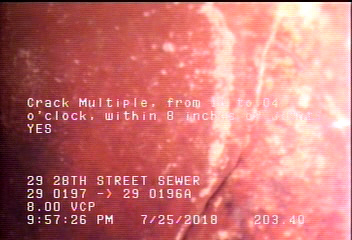

  • Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

    203.4 ft. - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

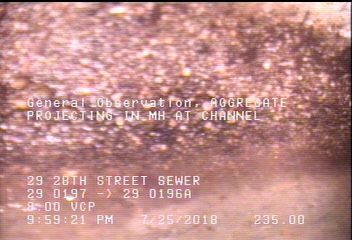

  • General Observation - AGGREGATE PROJECTING IN MH AT CHANNEL

    235 ft. - General Observation - AGGREGATE PROJECTING IN MH AT CHANNEL

All inspections of P24514Work order 717713

Observations (10)

DistanceCodeObservation
204TFA—
88.7TF—
0MWL—
0MWM—
235MGOAGGREGATE PROJECTING IN MH AT CHANNEL
0AMH29 0197
97.3TF—
201.3TF—
203.4CM—
235AMH29 0196A

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-07-25T21:46:45-07:00
