Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 10:03 PM

  • 29 0190_29 0189 _25072018_013835.mpg

Date
07/25/2018
W/O
717713
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z01025
PipeID
P24087
Time
3:03 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5322
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_717713_TV29056_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0190
Downstream MH
29 0189
Dir. of Survey
Downstream
Length Surveyed
317 ft.
Total Length
317 ft.
Structural Index
3
Structural Quick
4237
Structural Rating
29
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 29 0190 to 29 0189
MH: 29 0190MH: 29 0189downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 01900 ft. MWM - Water Mark, 5 %of cross sectional area40.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES46.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES71.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"74.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"74.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"77.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"112.3 ft. FM - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES128 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"130.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"134.8 ft. CM - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES147.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES178 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"181 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"197 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES215.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES224 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES228.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"231.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"278.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"280.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"303.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES304.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"317 ft. AMH - Downstream Manhole, Survey Ends - 29 0189

Observation photos (9)

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    40.8 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    46.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    112.3 ft. - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    134.8 ft. - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    147.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    197 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    215.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

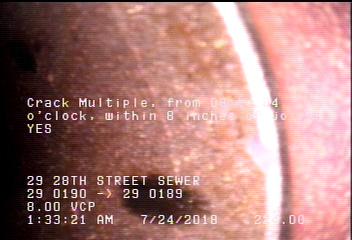

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    224 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    303.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P24087Work order 717713

Observations (26)

DistanceCodeObservation
74.7TFA—
77.3TFC—
181TFC—
178TFC—
0MWL—
128TFA—
278.5TFC—
304.2TFA—
130.3TFA—
224CM—
147.6CM—
40.8FM—
46.6CM—
112.3FM—
317AMH29 0189
197CM—
303.2CM—
280.8TFC—
71.4TBA—
228.4TFC—
0AMH29 0190
134.8CM—
231.4TFC—
0MWM—
74.8TF—
215.4CM—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-07-25T15:03:28-07:00
