Wastewater/Activity/PacpInspection/1.0Jul 20, 2018, 09:54 AM
16 0417_16 0416 _20072018_031817.mp4
- Date
- 07/20/2018
- W/O
- 718151
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00638
- PipeID
- P13466
- Time
- 2:54 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5875
- Sewer Name
- 16 ALHAMBRA ROAD TRUNK
- City
- SOUTH PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_718151_TV16117_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 16 0417
- Downstream MH
- 16 0416
- Dir. of Survey
- Downstream
- Length Surveyed
- 451.8 ft.
- Total Length
- 451.8 ft.
- Structural Index
- 3
- Structural Quick
- 4133
- Structural Rating
- 13
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (5)

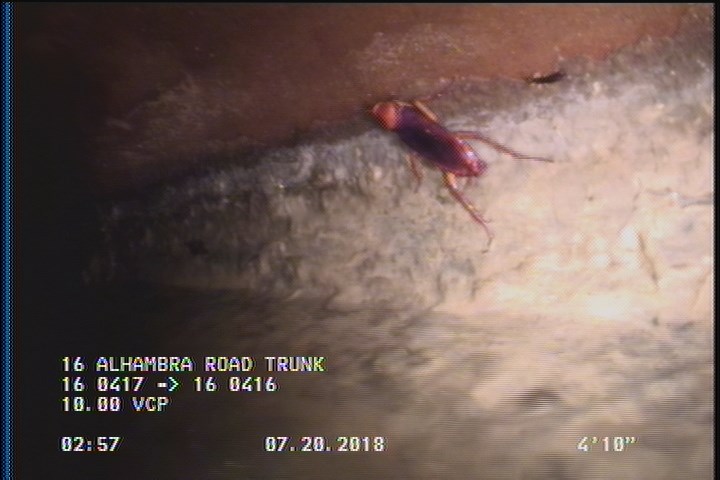

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

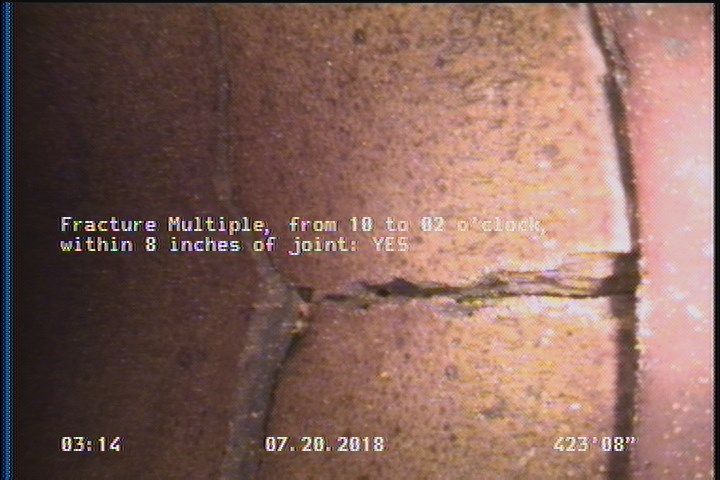

423.7 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

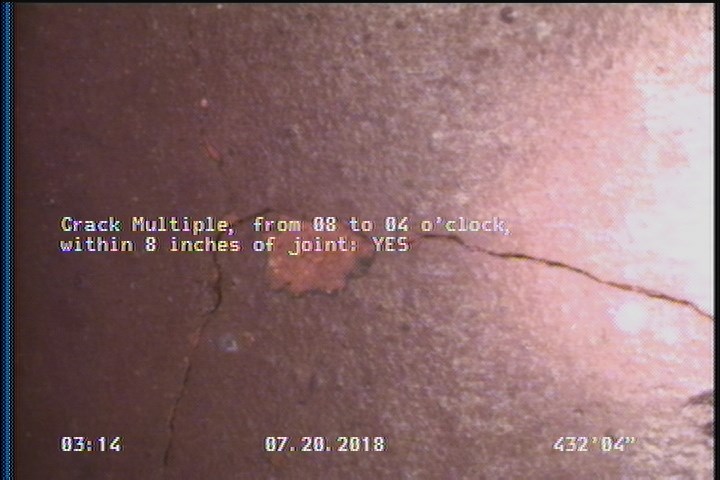

432.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

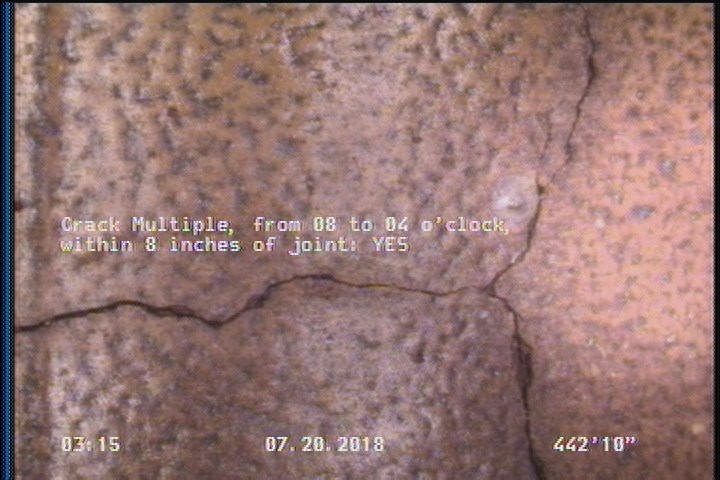

442.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

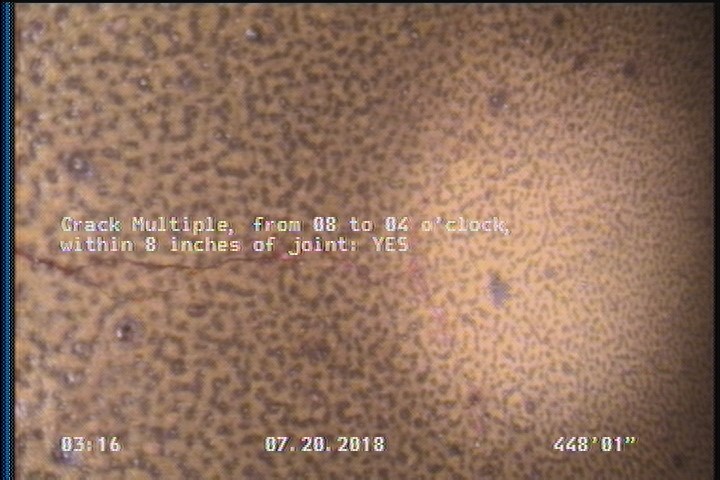

448.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 451.8 | AMH | 16 0416 |
| 0 | MWL | — |
| 15.5 | TBA | — |
| 451.8 | DAGS | — |
| 228.9 | TFA | — |
| 22 | DSZ | DEBRIS |
| 423.7 | FM | — |
| 448.1 | CM | — |
| 2 | DAGS | — |
| 442.8 | CM | — |
| 451.8 | DSZ | — |
| 327.9 | TFA | — |
| 77 | TB | — |
| 0 | MWM | — |
| 127.6 | TFA | — |
| 432.3 | CM | — |
| 0 | AMH | 16 0417 |
Properties (4)
- additional_info
- SC359743
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-20T02:54:54-07:00
