Wastewater/Activity/PacpInspection/1.0Jul 20, 2018, 07:21 AM
B 0282_B 0281 _20072018_010404.mp4
- Date
- 07/20/2018
- W/O
- 717879
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00082
- PipeID
- P08772
- Time
- 12:21 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5874
- Sewer Name
- B JOINT OUTFALL B - UNIT 1H
- City
- ROSEMEAD
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_717879_TV15213_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- B 0282
- Downstream MH
- B 0281
- Dir. of Survey
- Downstream
- Length Surveyed
- 461.3 ft.
- Total Length
- 461.3 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 3
- O&M Quick
- 4131
- O&M Rating
- 9
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

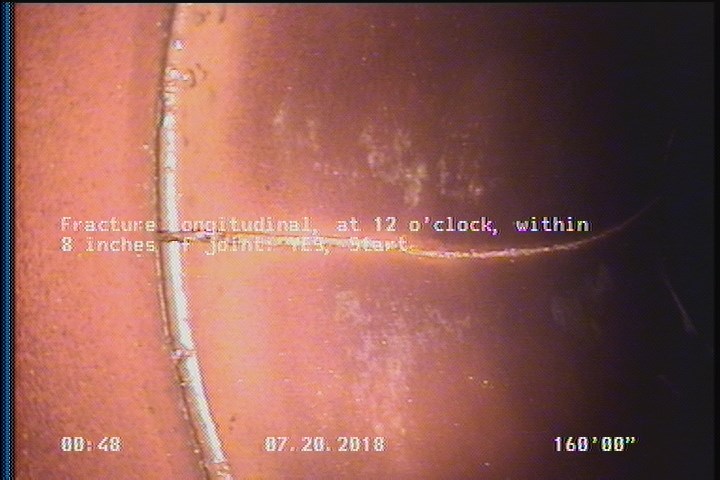

160 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

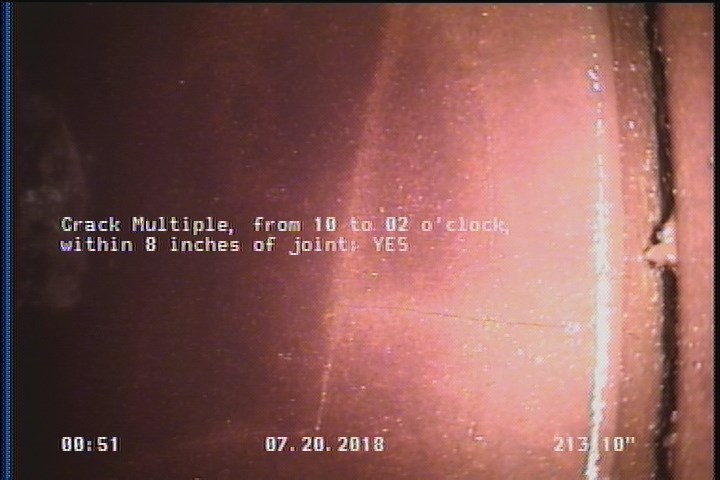

213.9 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

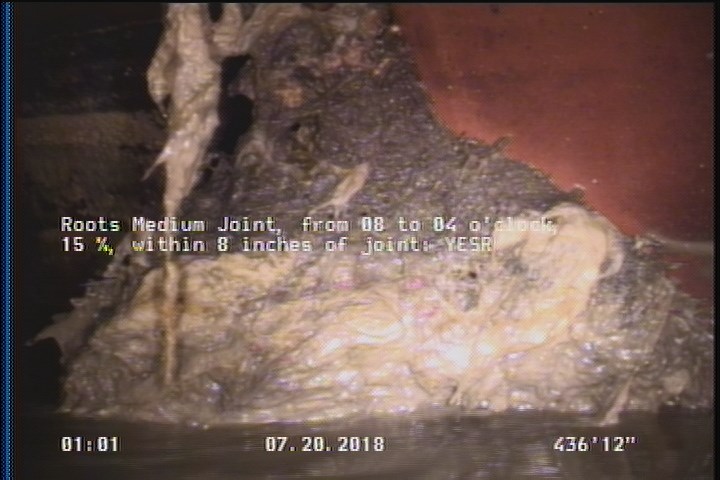

437 ft. - Roots Medium Joint, from 08 to 04 o'clock, 15 %, within 8 inches of joint: YESR
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 461.3 | AMH | B 0281 |
| 0 | MWM | — |
| 461.3 | MGO | ROACHES IN MH |
| 461.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | B 0282 |
| 437 | RMJ | — |
| 378.9 | FL | — |
| 2 | DAGS | — |
| 334 | TBA | — |
| 213.9 | CM | — |
| 160 | FL | — |
| 0 | MWL | — |
| 461.3 | DAGS | — |
Properties (4)
- additional_info
- SC359742
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-20T00:21:24-07:00
