Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 3, 2018, 08:35 AM

  • H 0730_H 0729 _03072018_014223.mp4

Date
07/03/2018
W/O
712465
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00941
PipeID
P11139
Time
1:35 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5764
Sewer Name
H JOINT OUTFALL H - UNIT 9B
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
30
Purpose
Routine Assessment
Project
WO_712465_TV22077_JUL2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
25 in.
Width
25 in.
Upstream MH
H 0729
Downstream MH
H 0730
Dir. of Survey
Upstream
Length Surveyed
101.7 ft.
Total Length
101.7 ft.
Structural Index
3
Structural Quick
3C00
Structural Rating
60
O&M Index
3
O&M Quick
3B00
O&M Rating
51
Overall Index
3
Overall Quick
—
Overall Rating
111
Pipe schematic from manhole H 0729 to H 0730
MH: H 0729MH: H 0730upstream0 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish0 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish0 ft. MSA - Survey Abandoned - REVERSAL COMPLETED83.9 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start99.6 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start99.6 ft. MGO - General Observation - MAG COAT101.7 ft. AMH - Downstream Manhole, Survey Begins - H 0729101.7 ft. MWL - Water Level, 15 %of cross sectional area101.7 ft. MWM - Water Mark, 25 %of cross sectional area101.7 ft. MGO - Reversal Inspection

Observation photos (2)

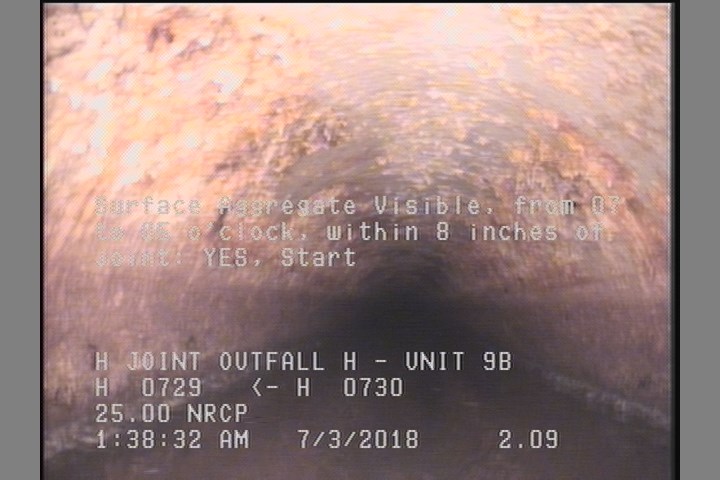

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

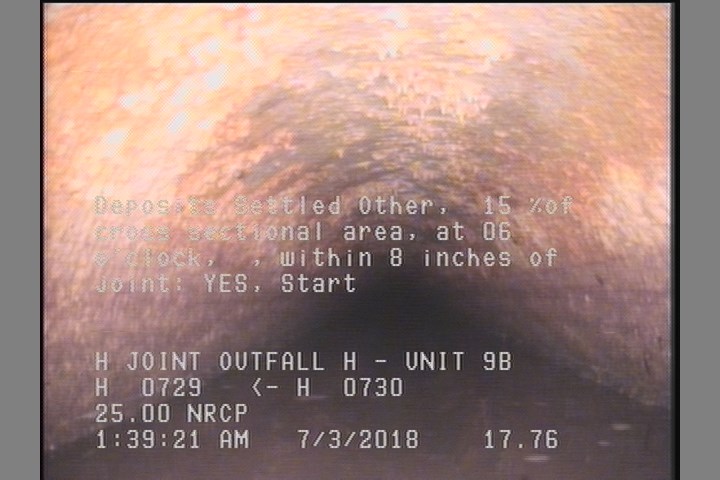

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    17.8 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

All inspections of P11139Work order 712465

Observations (10)

DistanceCodeObservation
0AMHH 0729
0MWL—
2.1SAV—
17.8DSZ—
2.1MGOMAG COAT
0MWM—
101.7SAV—
0MGO—
101.7DSZ—
101.7MSAREVERSAL COMPLETED

Properties (4)

additional_info
SC359673
custom_field_two
3
customer
LACSD
datetime
2018-07-03T01:35:43-07:00
