Wastewater/Activity/PacpInspection/1.0Jul 3, 2018, 10:09 AM
H 0727_H 0726 _03072018_033229.mp4
- Date
- 07/03/2018
- W/O
- 712465
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00941
- PipeID
- P11136
- Time
- 3:09 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5764
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_712465_TV22077_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 28 in.
- Width
- 28 in.
- Upstream MH
- H 0727
- Downstream MH
- H 0726
- Dir. of Survey
- Downstream
- Length Surveyed
- 815.8 ft.
- Total Length
- 815.8 ft.
- Structural Index
- 3
- Structural Quick
- 3`00
- Structural Rating
- 489
- O&M Index
- 3
- O&M Quick
- 3_00
- O&M Rating
- 480
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 969
Observation photos (2)

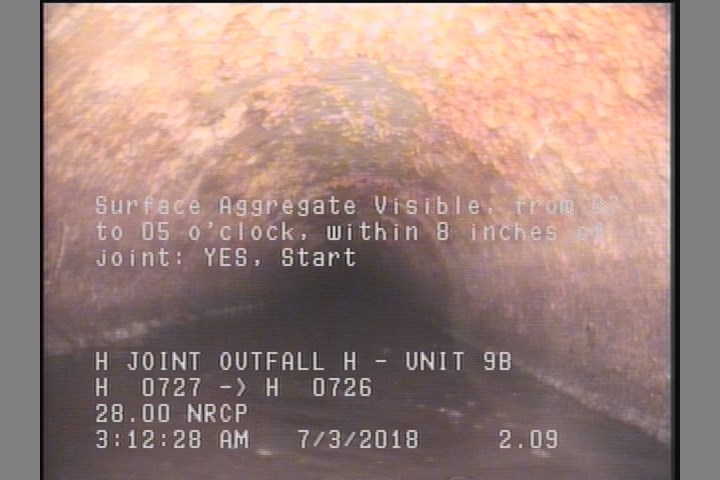

2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

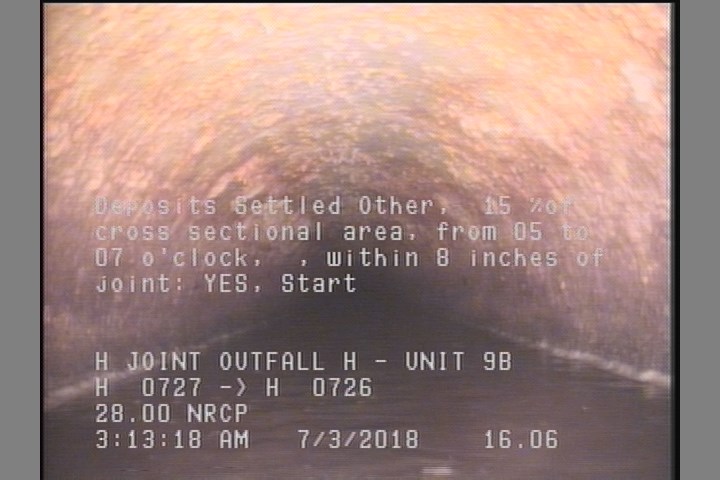

16.1 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 815.8 | SAV | — |
| 0 | MWM | — |
| 2.1 | MGO | MAG COAT |
| 0 | AMH | H 0727 |
| 0 | MWL | — |
| 815.8 | AMH | H 0726 |
| 815.8 | DSZ | — |
| 2.1 | SAV | — |
| 16.1 | DSZ | — |
Properties (4)
- additional_info
- SC359673
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-03T03:09:39-07:00
