Wastewater/Activity/PacpInspection/1.0Jul 6, 2018, 07:35 AM
H 0721_H 0720 _06072018_005205.mp4
- Date
- 07/06/2018
- W/O
- 712465
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00941
- PipeID
- P11130
- Time
- 12:35 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5765
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_712465_TV22077_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0721
- Downstream MH
- H 0720
- Dir. of Survey
- Downstream
- Length Surveyed
- 548.4 ft.
- Total Length
- 548.4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 3I00
- O&M Rating
- 144
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 147
Observation photos (2)

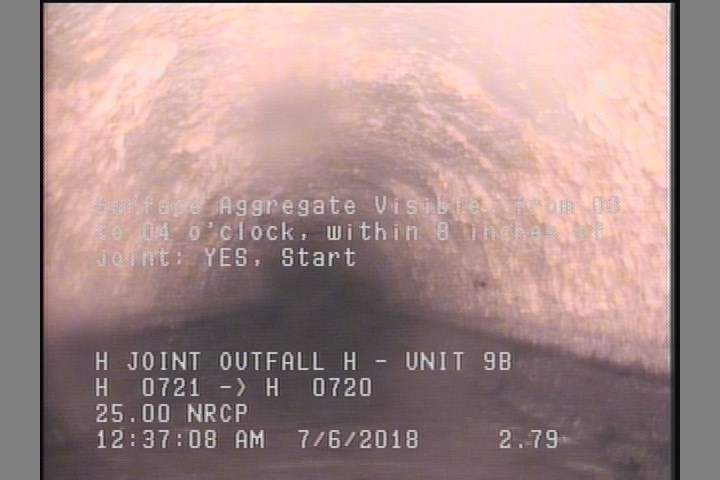

2.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

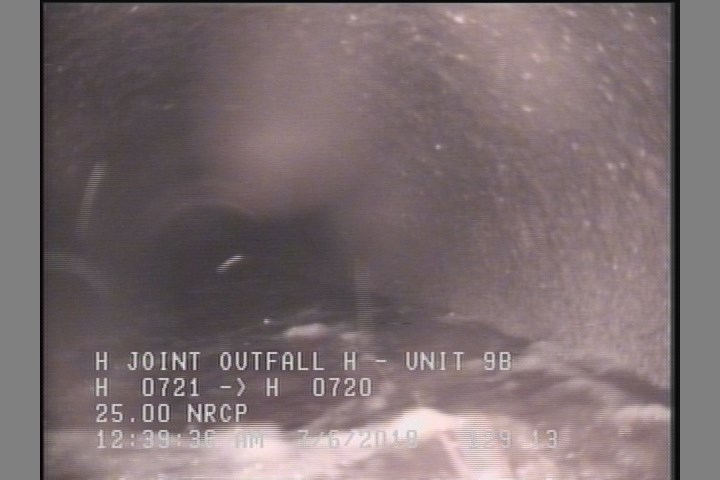

127.1 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2.8 | MGO | MAG COAT |
| 0 | MWM | — |
| 2.8 | SAV | — |
| 127.1 | DSZ | — |
| 367 | DSZ | — |
| 0 | MWL | — |
| 548.4 | SAV | — |
| 548.4 | AMH | H 0720 |
| 0 | AMH | H 0721 |
Properties (4)
- additional_info
- SC359674
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-06T00:35:36-07:00
